Home >> Mazda Truck >> 2003 >> B2300 2WD L4-2.3L VIN D >> Repair and Diagnosis >> Lighting and Horns >> Horn >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Test 1

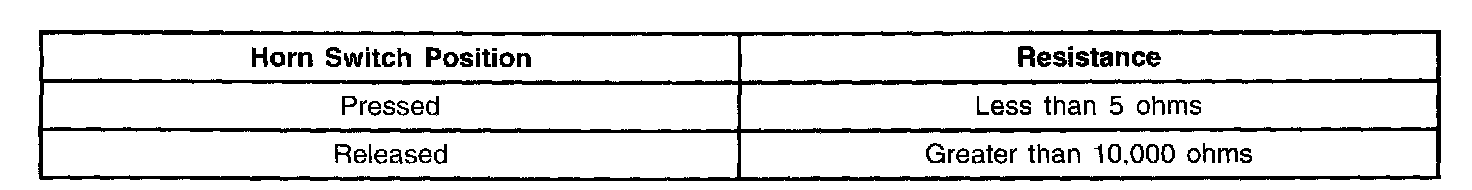

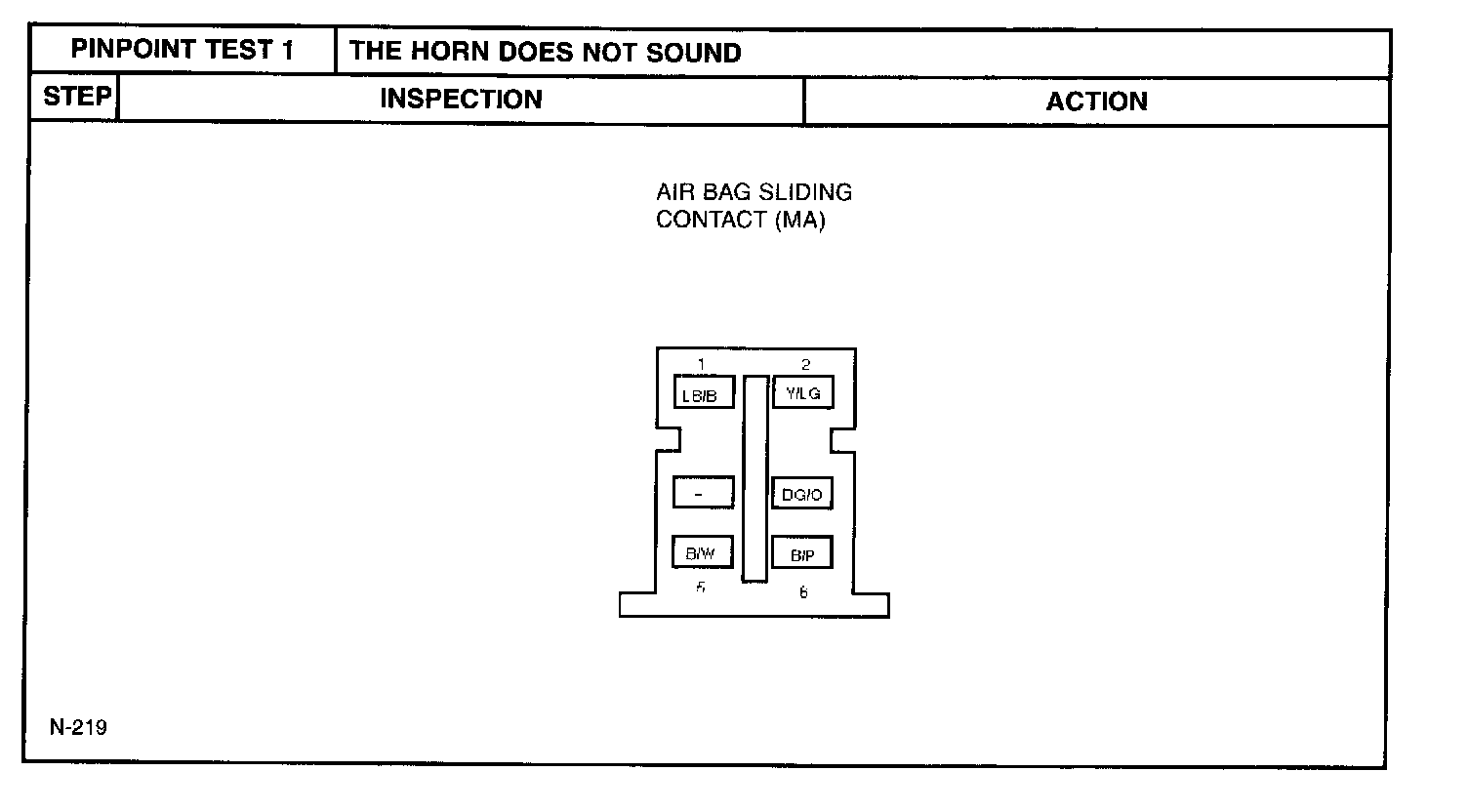

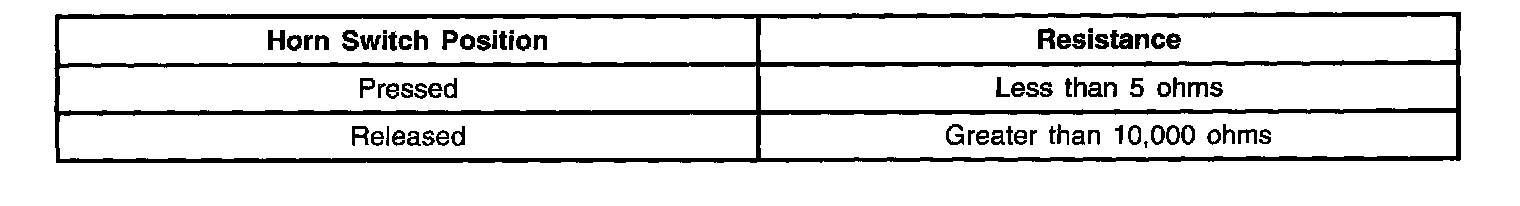

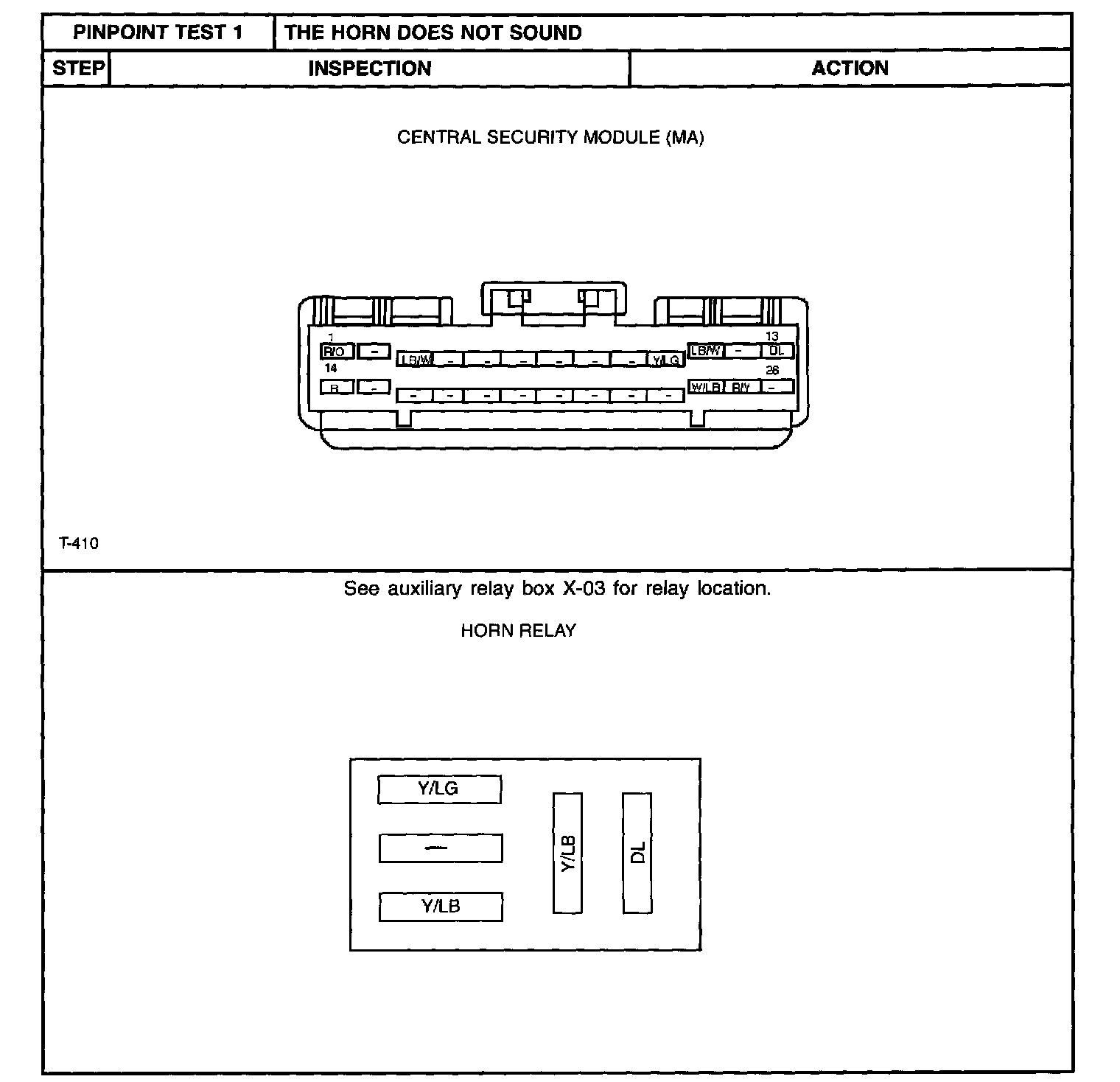

Pinpoint Test 1

Step 1 - 5:

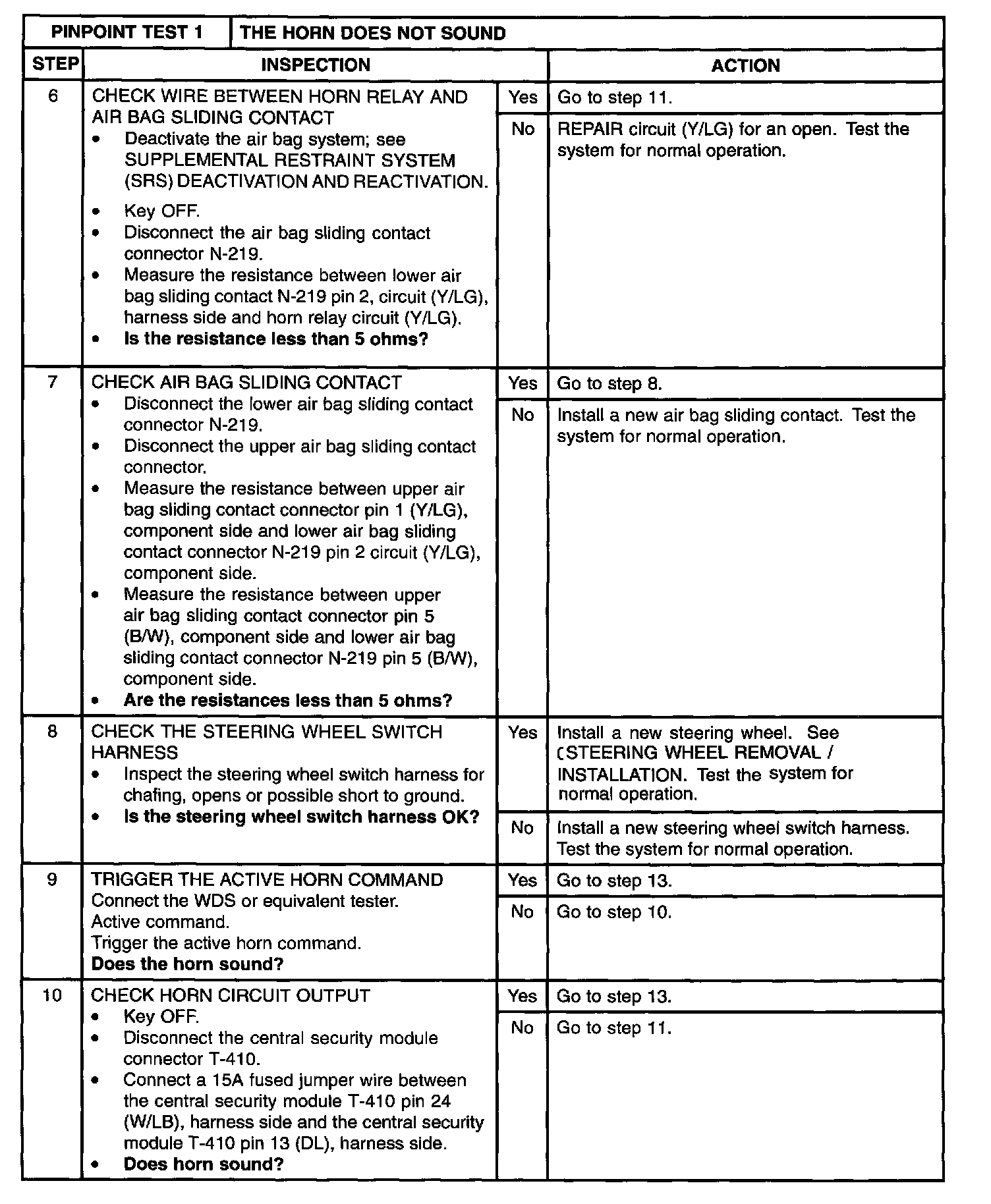

Step 5 - 10:

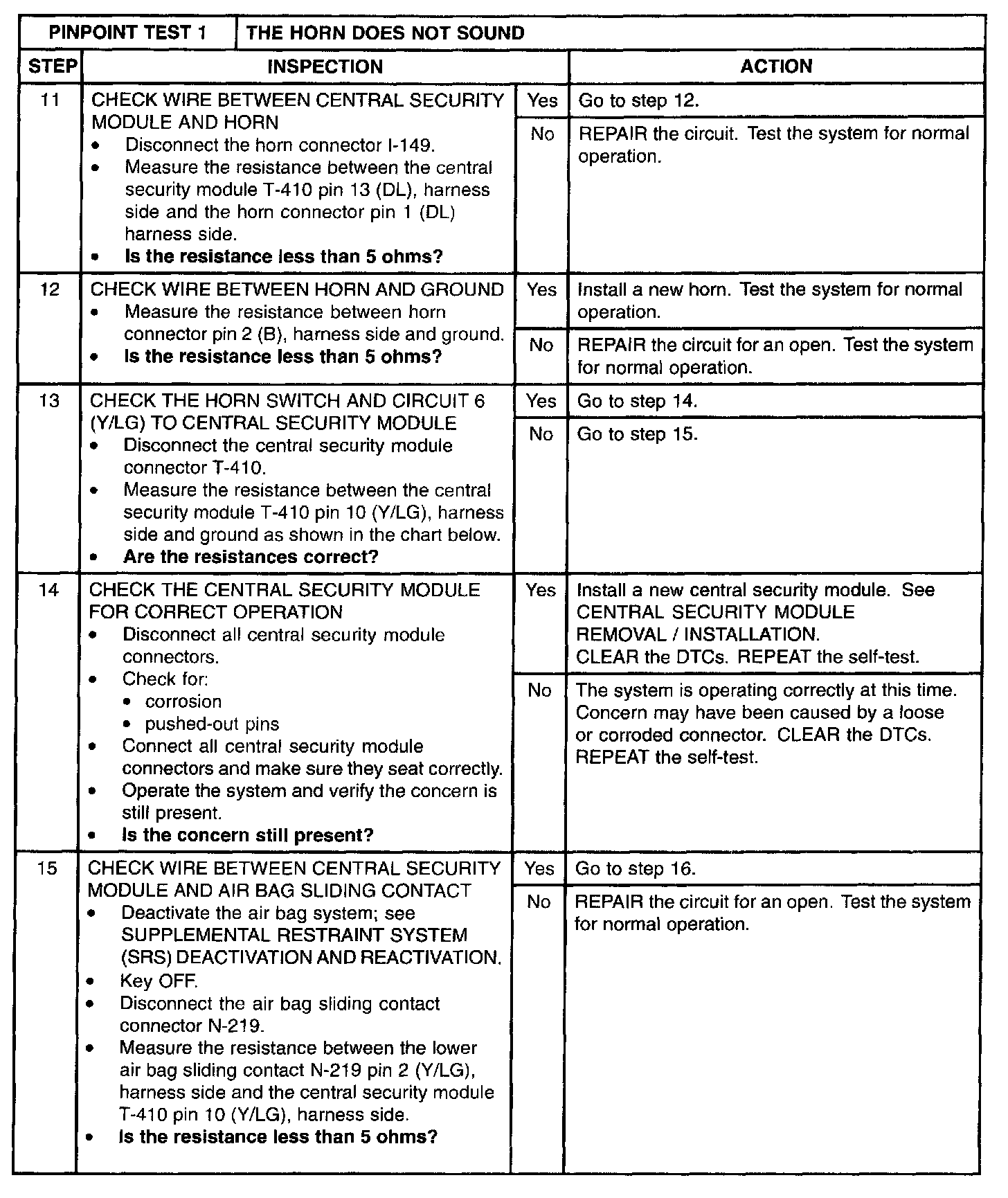

Step 11 - 15:

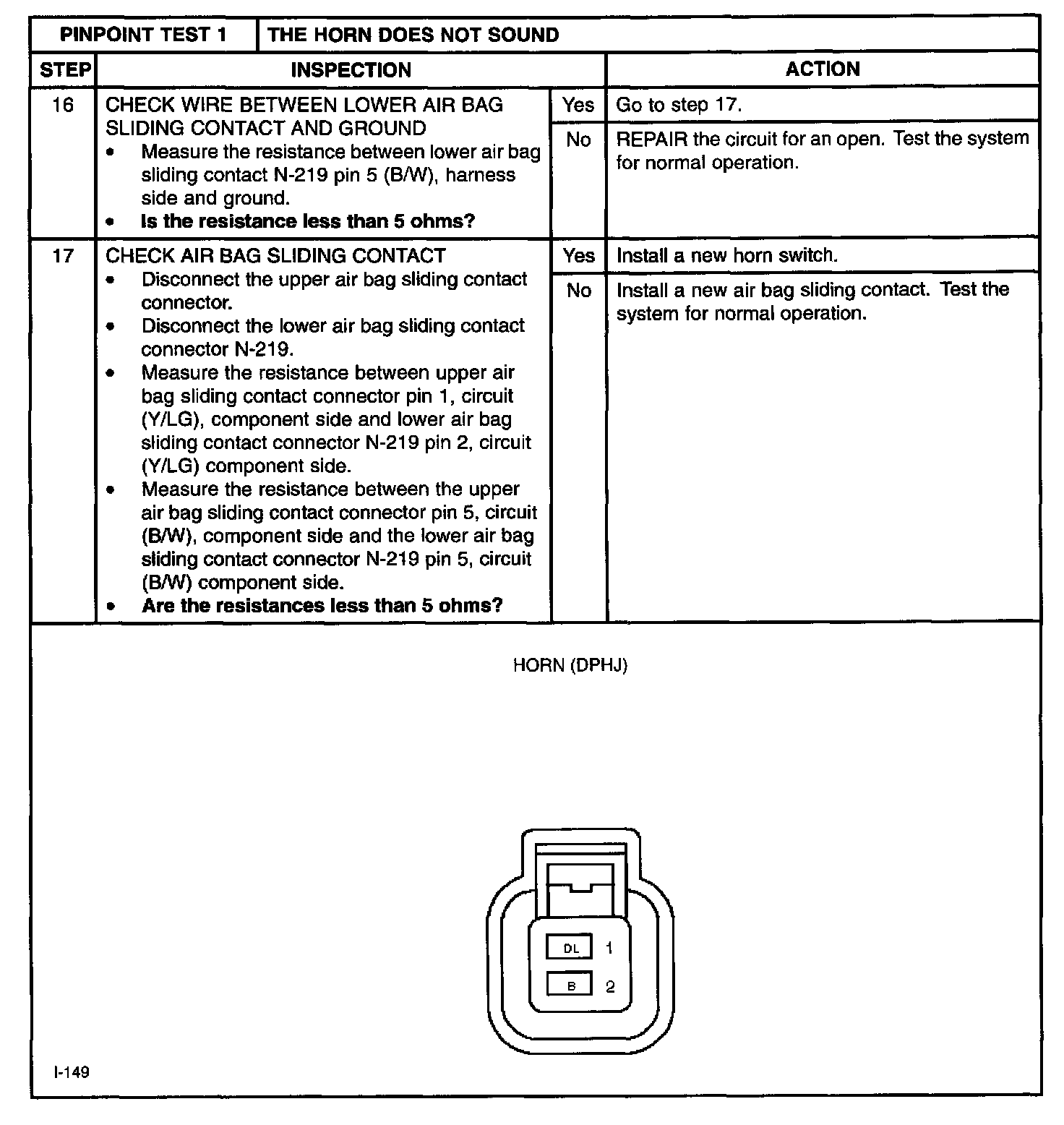

Step 16 - 17:
