Headlamp Switch: Service and Repair

MAIN LIGHT SWITCH REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove instrument cluster finish panel.

3. Pull off and remove the main light switch knob.

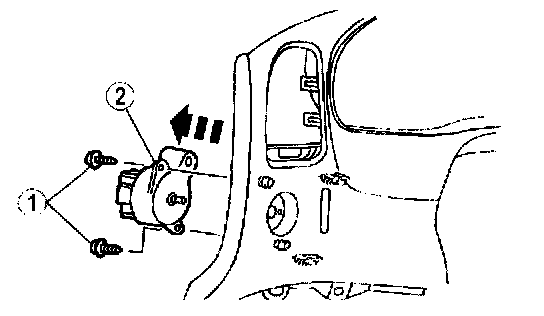

4. Remove the main light switch.
1. Remove the screws.
2. Remove the main light switch.

5. Install in reverse order of removal.

Tightening torque
2 - 3 N.m {20 - 31 kgf.cm, 18 - 26 in.lbf}
