Fog/Driving Lamp: Service and Repair

FOG LAMP ASSEMBLY REMOVAL/INSTALLATION

1. Remove the front bumper valance panel.

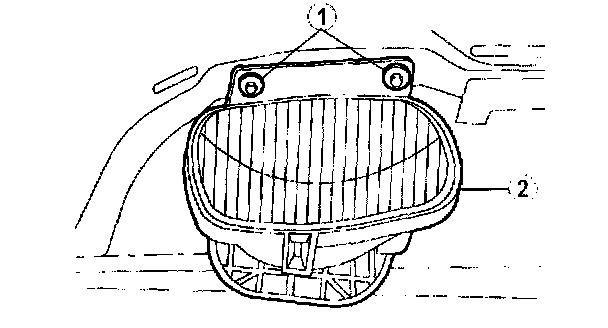

2. Remove the fog lamp assembly.
1. Remove the bolts.
2. Remove the fog lamp assembly.

3. To install, reverse the removal procedure.

Tightening torque
4 - 6 N.m {41 - 61 kgf.cm, 36 - 53 in.lbf}
