Fog/Driving Lamp Switch: Service and Repair

FOG LAMP SWITCH REMOVAL/INSTALLATION




1. Pull out the center trim finish panel (1).
2. Disconnect the radio connectors (2) from the center trim finish panel (1).

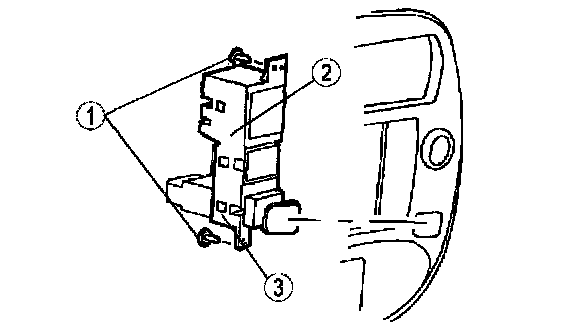

3. Remove the screws (1).
4. Remove the switch bracket (2).
5. Remove the fog lamp switch (3).
6. Install in reverse order of removal.

Tightening torque
2 - 3 N.m {20 - 31 kgf.cm, 18 - 26 in.lbf}
