Center Mounted Brake Lamp: Service and Repair

HIGH MOUNT LAMP ASSEMBLY REMOVAL/INSTALLATION

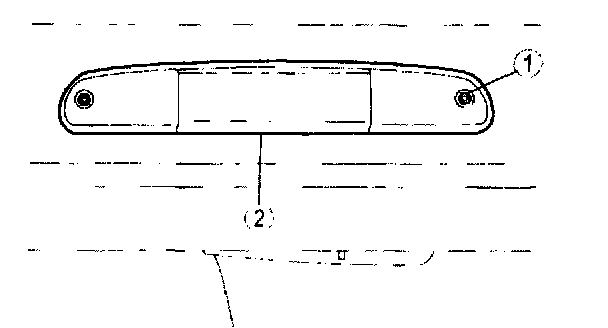

1. Remove the screws and pull out the high mount

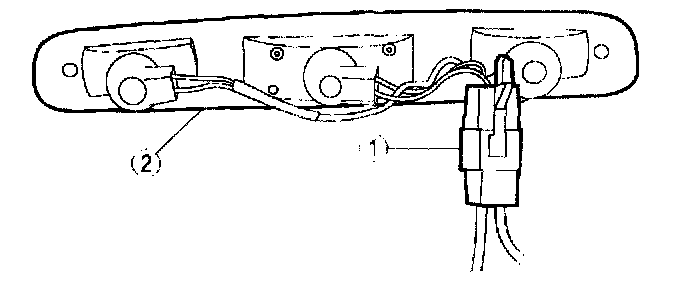

2. Disconnect the connector.




3. Remove the high mount lamp.
4. Install in reverse order of removal.

Tightening torque
1.7 - 2.1 N.m {17.3 - 21 kgf.cm, 15 - 18 in.lbf}
