Windshield Defroster and Side Window Demister Nozzles

WINDSHIELD DEFROSTER AND SIDE WINDOW DEMISTER NOZZLES REMOVAL/INSTALLATION

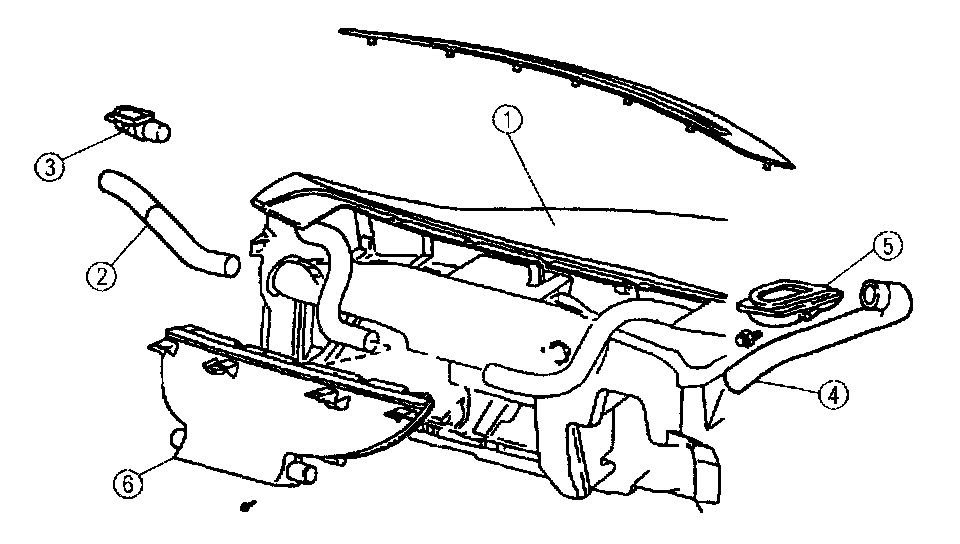

1. Remove the instrument panel (1).

2. Remove the two screws and remove the LH side window demister hose (2) and duct (3)

Tightening Torque
2 - 3 N.m {20 - 30 kgf.cm, 18 - 26 in.lbf}.

3. Remove the two screws and remove the RH side window demister hose (4) and duct (5).

Tightening Torque
2 - 3 N.m {20 - 30 kgf.cm, 18 - 26 in.lbf}.

4. Remove the screws and remove the windshield defroster hose nozzle (6).

Tightening Torque
2 - 3 N.m {20 - 30 kgf.cm, 18 - 26 in.lbf}.

5. Install in reverse order of removal.
