Water Pump: Service and Repair

WATER PUMP REMOVAL / INSTALLATION-2.3L
1. Drain the cooling system.
2. Remove the drive belt.

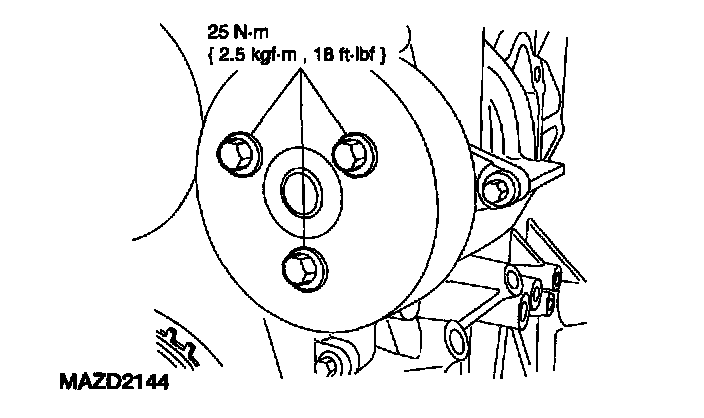

3. Remove the bolts and the water pump pulley.





4. Remove the bolts and the water pump.





Note:

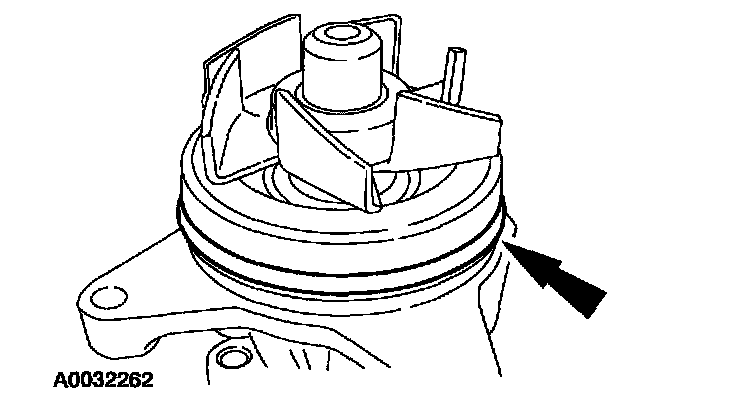

^ Lubricate the water pump O-ring with clean engine coolant.

5. To install, reverse the removal procedure.
