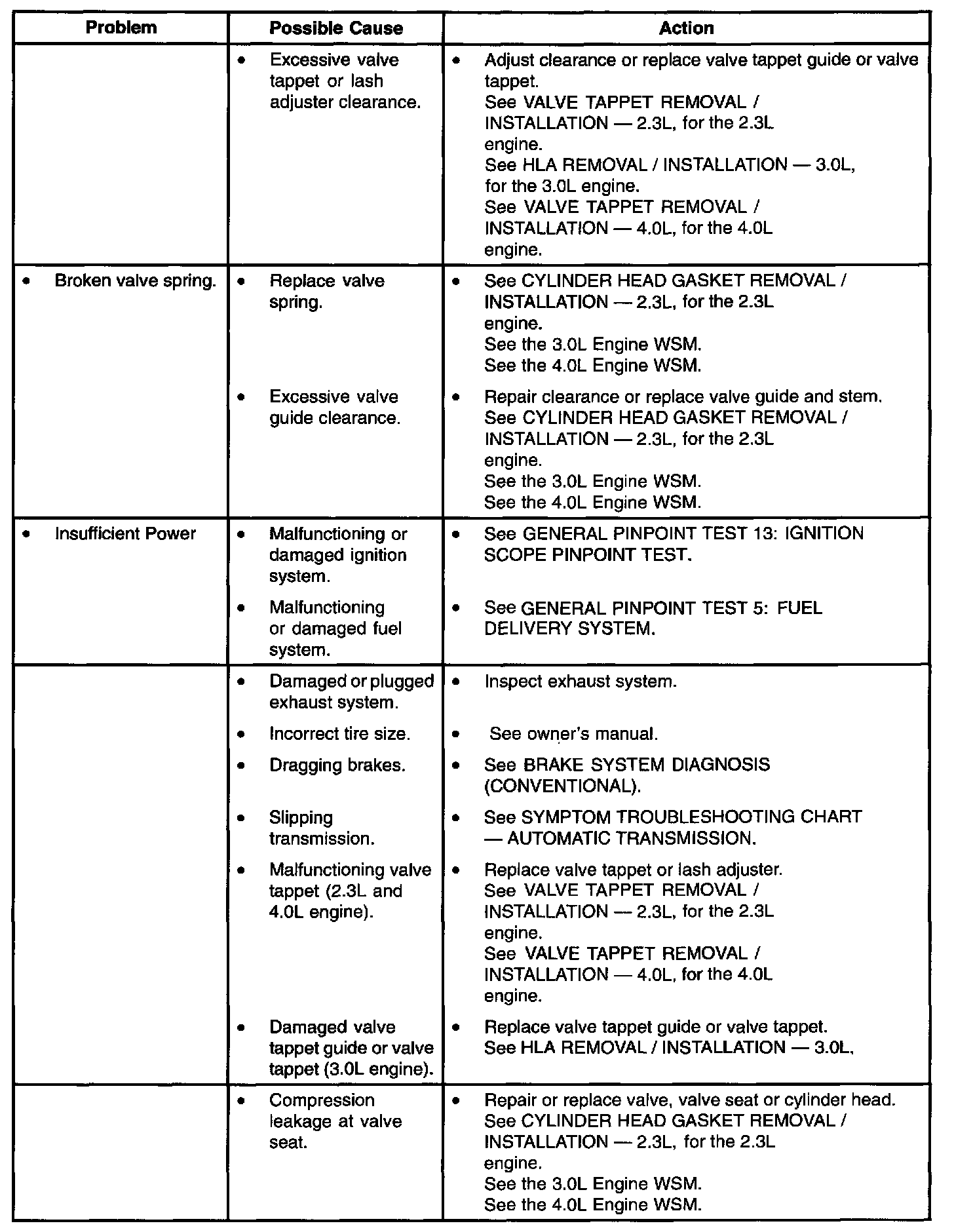

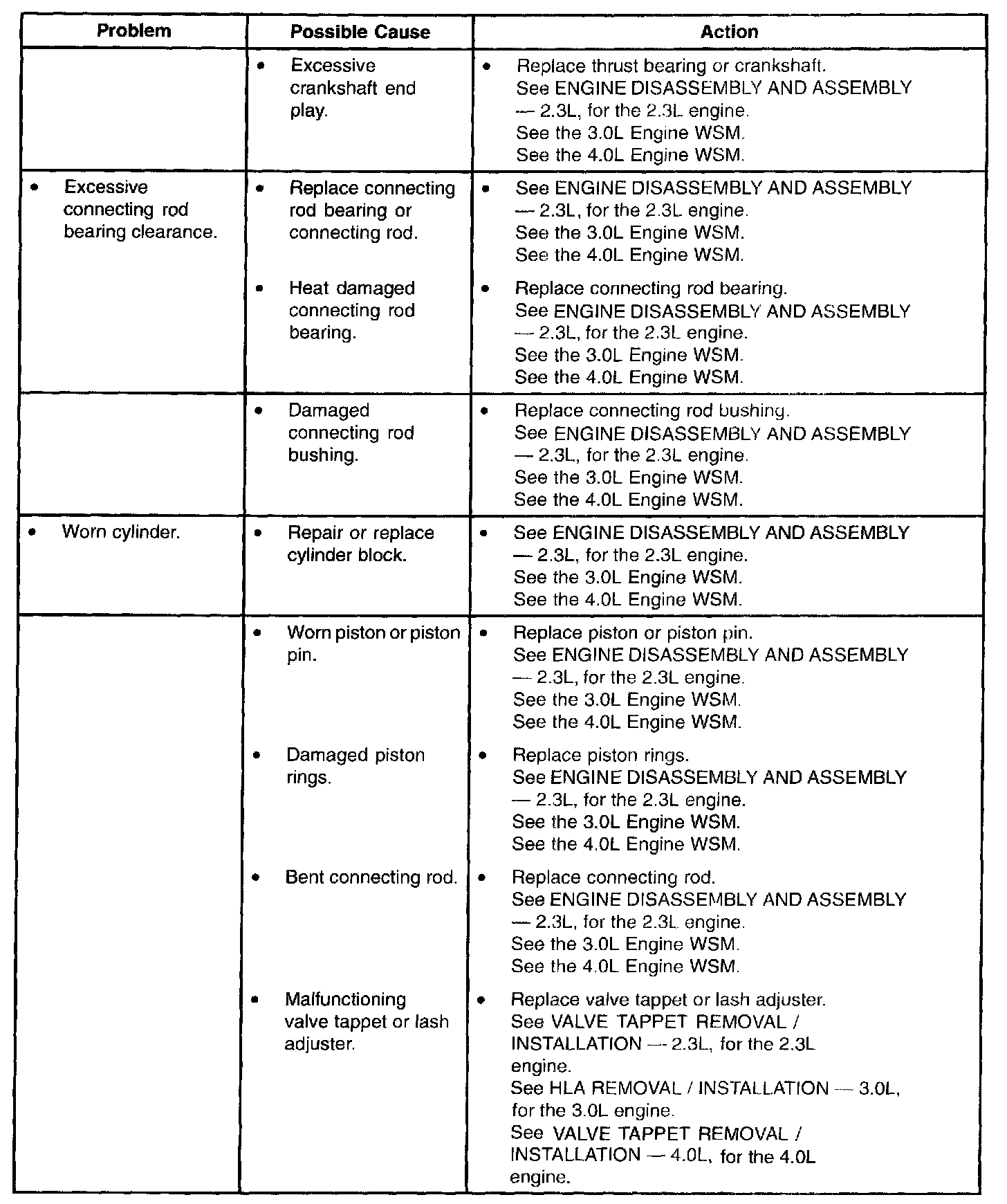

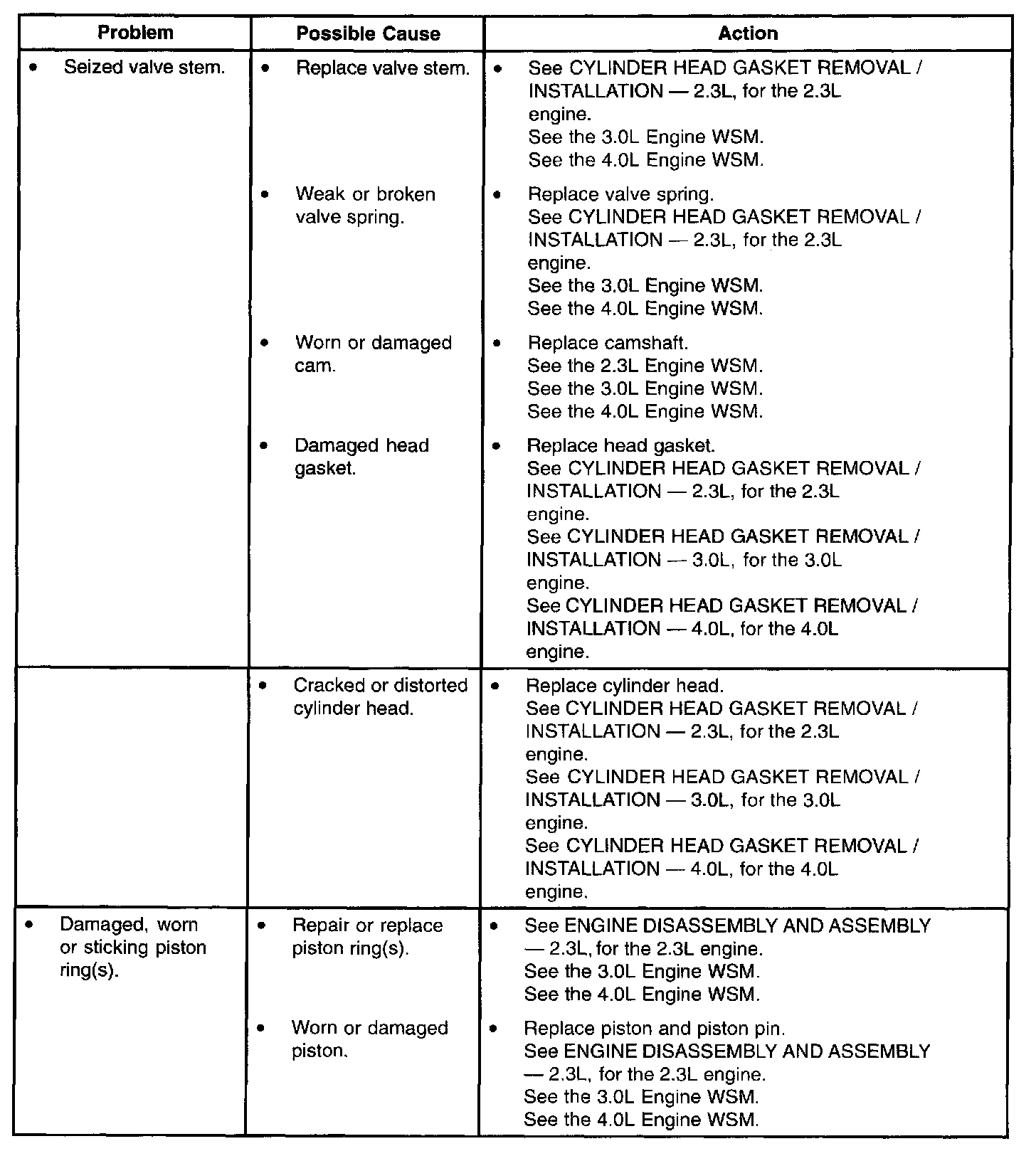

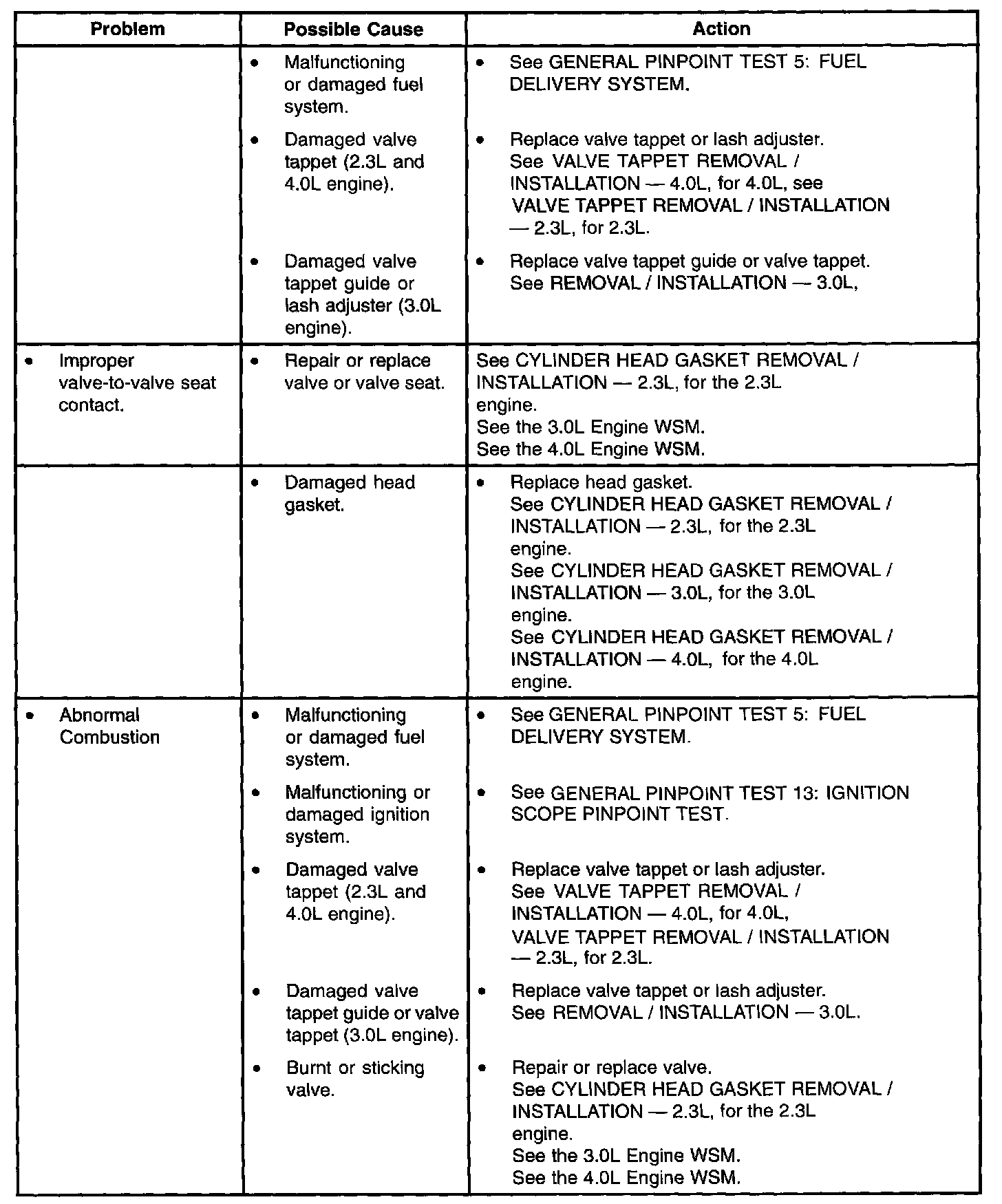

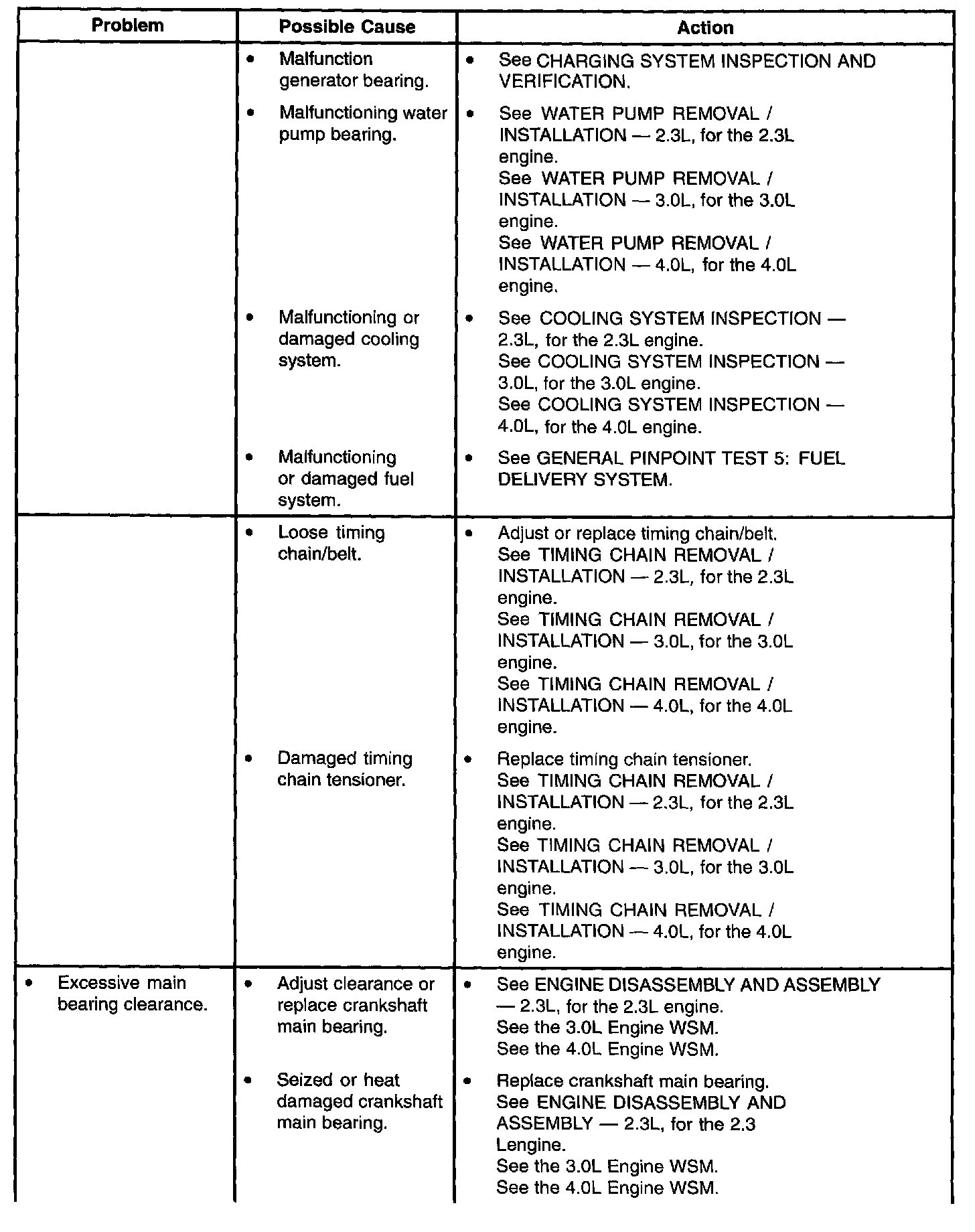

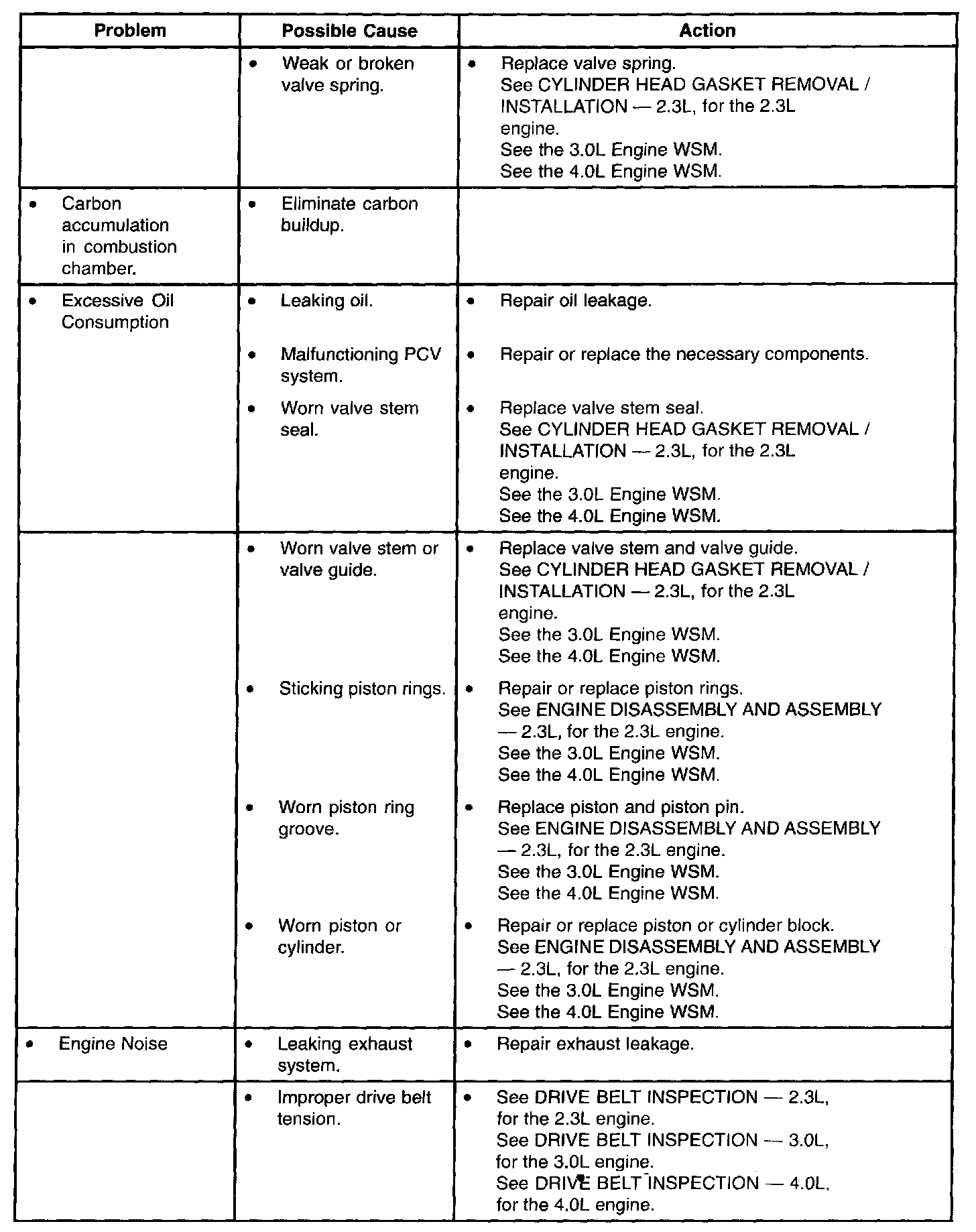

Symptom Troubleshooting Chart

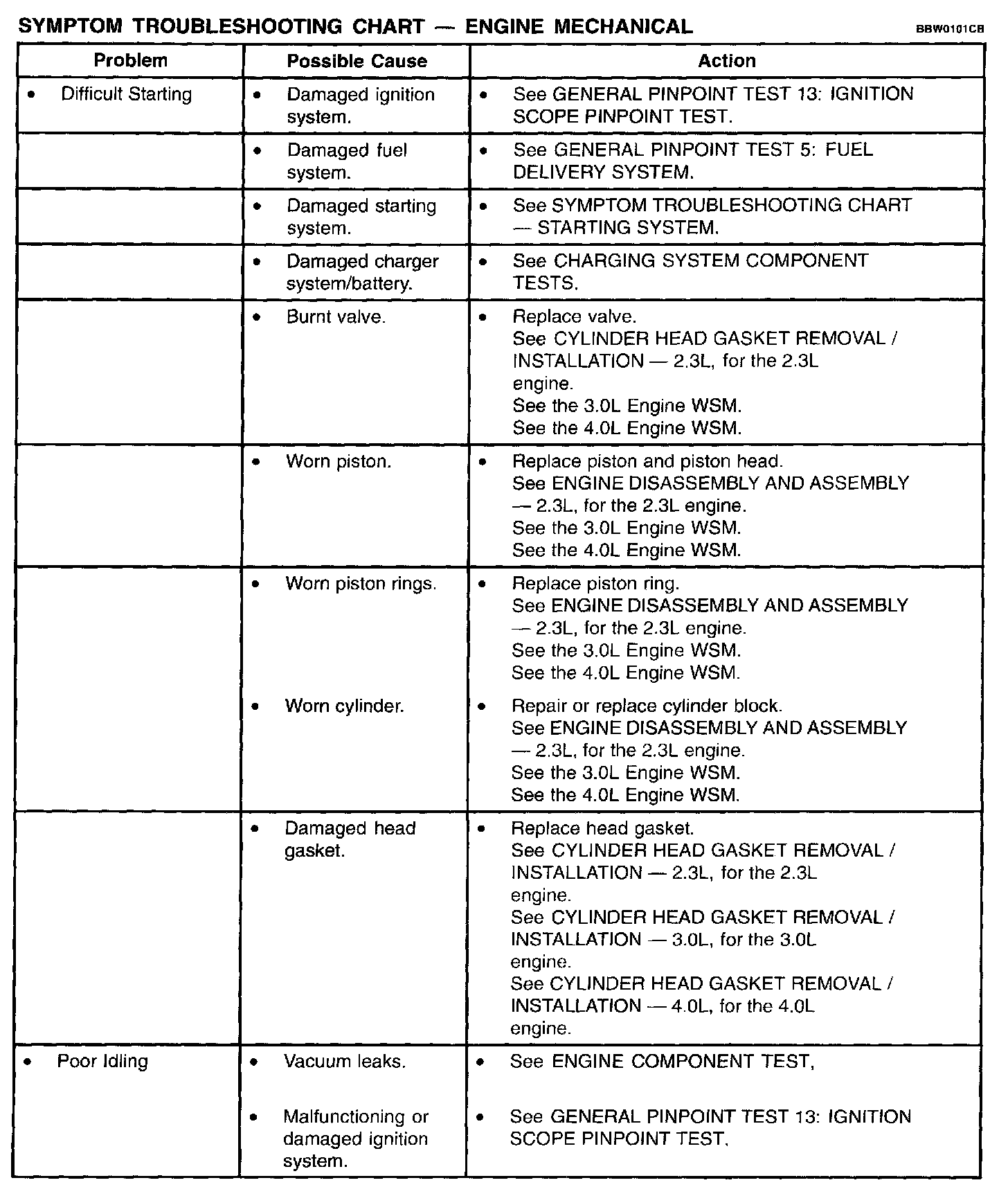

Symptom Troubleshooting Chart - Engine Mechanical Part 1:

Symptom Troubleshooting Chart - Engine Mechanical Part 2:

Symptom Troubleshooting Chart - Engine Mechanical Part 3:

Symptom Troubleshooting Chart - Engine Mechanical Part 4:

Symptom Troubleshooting Chart - Engine Mechanical Part 5:

Symptom Troubleshooting Chart - Engine Mechanical Part 6:

Symptom Troubleshooting Chart - Engine Mechanical Part 7:
