Automatic Transmission/Transaxle
>>
Automatic Transmission Cooling Components View
Automatic Transmission Cooling Components View

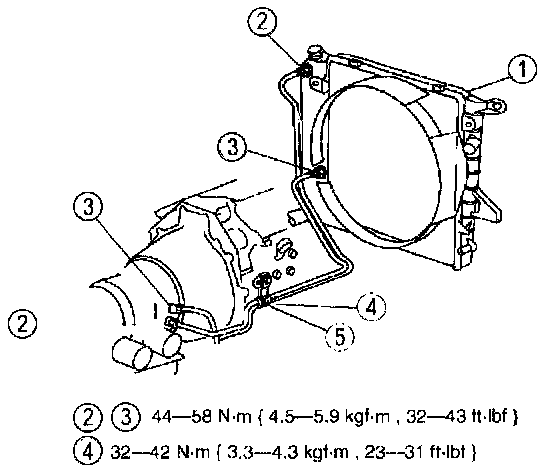

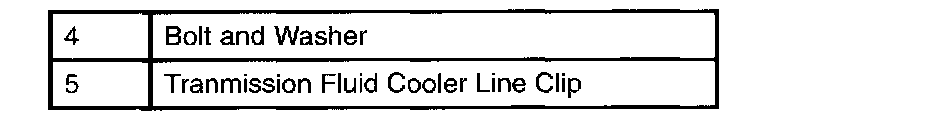

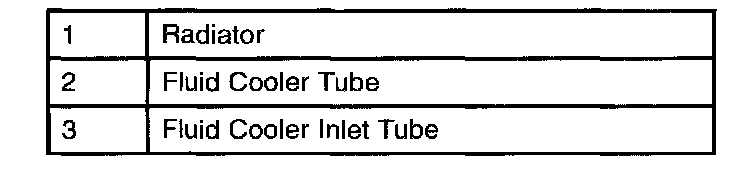

AUTOMATIC TRANSMISSION COOLING COMPONENTS VIEW
2.3 L and 3.0L
