Power Distribution

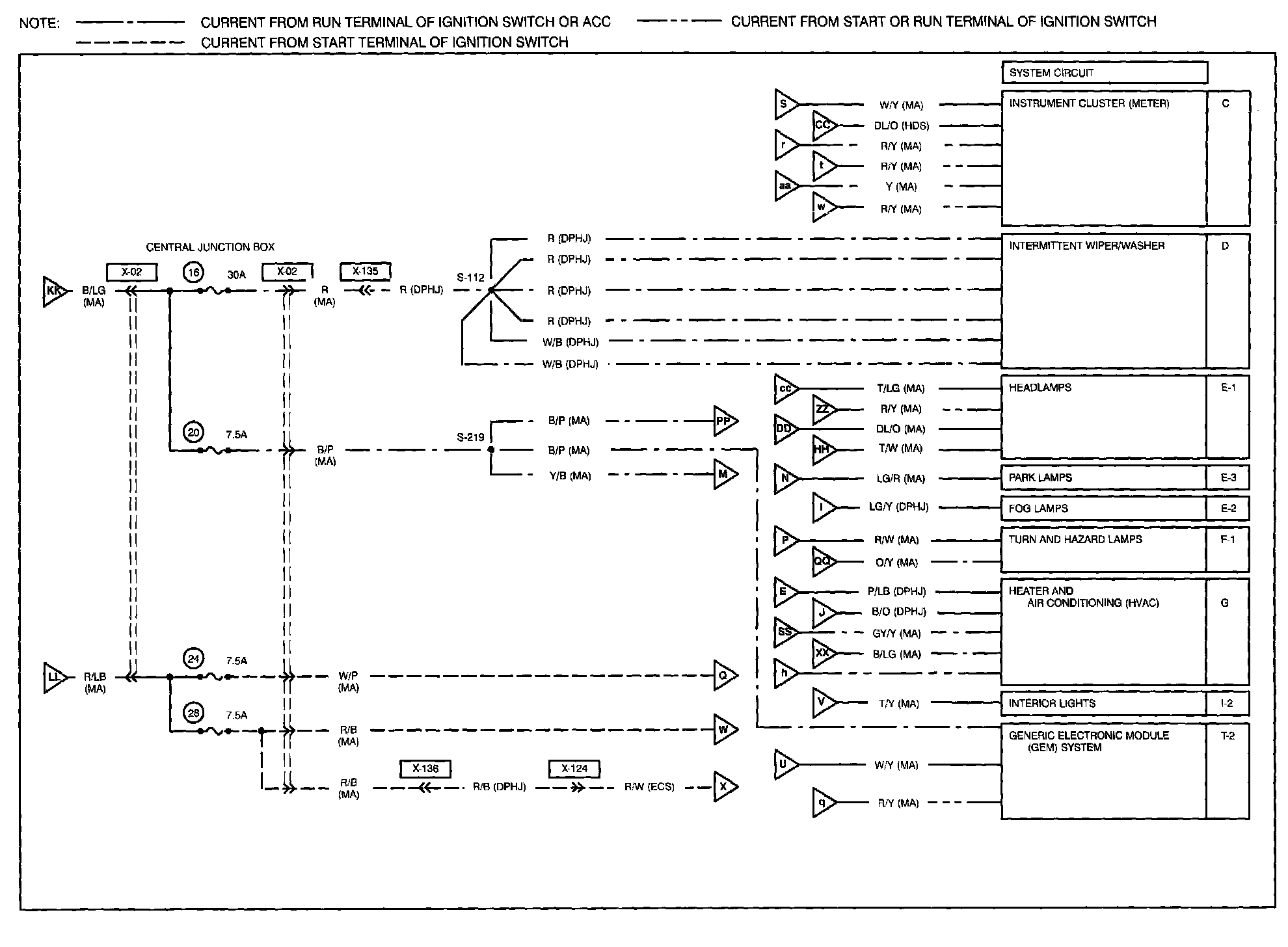

Diagram W-a:

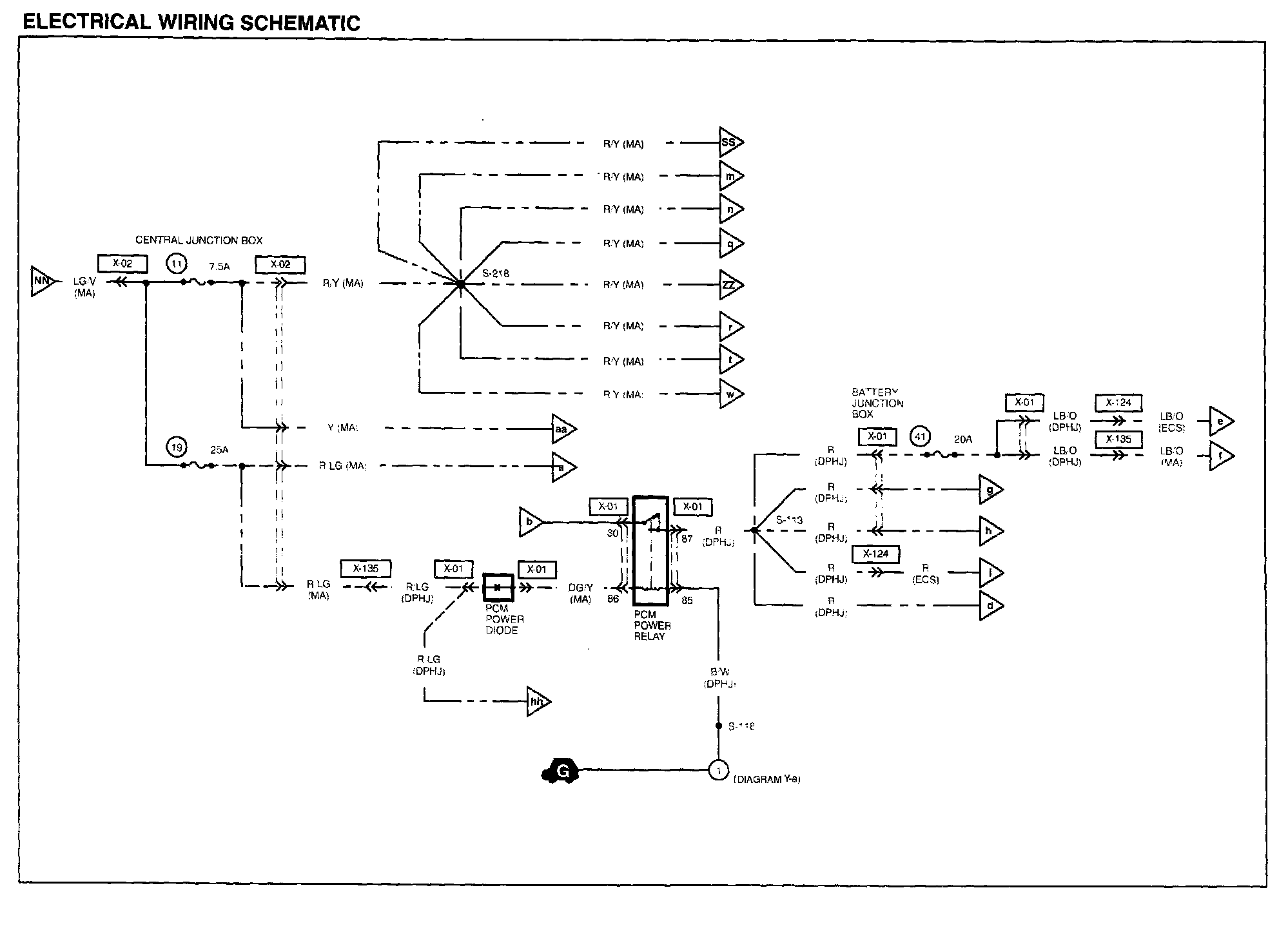

Diagram W-b:

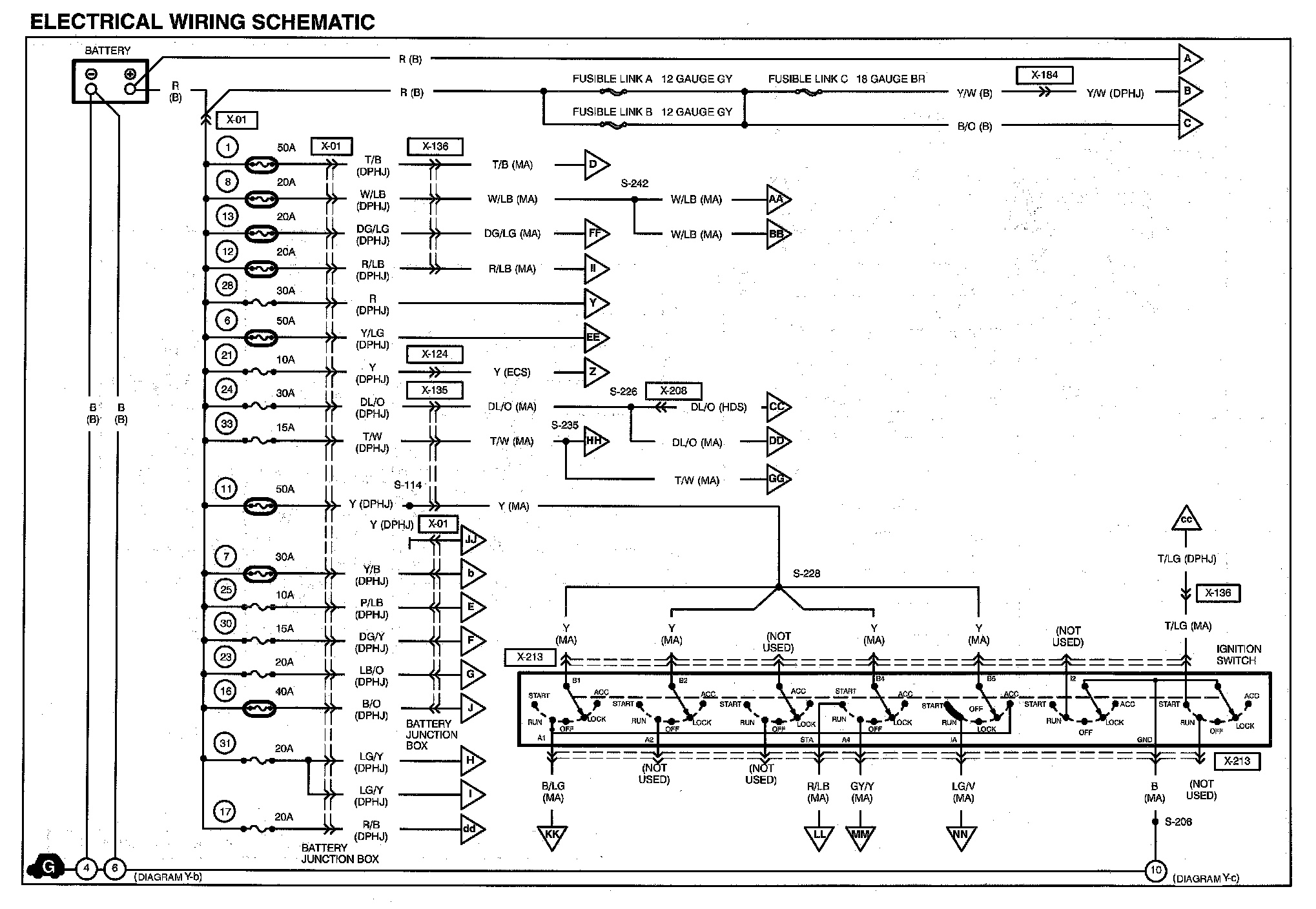

Diagram W-c:

Diagram W-d:

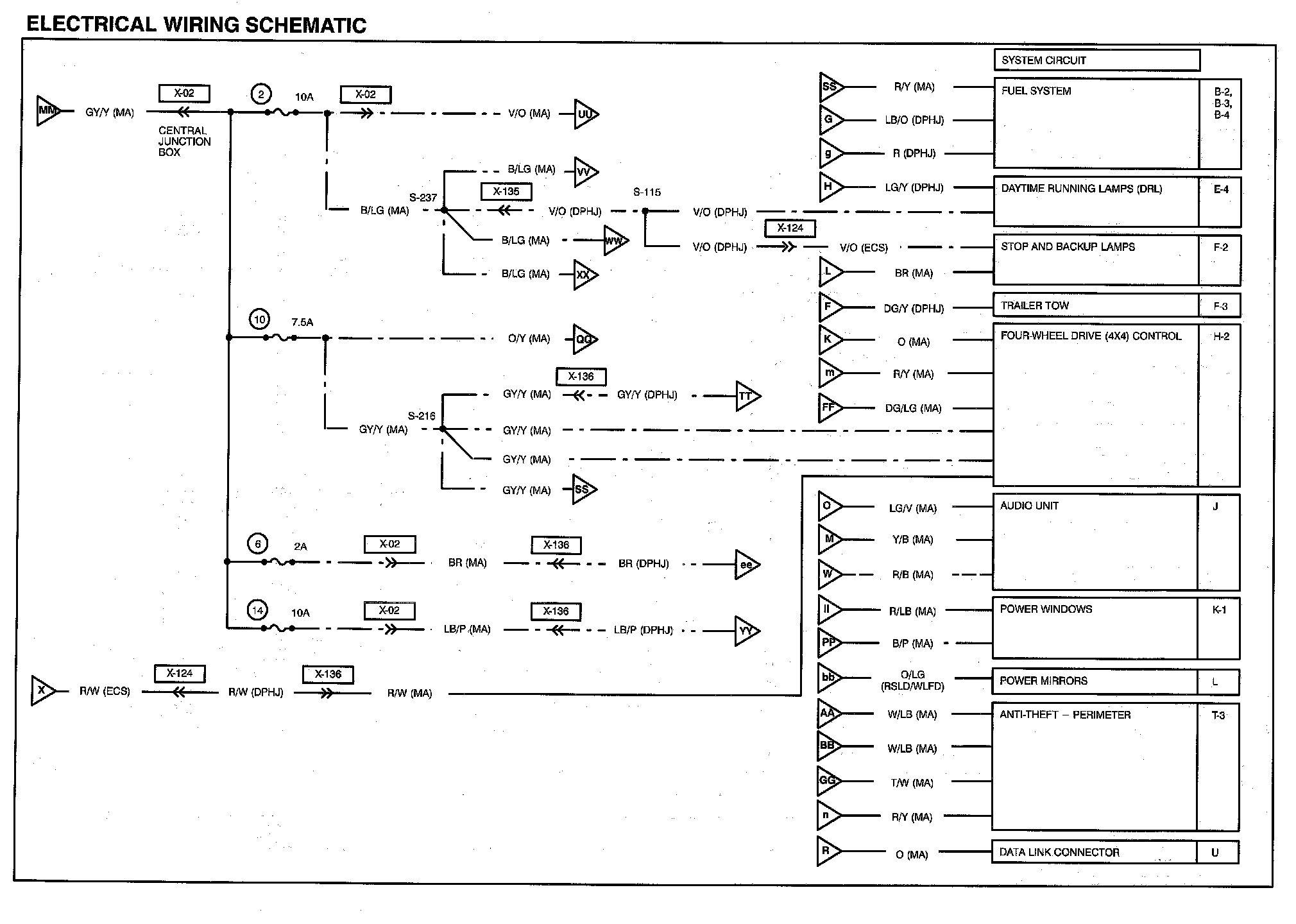

Diagram W-e:

Diagram W-f:

Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name.
Diagrams By Diagram Name
