Anti-Theft-Passive Anti-Theft System (PATS)

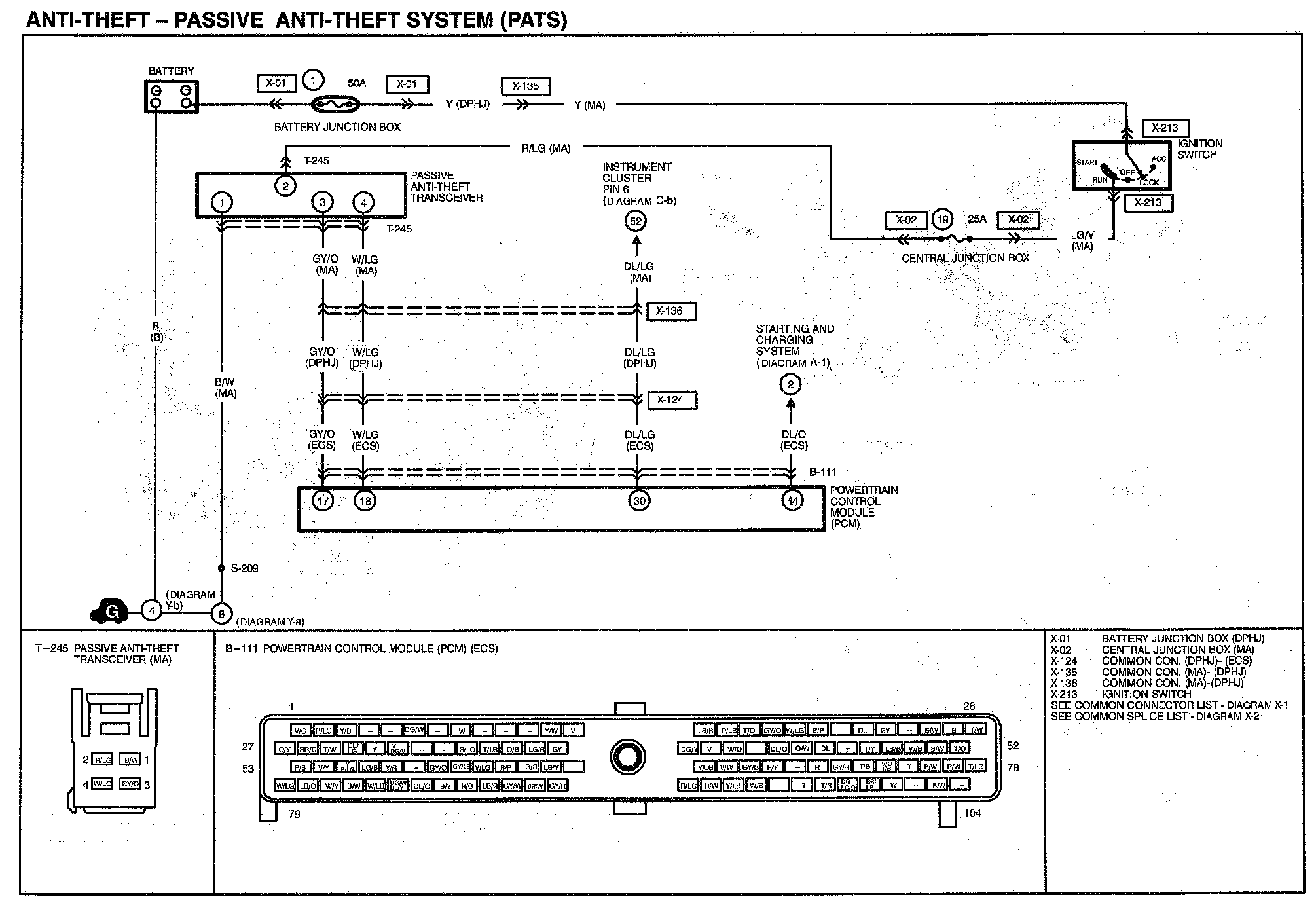

Diagram T-4:

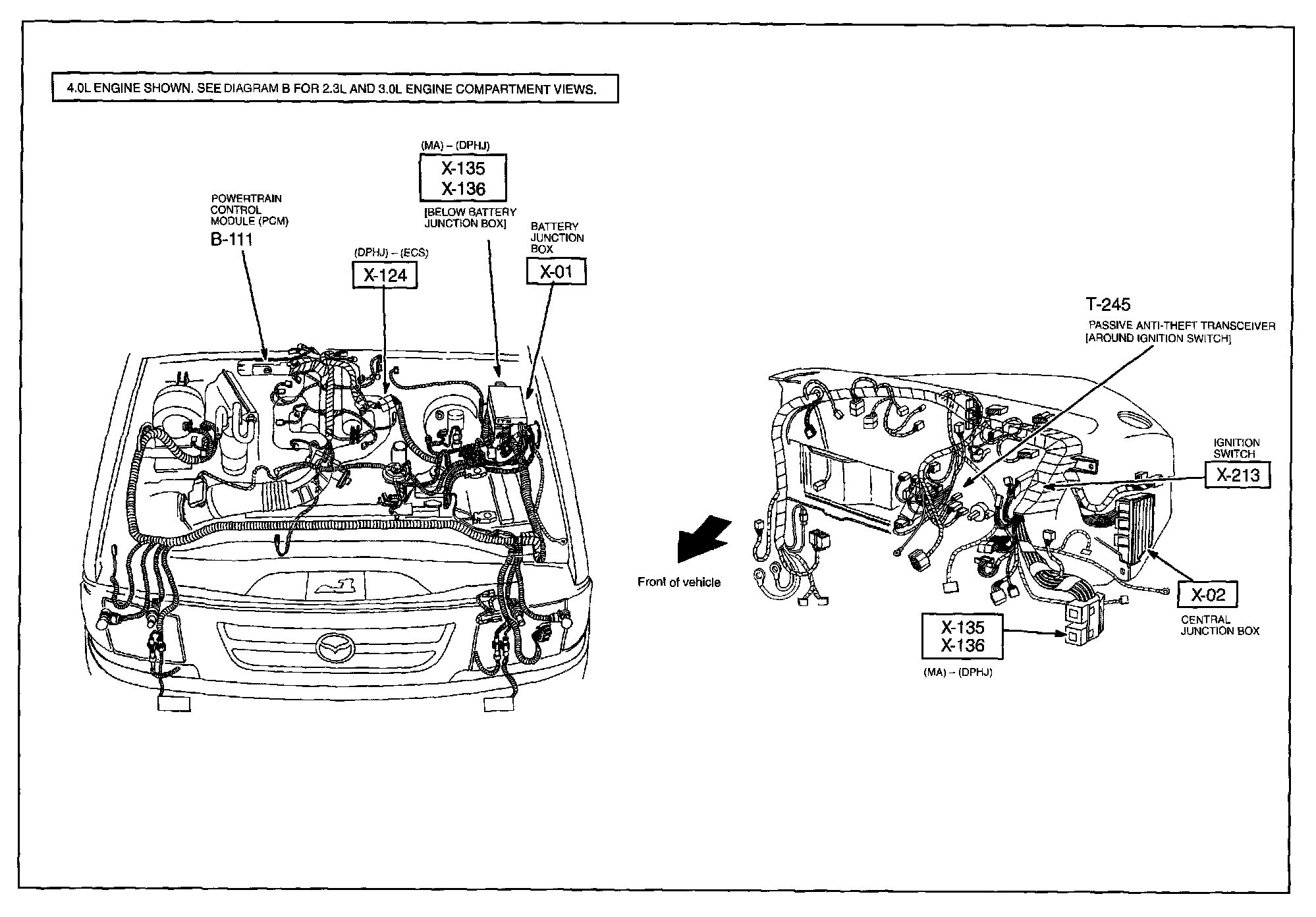

Routing View T-4:

Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name.
