Anti-Theft Perimeter

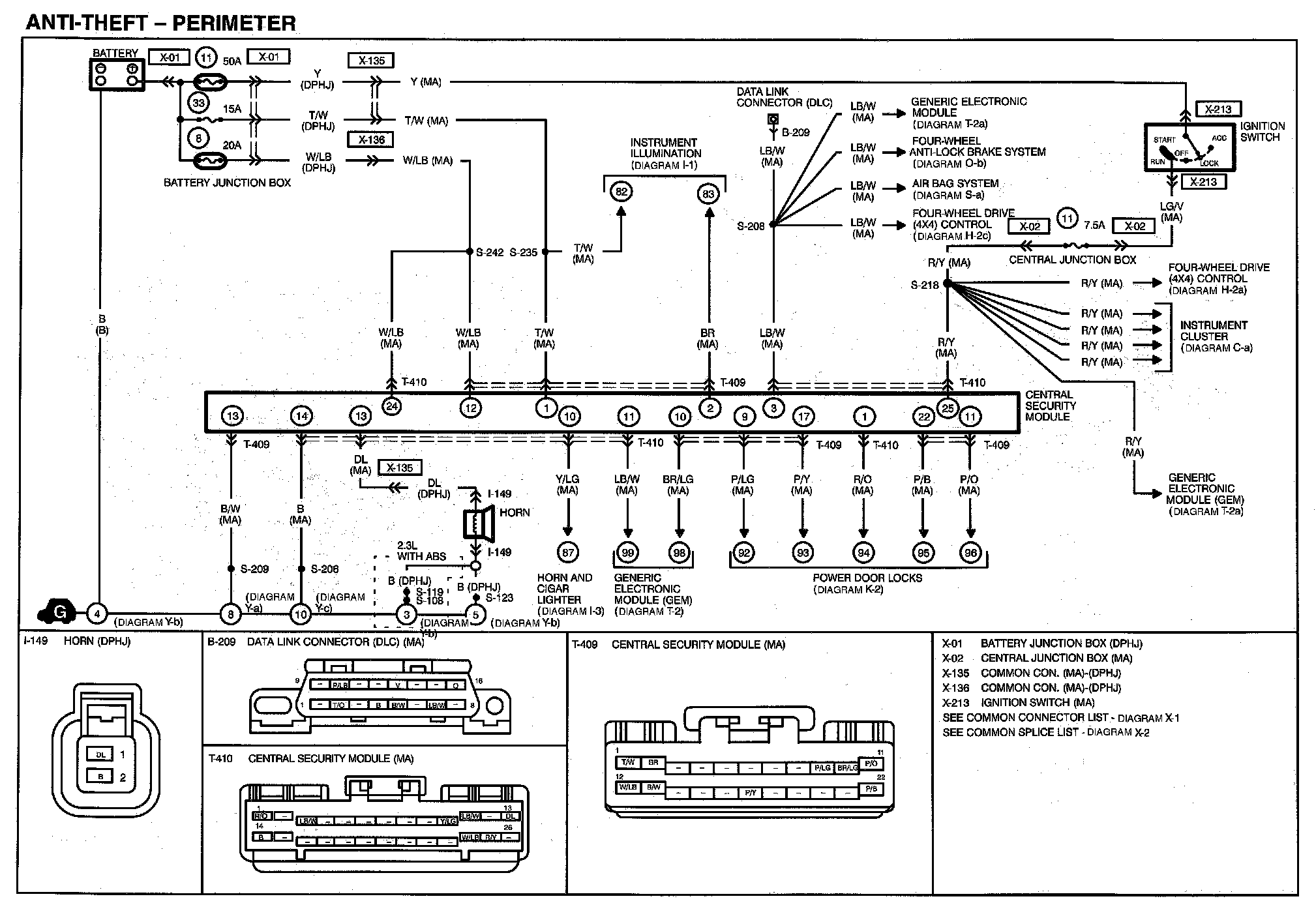

Diagram T-3a:

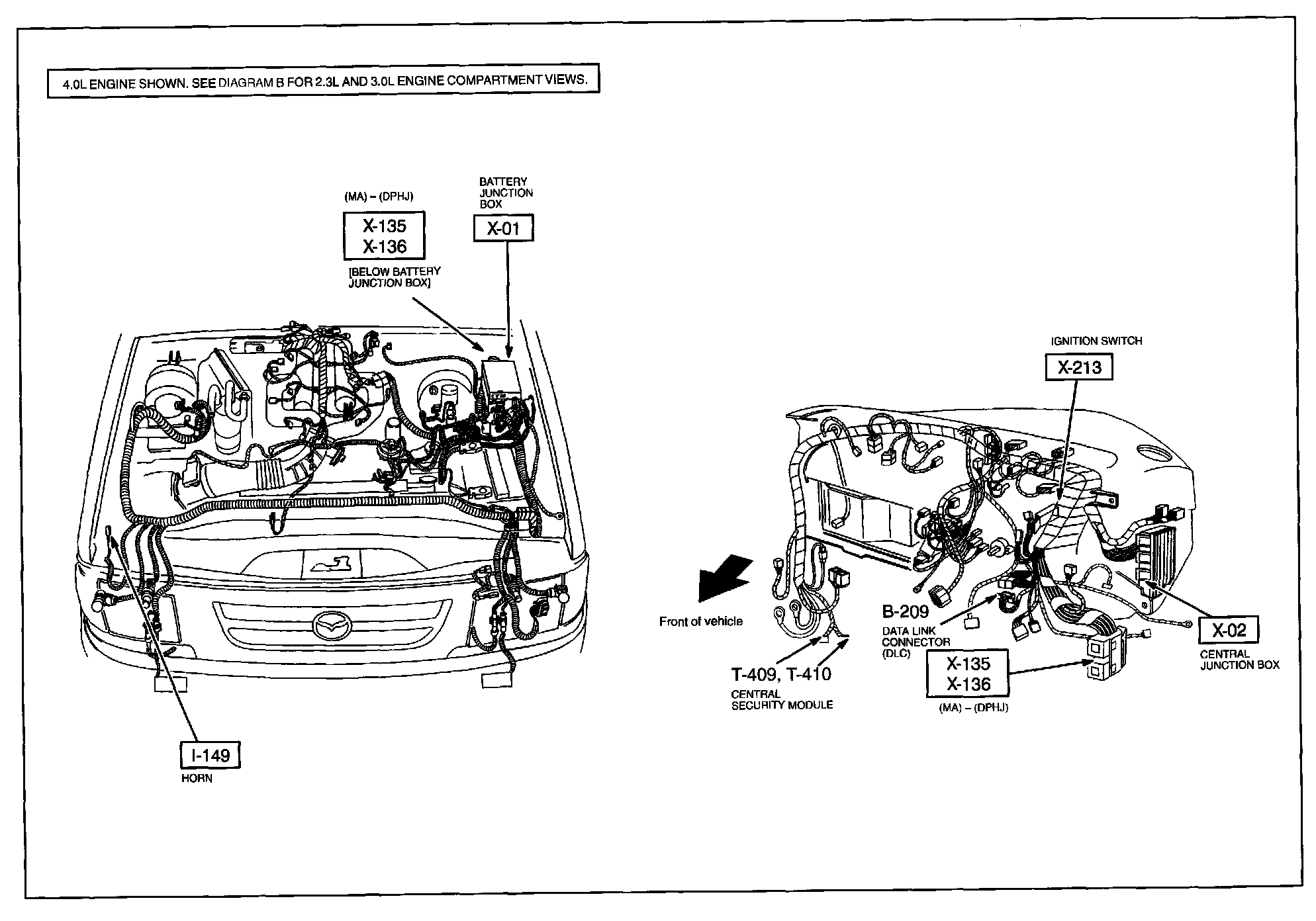

Routing View T-3a:

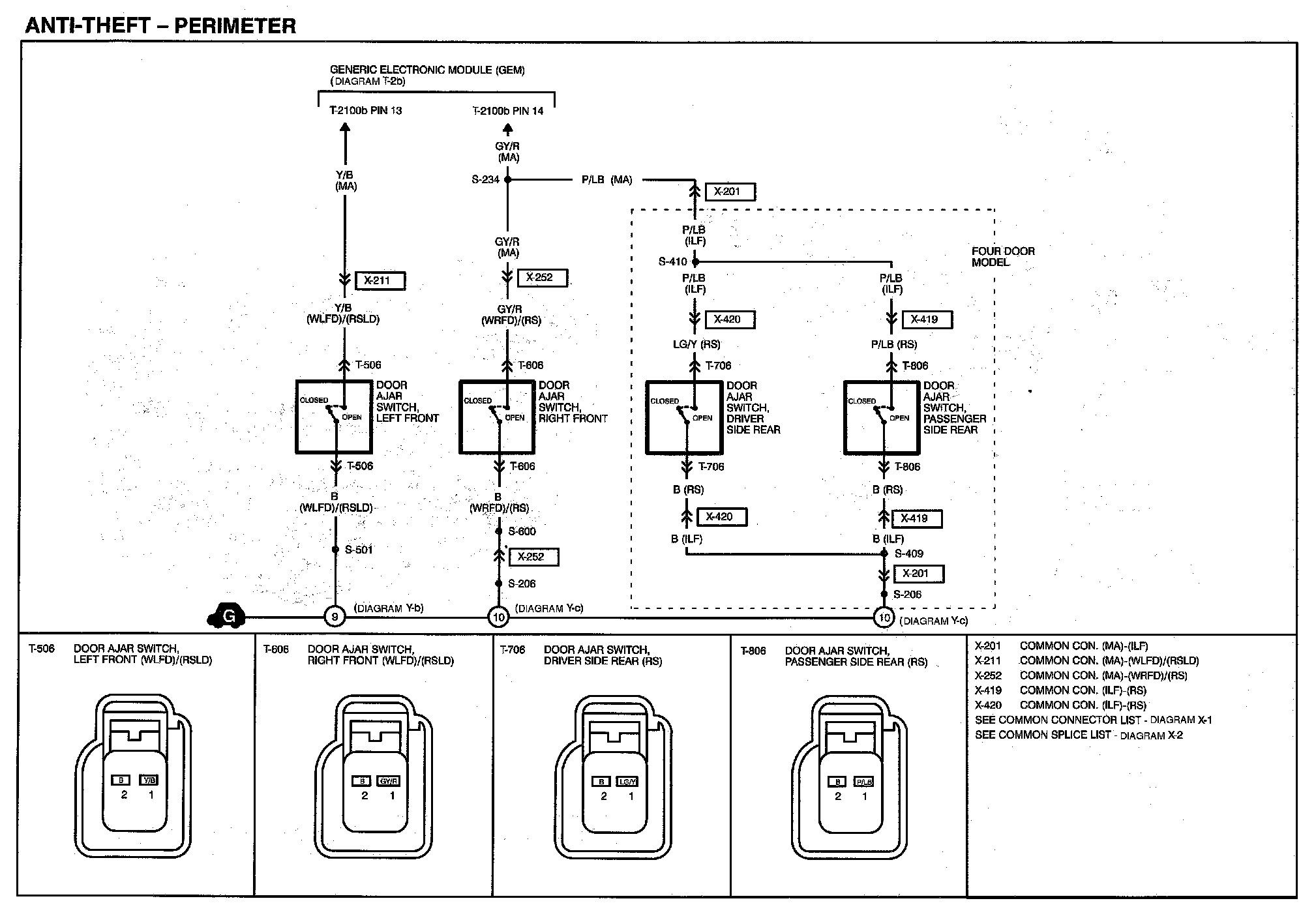

Diagram T-3b:

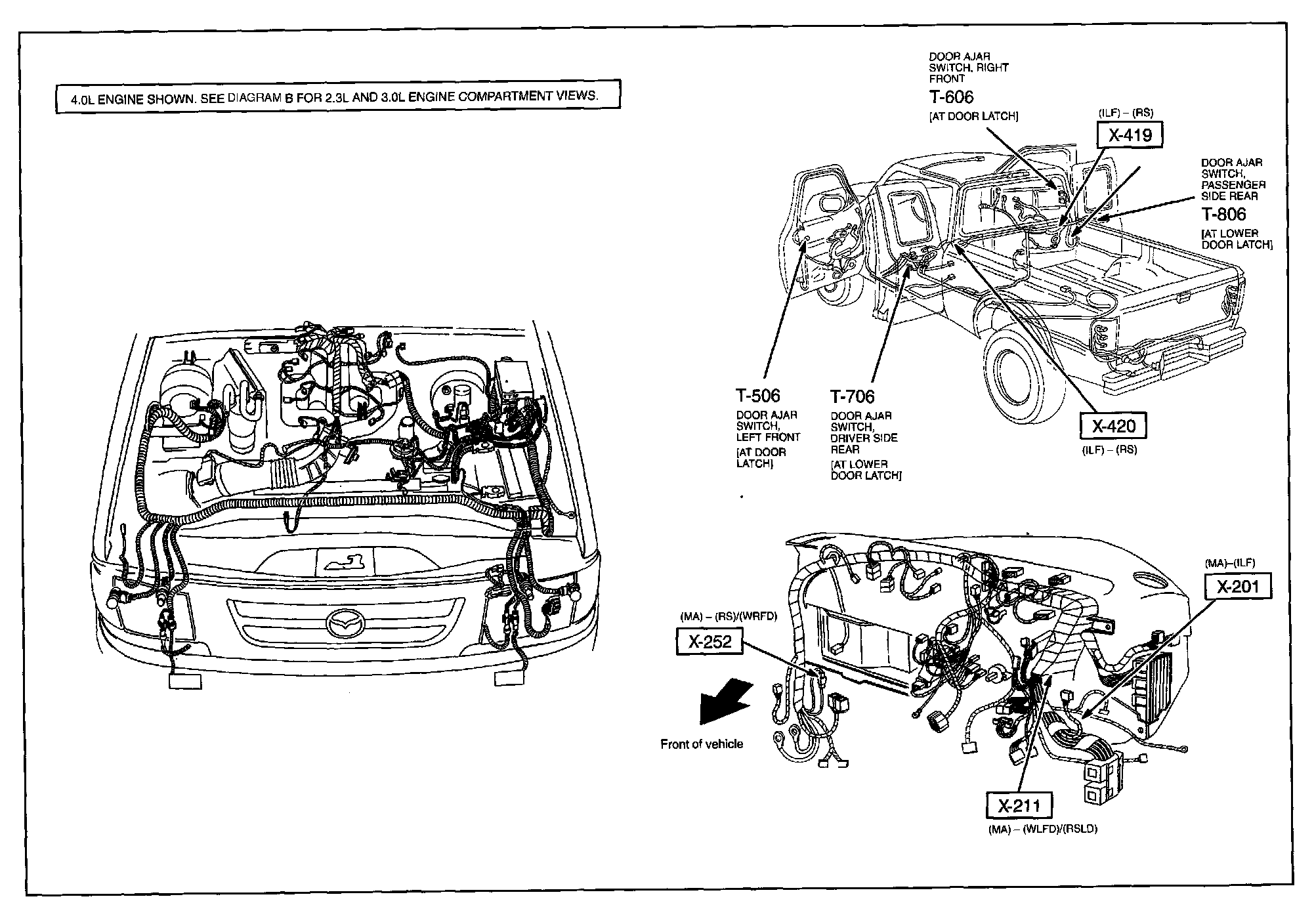

Routing View T-3b:

Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name.
Diagrams By Diagram Name
