Air Bag Systems

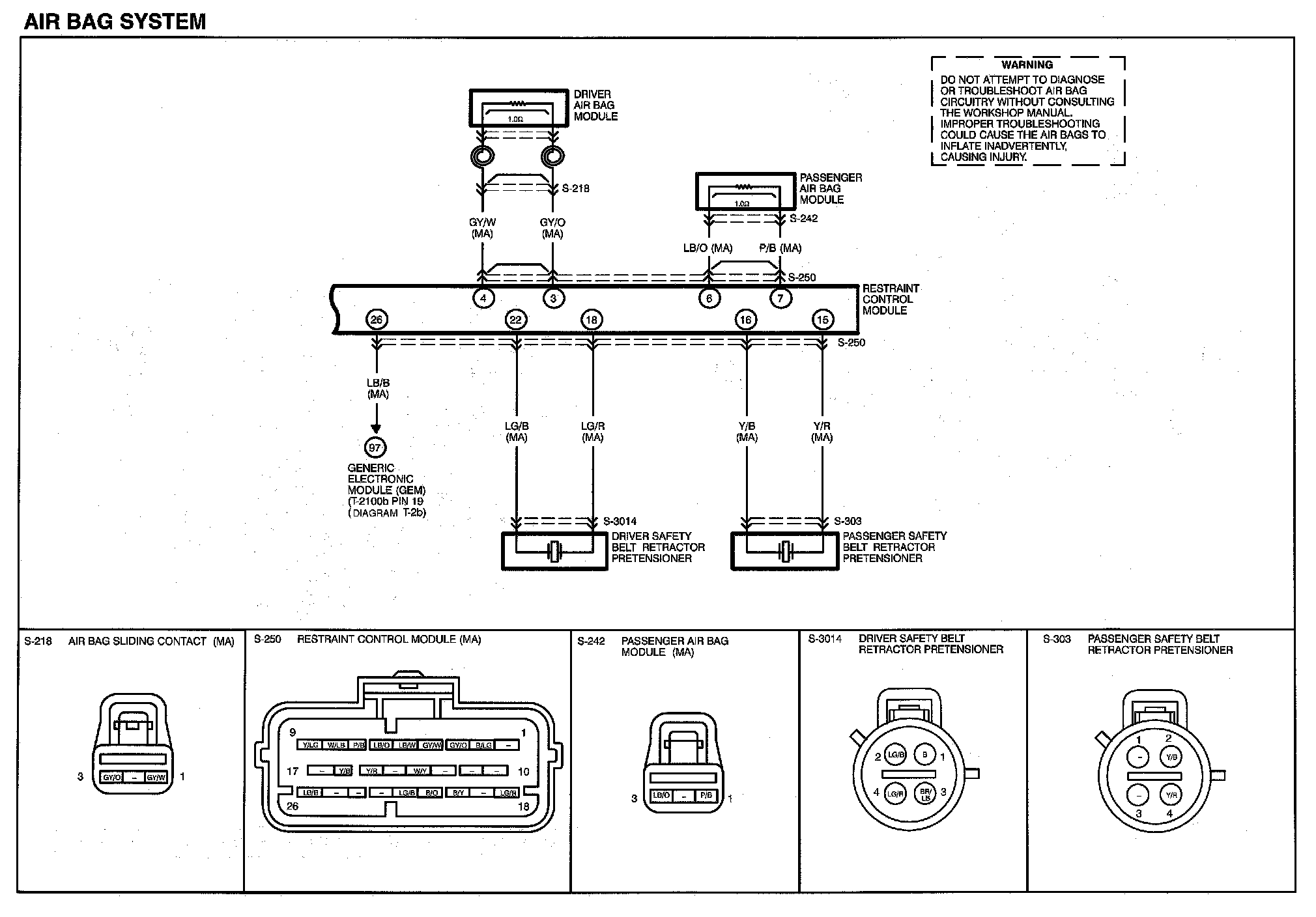

Diagram S-a:

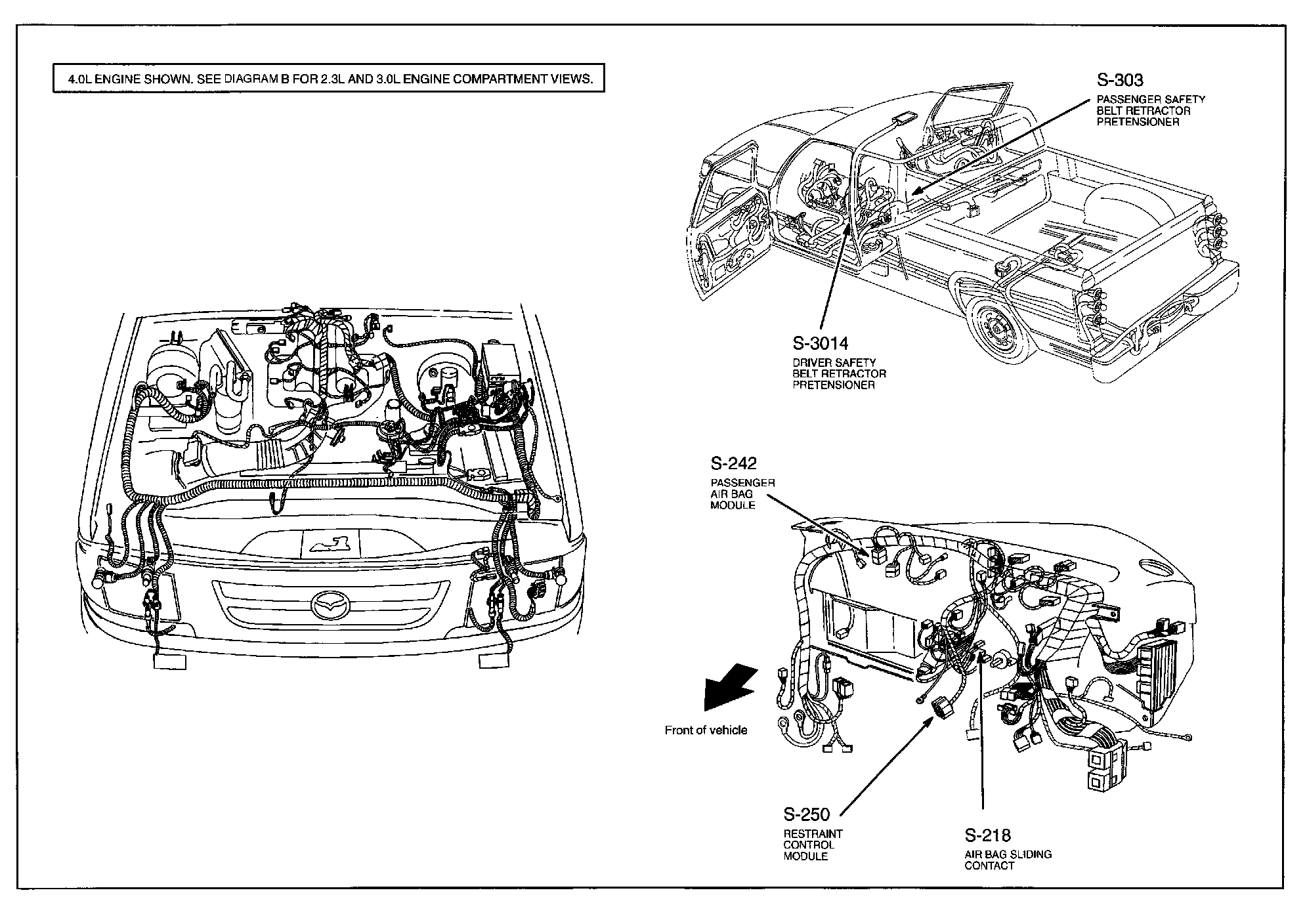

Routing View S-a:

Diagram S-b:

Routing View S-b:

Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name.
Diagrams By Diagram Name
