Disassembly and Assembly

WHEEL CYLINDER DISASSEMBLY / ASSEMBLY

Note:
^ Removal is not necessary to disassemble, hone or overhaul the wheel cylinder.

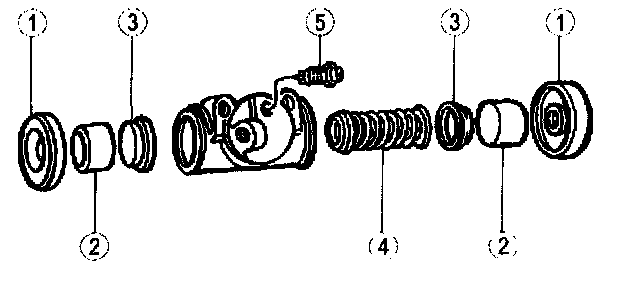

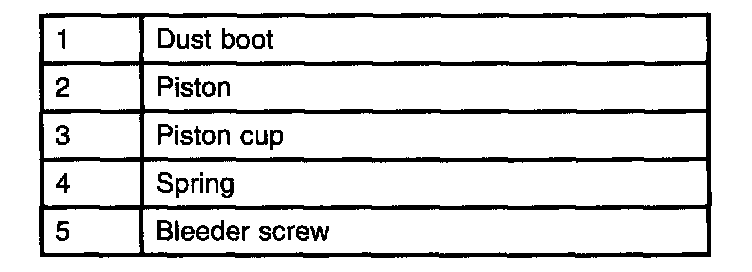

1. Disassemble in order shown in figure.

Note:
^ Coat all wheel cylinder parts with the appropriate brake fluid.

2. Assemble in reverse order of disassembly.
