Brake Shoe: Testing and Inspection

BRAKE SHOE AND LINING INSPECTION





1. Inspect the rear brake assembly for the following:
^ the rear wheel cylinder for excessive leakage that can contaminate brake system parts, and rebuild as necessary.
^ the rear brake shoes and linings for contamination, and replace as necessary.

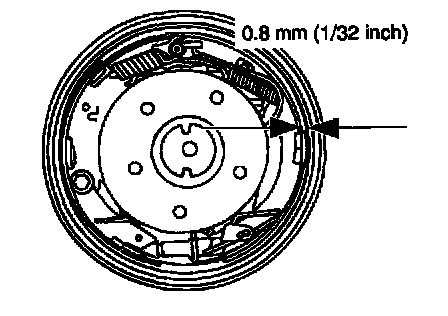

^ the rear brake shoes and linings for minimum thickness, above the backing plate or rivets, and replace as necessary.
^ the springs for heat discoloration, and replace as necessary.
^ the adjusting lever contact with the brake adjuster screw.
