Mazda Truck
>>
2003
>>
B2300 2WD L4-2.3L VIN D
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Antilock Brakes / Traction Control Systems
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
Diagnosis By Symptom - Module Communication
>>
Symptom Troubleshooting Chart- Module Communication
Symptom Troubleshooting Chart- Module Communication

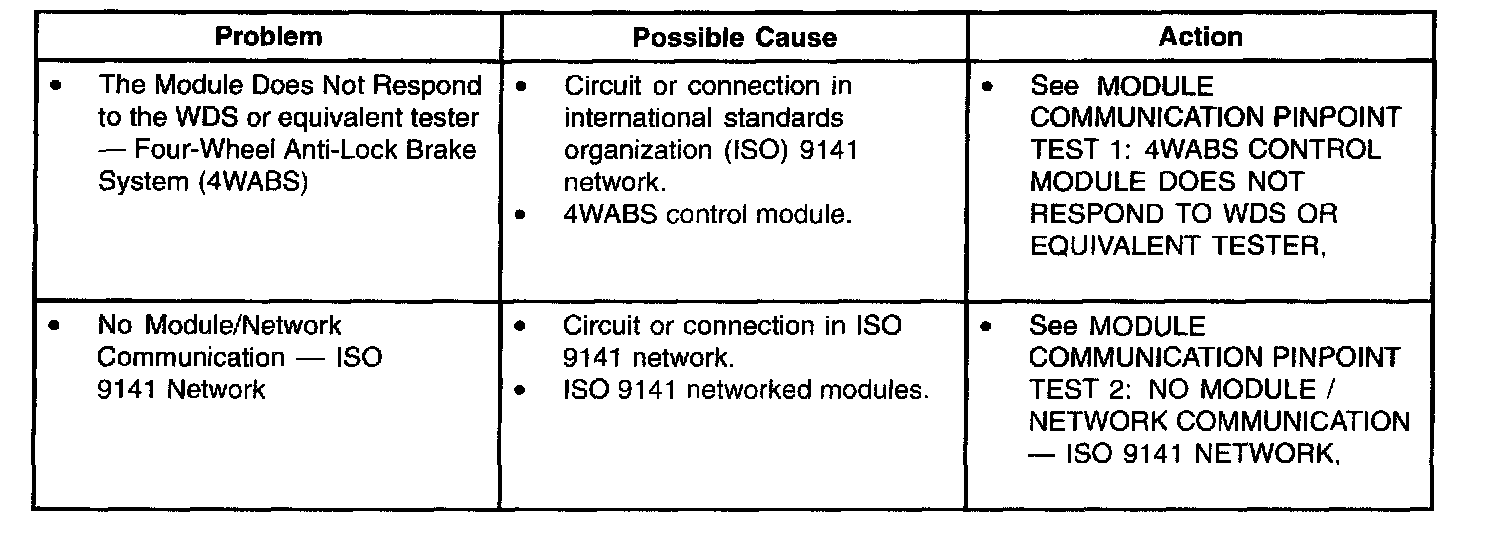

SYMPTOM TROUBLESHOOTING CHART- MODULE COMMUNICATION
Chart 1 Of 2:
Chart 2 Of 2:
