Pinpoint Test 1

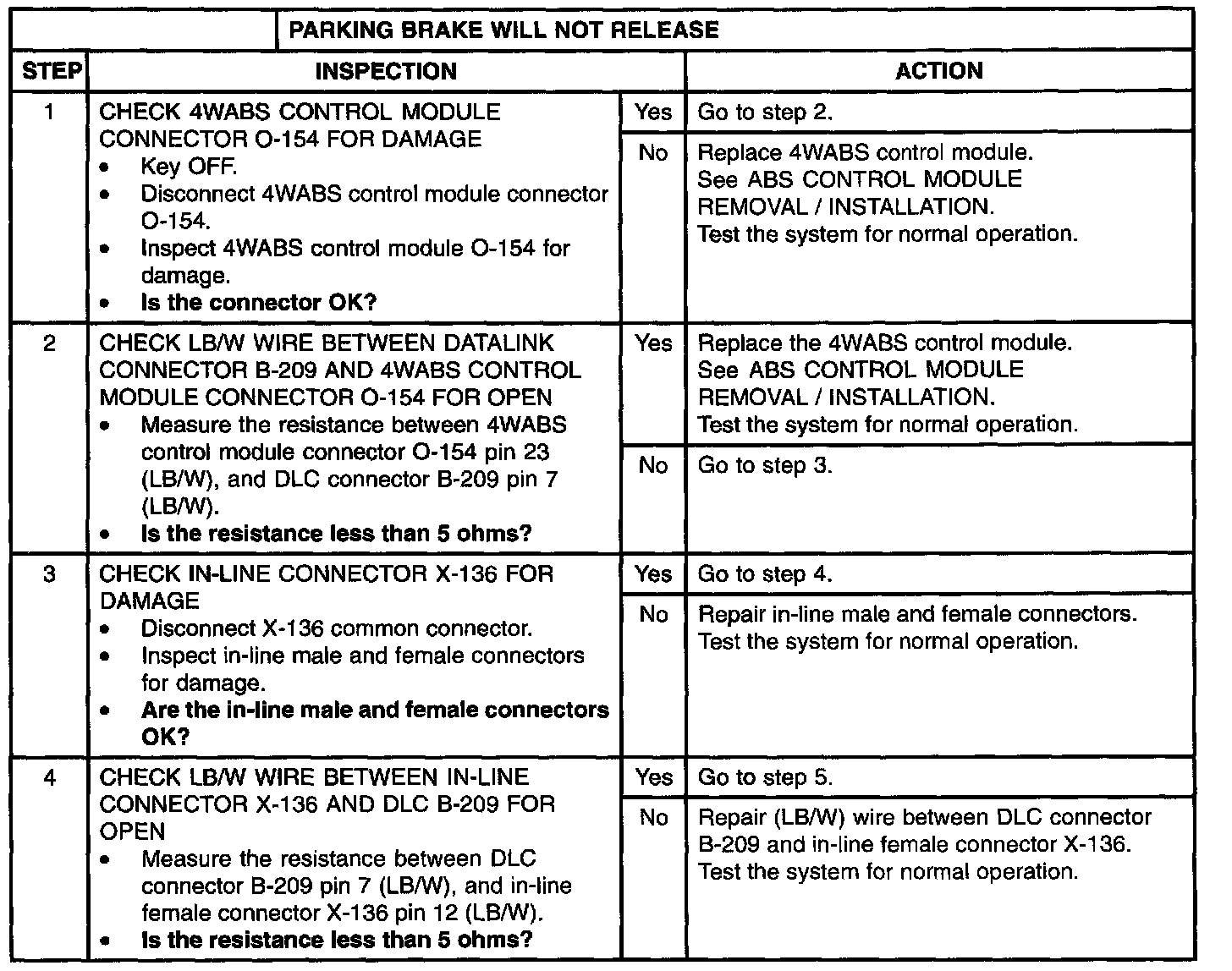

MODULE COMMUNICATION PINPOINT TEST 1: 4WABS CONTROL MODULE DOES NOT RESPOND TO WDS OR EQUIVALENT TESTER

Test 1 Of 4:




Test 2 Of 4:




Test 3 Of 4:




Test 4 Of 4:
