Truck Bed: Service and Repair

PICKUP BED REMOVAL/INSTALLATION

1. Remove the tailgate.
2. Disconnect the rear lamp wiring harness electrical connector.

NOTE: Mark the position of the fuel tiller cap tether for proper installation.

3. Remove the fuel filler cap.
4. Remove the fuel filler neck screws.

CAUTION: Use care not to scratch the pickup bed.

NOTE: Label the pickup bed bolts because they are not identical and must be installed in the same location that they are removed from.

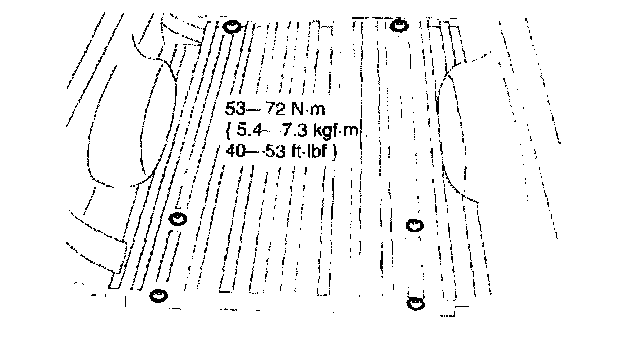

5. Remove the pickup bed bolts.

CAUTION:
- Use body decking protectors over the front corners of the pickup bed to prevent scratches.
- Lifting the pickup bed requires at least two people on each side.

6. Remove the pickup bed.






7. Inspect the J-nuts for damage. Replace the J-nuts if they are damaged.
8. Install in reverse order of removal.
