Seat Rear - Center Facing Removal/Installation

SEAT REAR - CENTER FACING REMOVAL/INSTALLATION

Removal Note

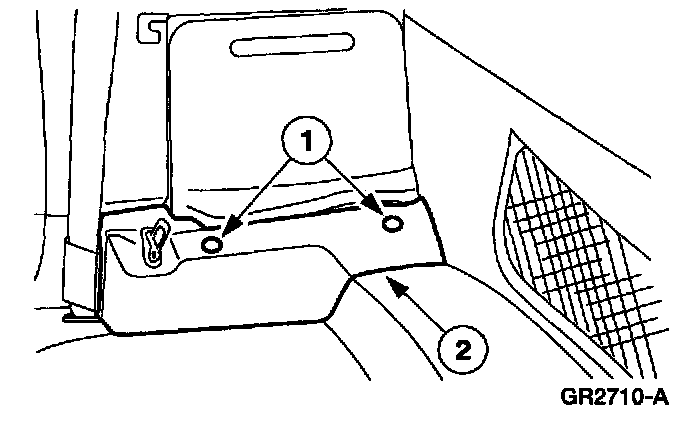

1. Remove the lower rear seat trim panel.
1. Remove the pushpins.
2. Remove the lower rear seat trim panel.

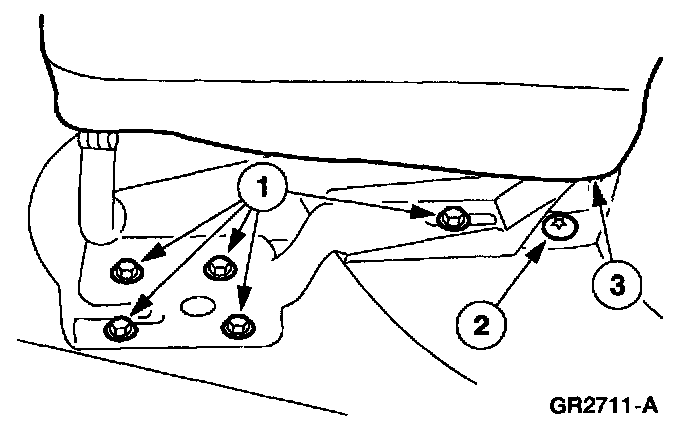

2. Remove the center facing rear seat.
1. Remove the bolts.
2. Use Safety Belt Bolt Bit to remove the safety belt bolt.
3. Remove the center facing rear seat.

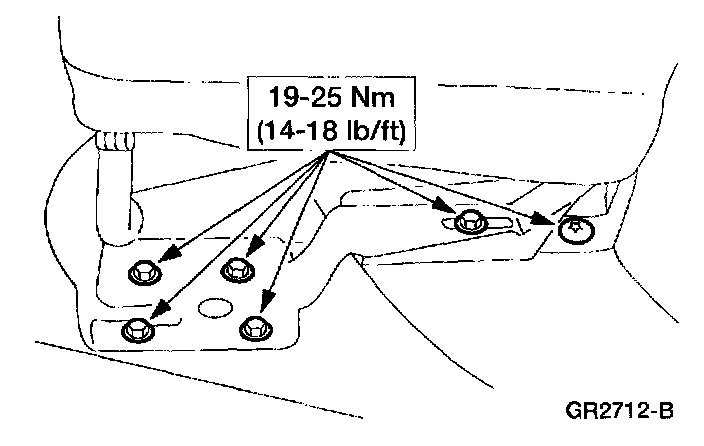

Installation Note






1. To install, reverse the removal procedure.
2. Check the restraint system for correct operation.
