Seat Backrest Front - 60 Percent Bench Removal/Installation
SEAT BACKREST FRONT - 60 PERCENT BENCH REMOVAL/INSTALLATIONRemoval Note
WARNING:
- Always wear safety glasses when repairing an air bag supplemental restraint system (SRS) vehicle and when handling an air bag module. This will reduce the risk of injury in the event of an accidental deployment.
- After deployment, the air bag surface can contain deposits of sodium hydroxide, a product of the gas generant combustion that is irritating to the skin. Wash your hands with soap and water afterwards.
- Never probe the connectors on the air bag module. Doing so can result in air bag deployment, which can result in personal injury.
Vehicles with safety belt buckle pretensioners
1. Prepare the vehicle for front seat backrest removal.
WARNING: avoid accidental deployment and possible personal injury, the backup power supply must be depleted before repairing or replacing any front or side air bag supplemental restraint system (SRS) components and before servicing, replacing, adjusting or striking components near the front or side air bag sensors, such as doors, instrument panel, console, door latches, strikers, seats and hood latches.
To deplete the backup power supply energy, disconnect the negative battery cable and wait at least one minute. Be sure to disconnect auxiliary batteries and power supplies (if equipped).
1. Disconnect the negative battery cable.
WARNING: To reduce the risk of serious personal injury, read and follow all warnings, cautions, notes, and instructions in the supplemental restraint system (SRS) deactivation/reactivation procedure.
2. Deactivate the supplemental restraint system (SRS).
WARNING: To reduce the risk of serious personal injury, read and follow all warnings, cautions, notes, and instructions in the seat removal and installation procedure.
3. Remove the affected seat.
4. Remove the seat armrest.
Vehicles without safety belt buckle pretensioners
2. Prepare the vehicle for front seat backrest removal.
WARNING: To reduce the risk of serious personal injury, read and follow all warnings, cautions, notes, and instructions in the seat removal and installation procedure.
1. Remove the affected seat.
2. Remove the seat armrest.
All vehicles
3. Move the front seat backrest to its forward most position.

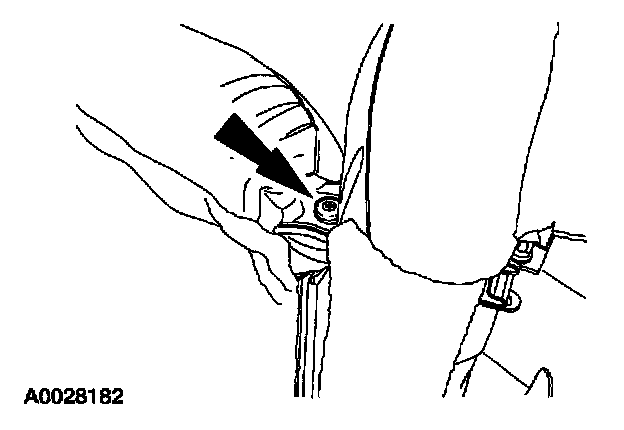

4. Remove the RH recliner bolt.

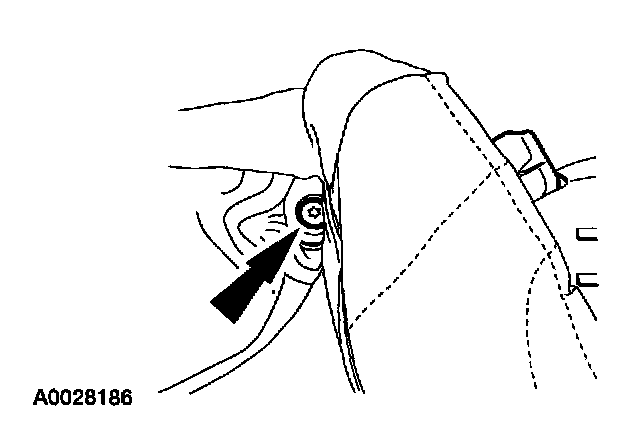

5. Remove the LH recliner bolt.

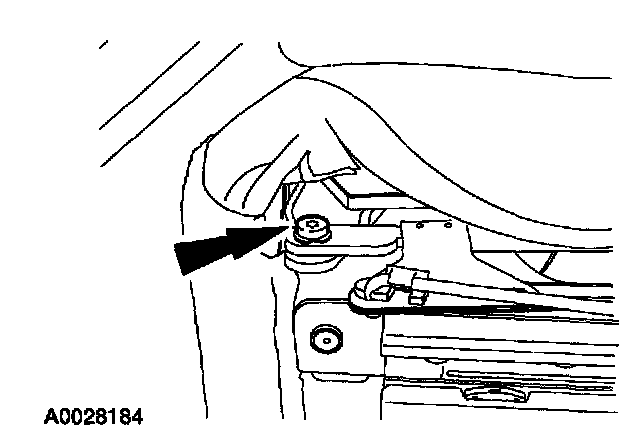

6. Remove the LH pivot bolt.

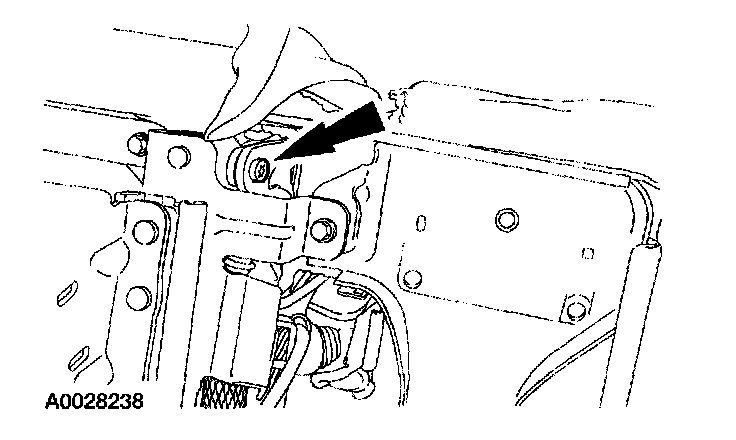

7. Remove the RH pivot bolt.
8. Remove the front seat backrest.
Installation Note
WARNING: To reduce the risk of serious personal injury, read and follow warnings, cautions, and notes at the beginning of the removal procedure.
All vehicles
1. Position the front seat backrest.

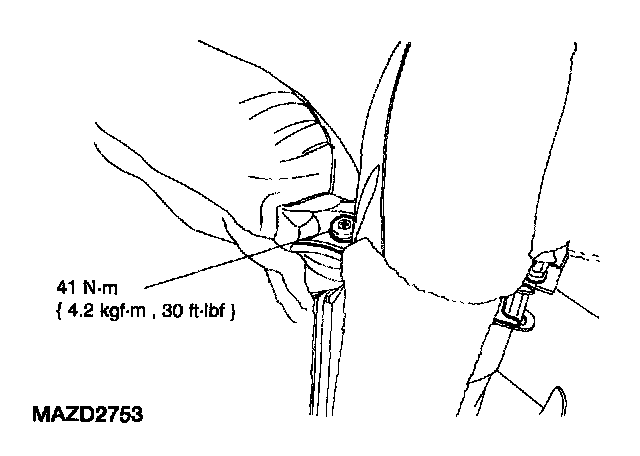

2. Install the RH recliner bolt.

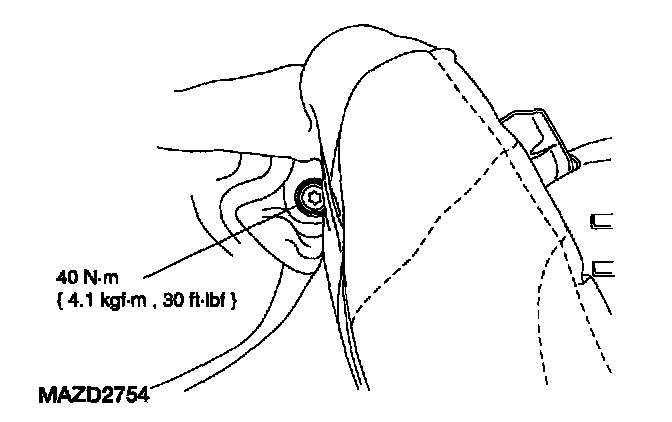

3. Install the LH recliner bolt.

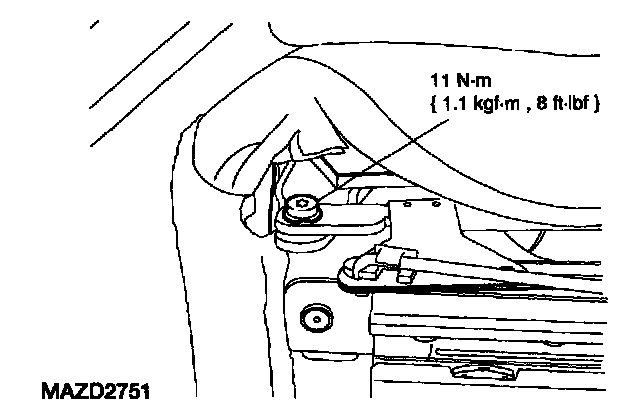

4. Install the LH pivot bolt.

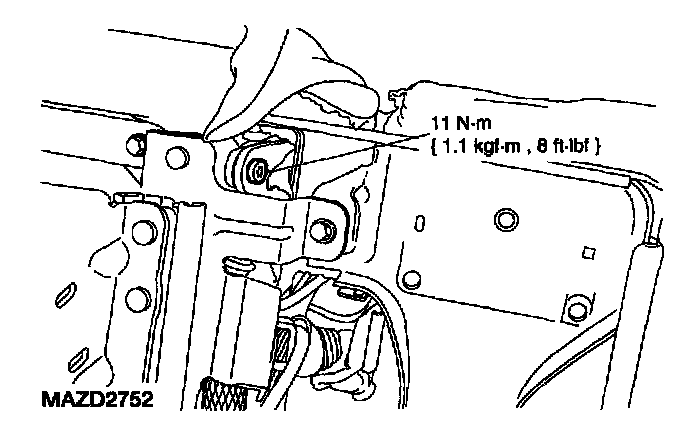

5. Install the RH pivot bolt.
Vehicles without safety belt buckle pretensioners
6. Restore the vehicle to operating condition.
1. Install the seat armrest.
WARNING: To reduce the risk of serious personal injury, read and follow all warnings, cautions, notes, and instructions in the seat removal and installation procedure.
2. Install the 60 percent bench seat.
Vehicles with safety belt buckle pretensioners
7. Restore the vehicle to operating condition.
1. Install the seat armrest.
WARNING: To reduce the risk of serious personal injury, read and follow all warnings, cautions, notes, and instructions in the seat removal and installation procedure.
2. Install the 60 percent bench seat.
WARNING: To avoid accidental deployment and possible personal injury, the backup power supply must be depleted before repairing or replacing any front or side air bag supplemental restraint system (SRS) components and before servicing, replacing, adjusting or striking components near the front or side air bag sensors, such as doors, instrument panel, console, door latches, strikers, seats and hood latches.
To deplete the backup power supply energy, disconnect the negative battery cable and wait at least one minute. Be sure to disconnect auxiliary batteries and power supplies (if equipped).
3. Disconnect the negative battery cable.
WARNING: To reduce the risk of serious personal injury, read and follow all warnings, cautions, notes, and instructions in the supplemental restraint system (SRS) deactivation/reactivation procedure.
4. Reactivate the supplemental restraint system (SRS).
5. Connect the negative battery cable.
6. With all restraint system diagnostic tools removed, prove out the supplemental restraint system (SRS).
All vehicles
8. Check the active restraint system for correct operation.
