Seat Track Front - 60 Percent Bench Removal/Installation
SEAT TRACK FRONT - 60 PERCENT BENCH REMOVAL/INSTALLATIONRemoval Note
WARNING:
- Always wear safety glasses when repairing an air bag supplemental restraint system (SRS) vehicle and when handling an air bag module. This will reduce the risk of injury in the event of an accidental deployment.
- After deployment, the air bag surface can contain deposits of sodium hydroxide, a product of the gas generant combustion that is irritating to the skin. Wash your hands with soap and water afterwards.
- Never probe the connectors on the air bag module. Doing so can result in air bag deployment, which can result in personal injury.
Vehicles with safety belt buckle pretensioners
1. Prepare the vehicle for seat track removal.
WARNING: To avoid accidental deployment and possible personal injury, the backup power supply must be depleted before repairing or replacing any front or side air bag supplemental restraint system (SRS) components and before servicing, replacing, adjusting or striking components near the front or side air bag sensors, such as doors, instrument panel, console, door latches, strikers, seats and hood latches.
To deplete the backup power supply energy, disconnect the negative battery cable and wait at least one minute. Be sure to disconnect auxiliary batteries and power supplies (if equipped).
1. Disconnect the negative battery cable.
WARNING: To reduce the risk of serious personal injury, read and follow all warnings, cautions, notes, and instructions in the supplemental restraint system (SRS) deactivation/reactivation procedure.
2. Deactivate the supplemental restraint system (SRS).
WARNING: To reduce the risk of serious personal injury, read and follow all warnings, cautions, notes, and instructions in the seat removal and installation procedure.
3. Remove the affected seat.
WARNING: To reduce the risk of serious personal injury, read and follow all warnings, cautions, notes, and instructions in the safety belt buckle and pretensioner removal and installation procedure.
4. Remove the safety belt buckle and pretensioner.
5. Remove the seat armrest.
6. Remove the front seat backrest.
Vehicles without safety belt buckle pretensioners
2. Prepare the vehicle for seat track removal.
WARNING: To reduce the risk of serious personal injury, read and follow all warnings, cautions, notes, and instructions in the seat removal and installation procedure.
1. Remove the affected seat.
2. Remove the seat armrest.
3. Remove the front seat backrest.

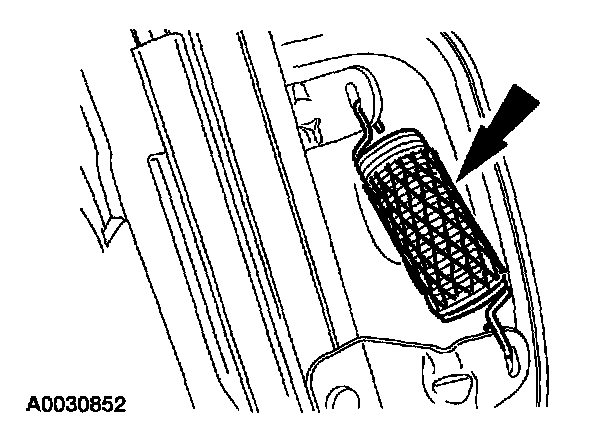

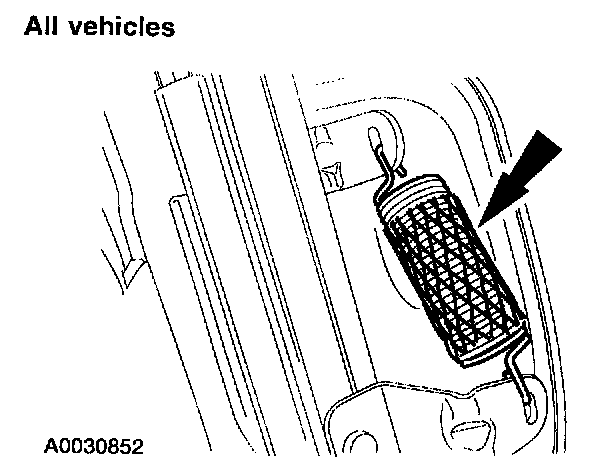

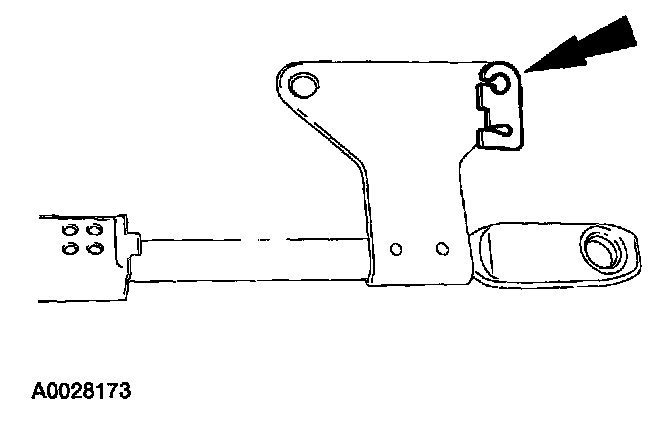

3. Remove the spring.

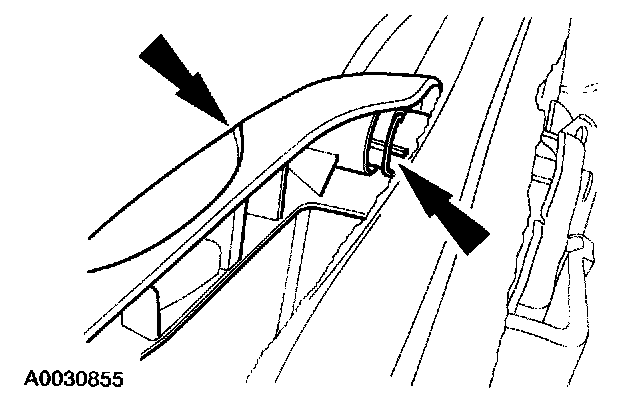

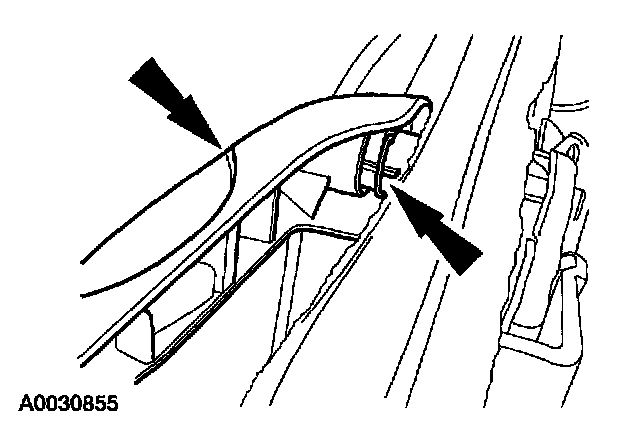

4. Remove the spring clip and the recliner handle.
5. Remove the push nuts.
6. Remove the seat track adjustment lever.
1. Remove one side of the seat track adjustment lever at a time.

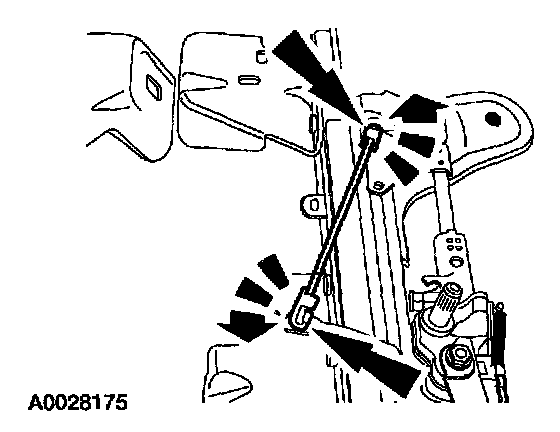

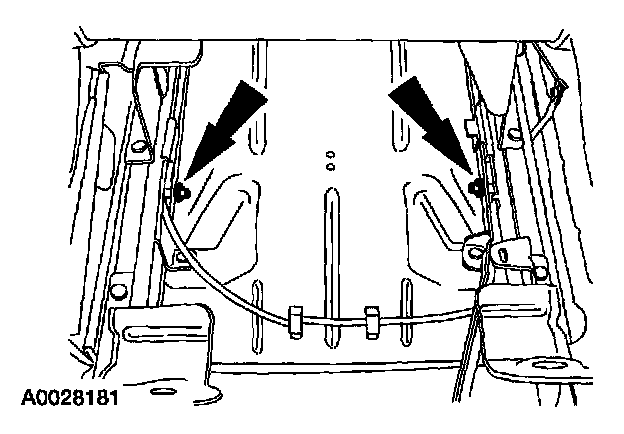

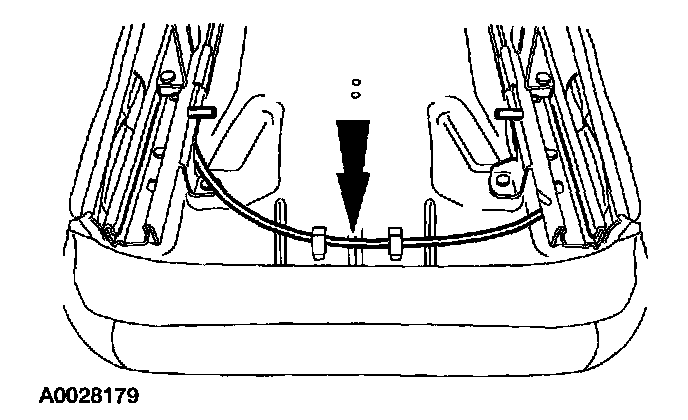

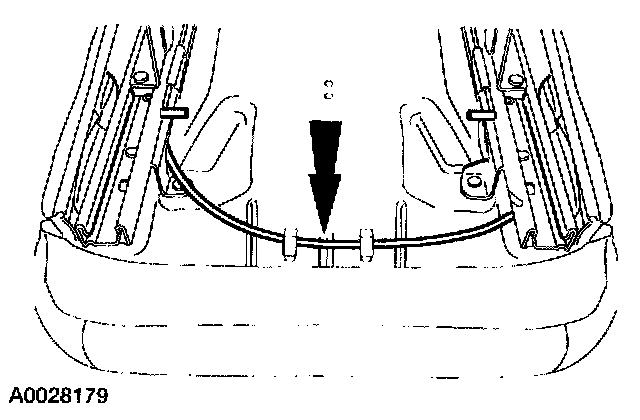

7. Detach the seat backrest recliner link cable.

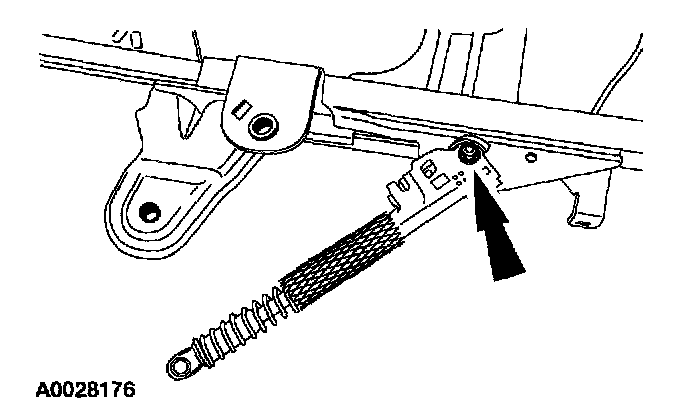

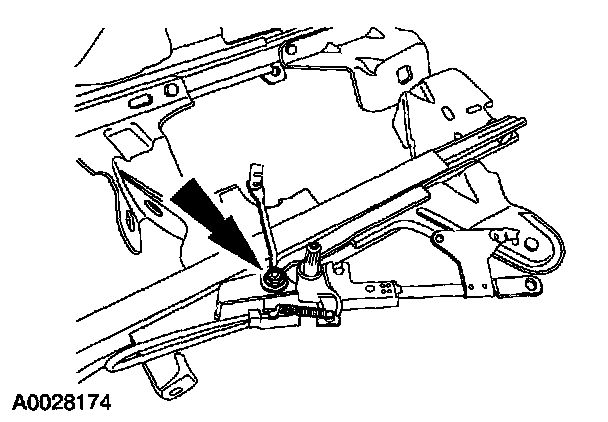

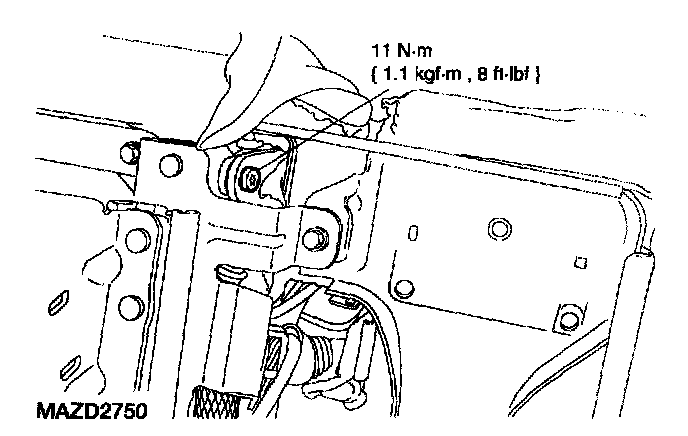

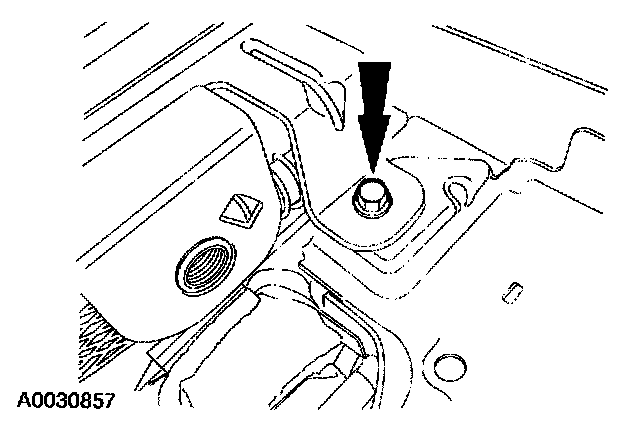

8. Remove the bolt.

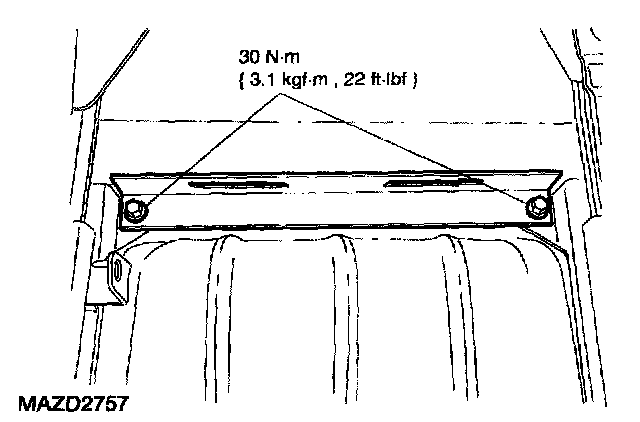

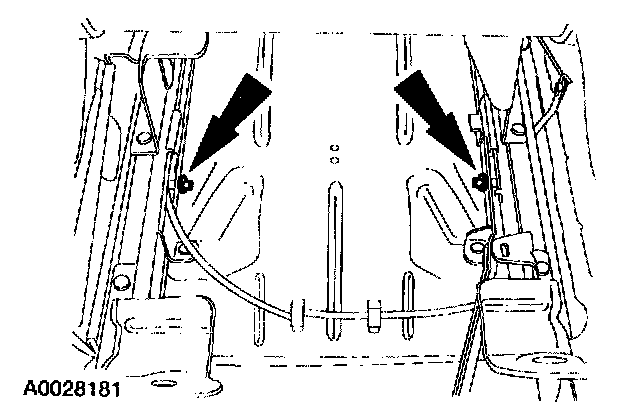

9. Remove the bolts and the bracket.

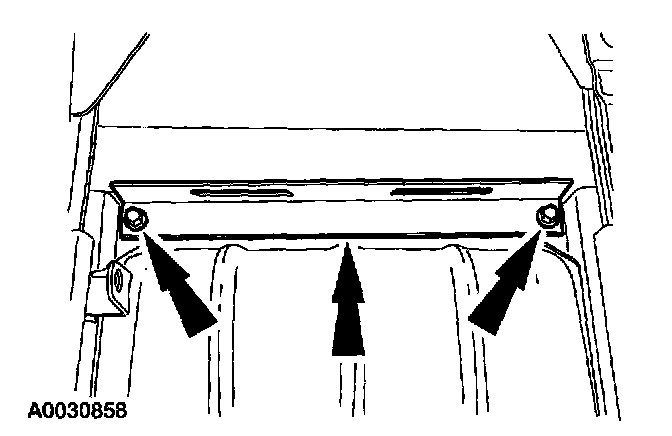

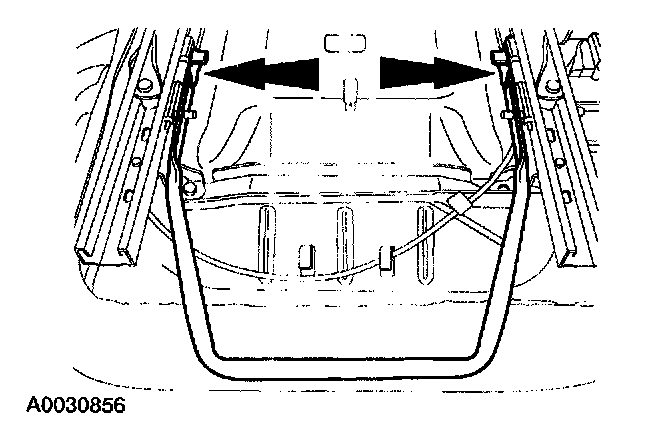

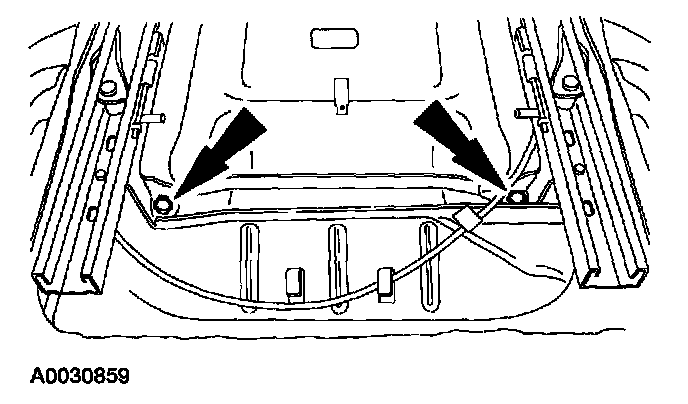

10. Remove the bolts.

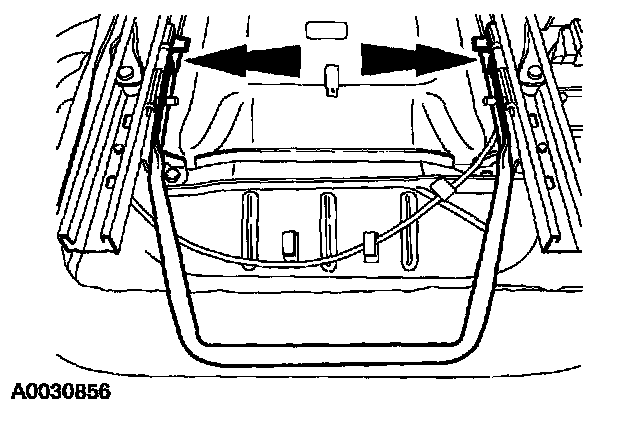

11. Remove the LH and RH seat tracks as an assembly.

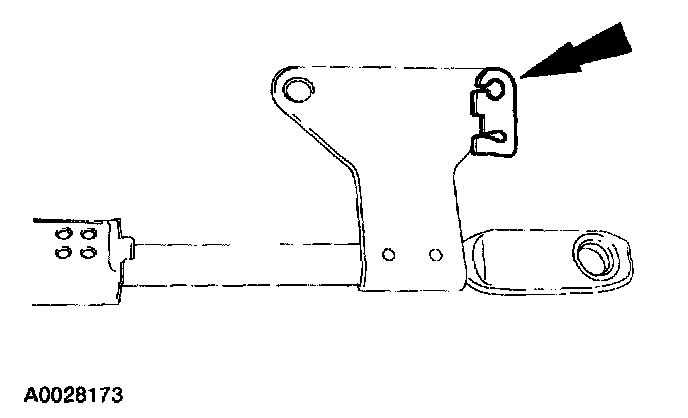

12. On supercab vehicles, unlatch the plastic locks. Remove the linkage.
13. Remove the two plastic locks.

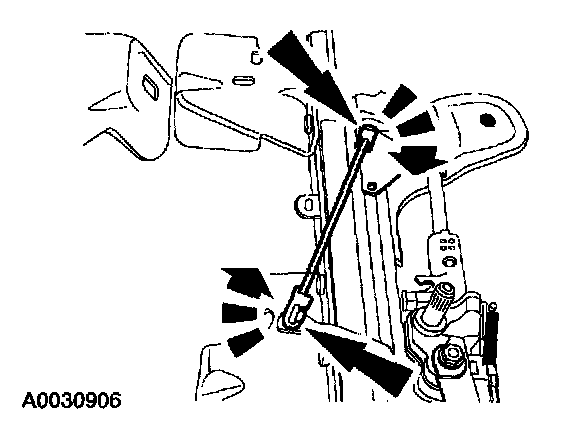

14. On all vehicles, remove the nuts and the outboard recliner.
15. Remove the nut and the inboard recliner.
Installation Note
WARNING: To reduce the risk of serious personal injury, read and follow warnings, cautions, and notes at the beginning of the removal procedure.
All vehicles
1. Install the inboard recliner and the nut.
2. Install the outboard recliner and the nut.
3. On supercab vehicles, install the two plastic locks.
4. Install the linkage. Latch the plastic locks.
5. On all vehicles, install the LH and RH seat tracks as an assembly.

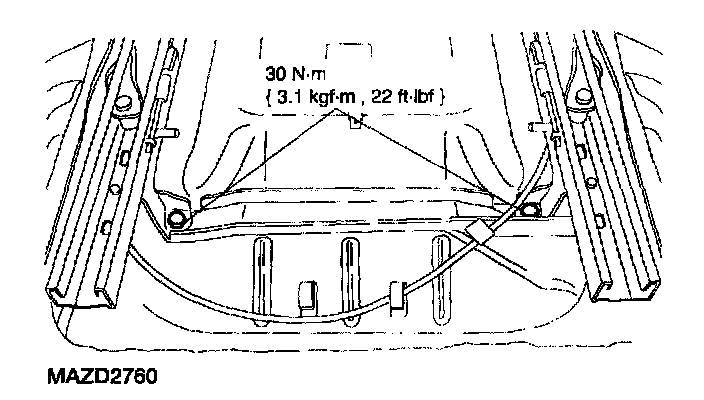

6. Install the bolts.
7. Install the bracket and the bolts.

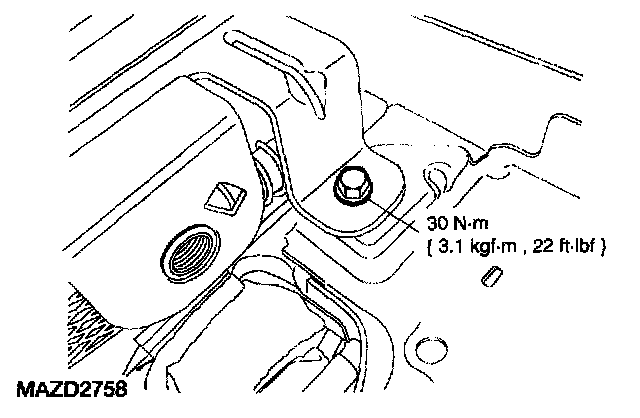

8. Install the bolt.
9. Install the seat backrest recliner link cable.
10. Install the seat track adjustment lever.
1. Install one side of the seat track adjustment lever at a time.
11. Install the push nuts.
12. Install the spring clip on the recliner handle. Install the recliner handle.
13. Install the spring.
Vehicles without safety belt buckle pretensioners
14. Restore the vehicle to operating condition.
1. Install the front seat backrest.
2. Install the seat armrest.
WARNING: To reduce the risk of serious personal injury, read and follow all warnings, cautions, notes, and instructions in the seat removal and installation procedure.
3. Install the 60 percent bench seat.
Vehicles with safety belt buckle pretensioners
15. Restore the vehicle to operating condition.
1. Install the front seat backrest.
2. Install the seat armrest.
WARNING: To reduce the risk of serious personal injury, read and follow all warnings, cautions, notes, and instructions in the safety belt buckle and pretensioner removal and installation procedure.
3. Install the safety belt buckle and pretensioner.
WARNING: To reduce the risk of serious personal injury, read and follow all warnings, cautions, notes, and instructions in the seat removal and installation procedure.
4. Install the 60 percent bench seat.
WARNING: To avoid accidental deployment and possible personal injury, the backup power supply must be depleted before repairing or replacing any front or side air bag supplemental restraint system (SRS) components and before servicing, replacing, adjusting or striking components near the front or side air bag sensors, such as doors, instrument panel, console, door latches, strikers, seats and hood latches.
To deplete the backup power supply energy, disconnect the negative battery cable and wait at least one minute. Be sure to disconnect auxiliary batteries and power supplies (if equipped).
5. Disconnect the negative battery cable.
WARNING: To reduce the risk of serious personal injury, read and follow all warnings, cautions, notes, and instructions in the supplemental restraint system (SRS) deactivation/reactivation procedure.
6. Reactivate the supplemental restraint system (SRS).
7. Connect the negative battery cable.
8. With all restraint system diagnostic tools removed, prove out the supplemental restraint system (SRS).
All vehicles
16. Check the active restraint system for correct operation.
