Home >> Mazda Truck >> 2003 >> B2300 2WD L4-2.3L VIN D >> Repair and Diagnosis >> Body and Frame >> Locks >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Pinpoint Tests >> Pinpoint Test 2

Pinpoint Test 2

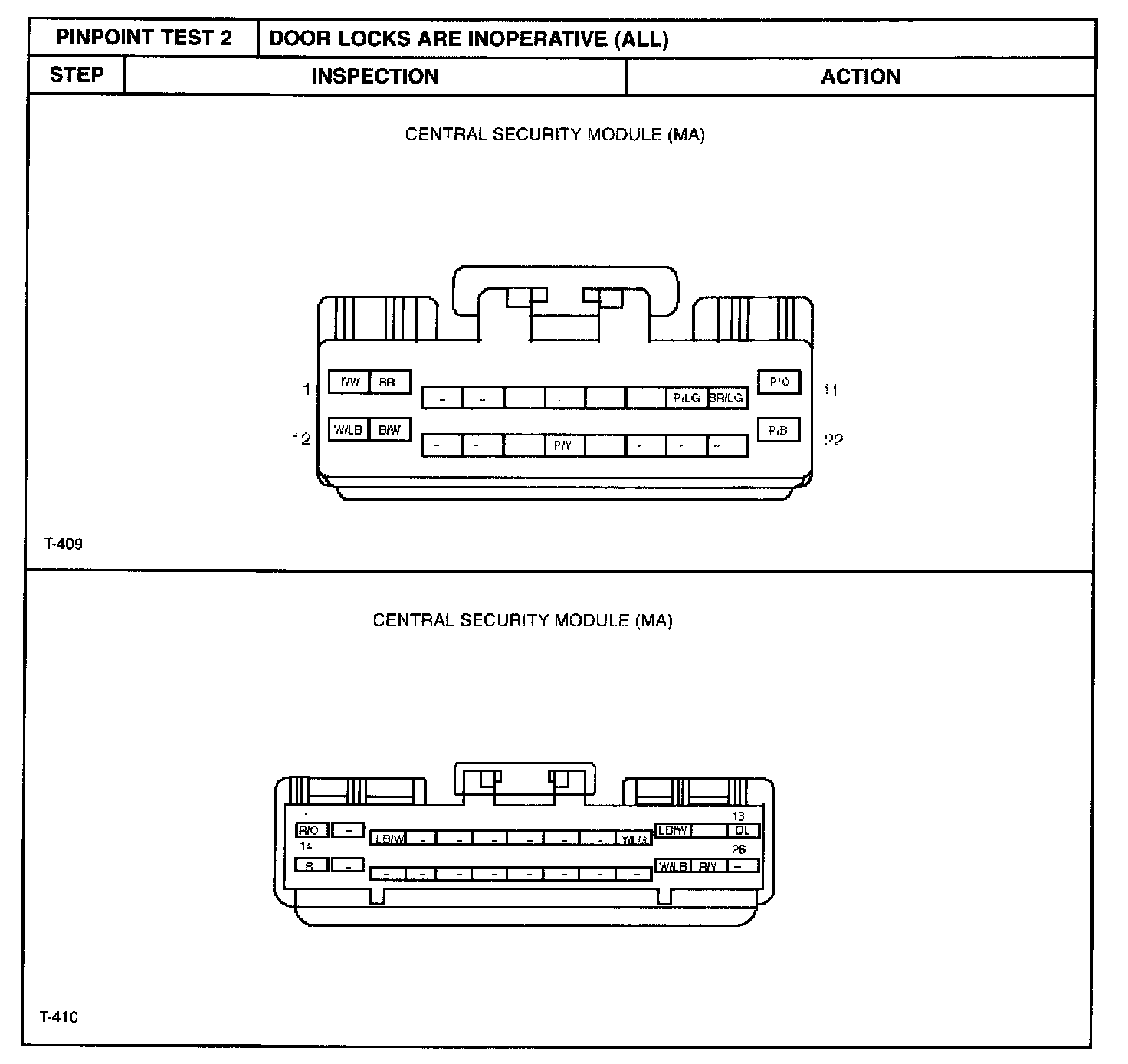

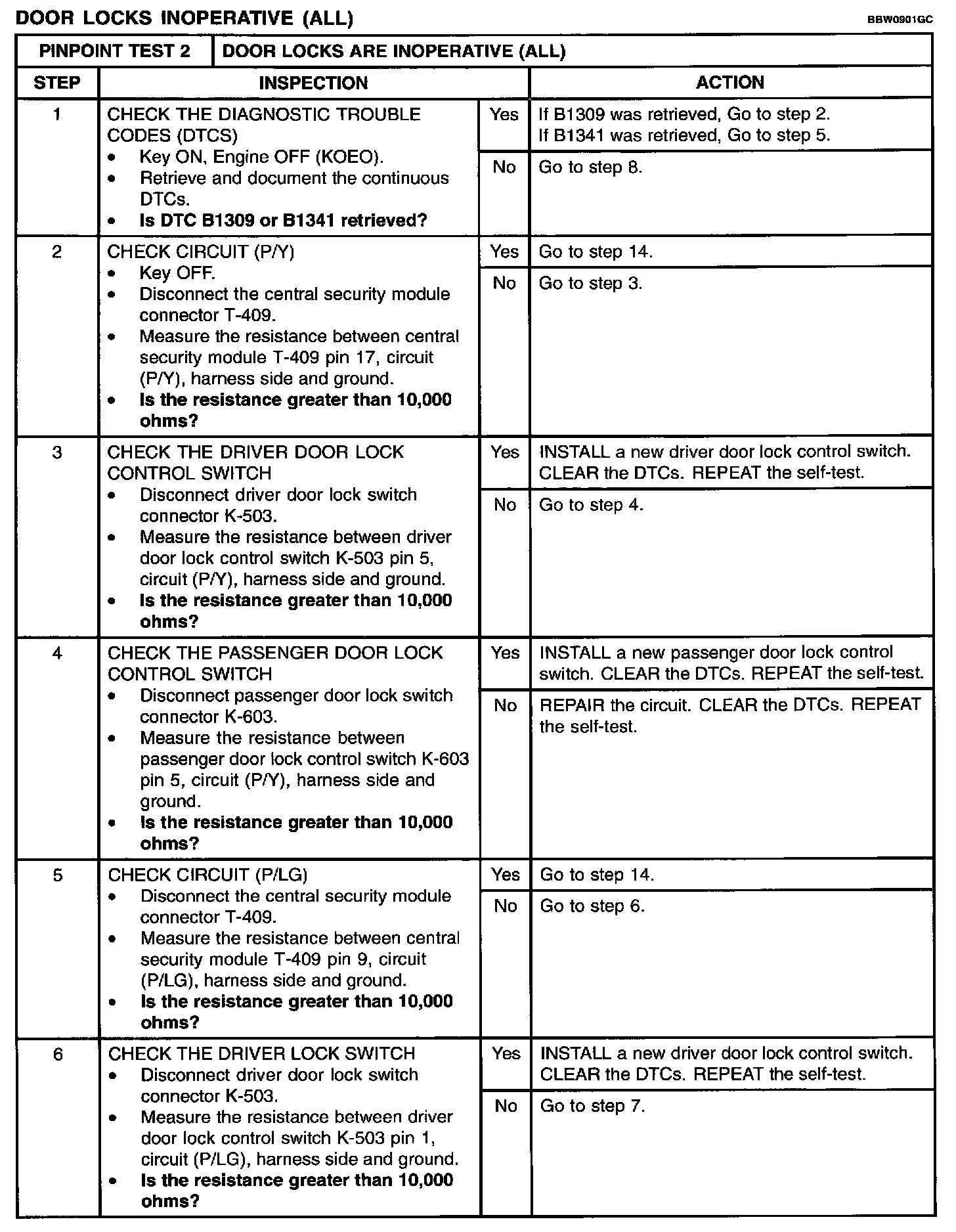

Step 1 - 6:

Step 7 - 12:

Step 13 - 14:
