Regular Cab

B-PILLAR TRIM (REGULAR CAB) REMOVAL/INSTALLATION

1. Remove the scuff plate.
2. For right hand B-pillar trim, remove the jack handle carrier cover and carrier.

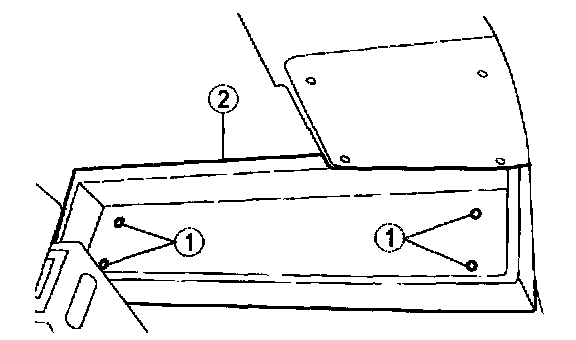

3. For left hand B-pillar trim, remove the package tray mat (1) and package tray (2).
4. Remove the seat belt D-ring cover and nut
5. Disconnect seat belt D-ring.
6. Disconnect the seat belt anchor.

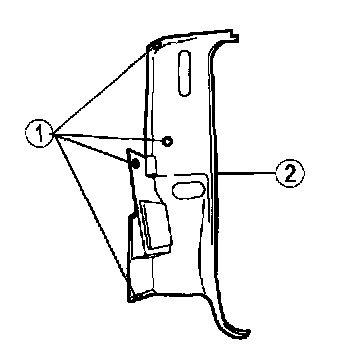

7. Remove the pushpins (1) and reposition B-pillar trim (2).
8. Disconnect the rear speaker connector.
9. Remove the B-pillar trim by feeding the seat belt webbing through the B-pillar trim.
10. Install in reverse order of removal.
