4-Door
B-PILLAR TRIM (4-DOOR) REMOVAL/INSTALLATION1. Remove the rear seats.
2. Remove the scuff plate.
3. Remove the upper B-pillar trim.

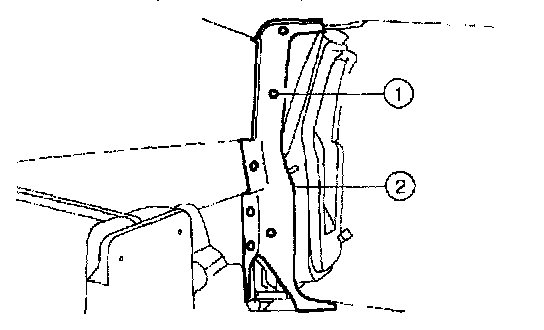

4. Remove the push pins (1).
5. Remove the B-pillar trim (2).
6. Install in reverse order of removal.
1. Remove the rear seats.
2. Remove the scuff plate.
3. Remove the upper B-pillar trim.
4. Remove the push pins (1).
5. Remove the B-pillar trim (2).
6. Install in reverse order of removal.
