Cargo Cover: Service and Repair

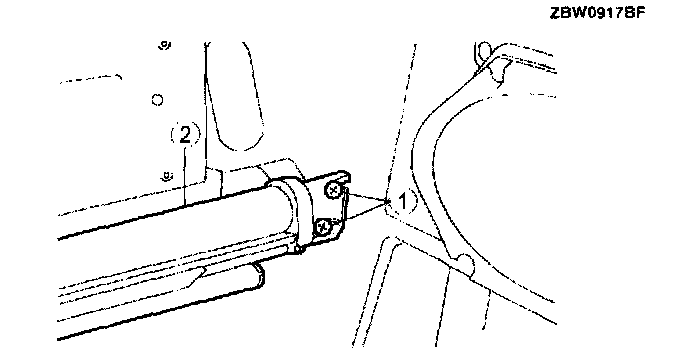

CARGO SHADE REMOVAL/INSTALLATION1. Remove the B-pillar trim.
2. Remove the screws (1) (two at each end).
3. Remove the cargo shade (2).
4. Install in reverse order of removal
1. Remove the B-pillar trim.
2. Remove the screws (1) (two at each end).
3. Remove the cargo shade (2).
4. Install in reverse order of removal
