Grille Opening Panel Reinforcement Removal/Installation
GRILLE OPENING PANEL REINFORCEMENT REMOVAL/INSTALLATION1. Remove the radiator grille.

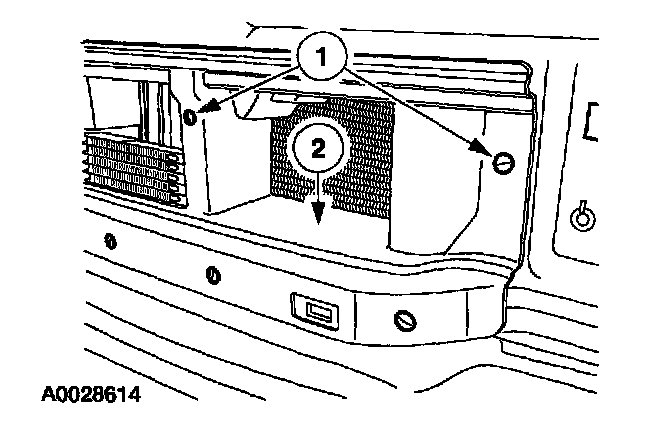

2. Remove the air deflector.
1. Remove the seven pushpins.
2. Remove the air deflector.
NOTE: Left side shown, right side similar.

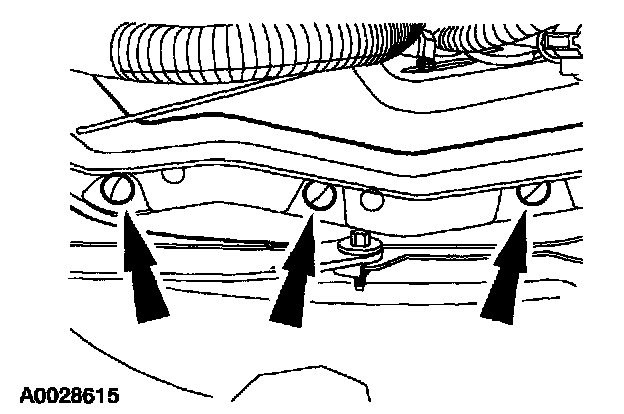

3. From beneath the vehicle, remove the six pushpins.

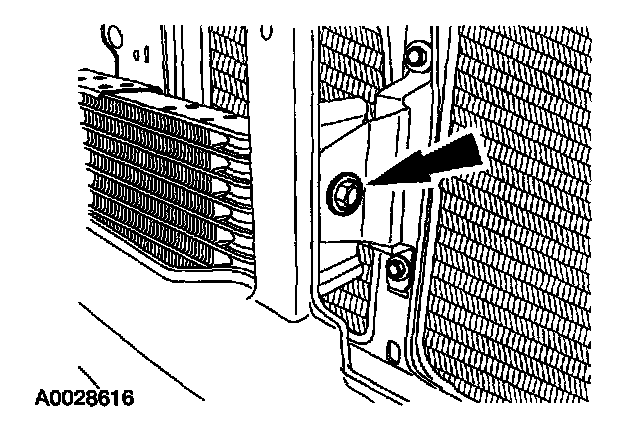

4. Remove the bolt.
NOTE: Left side shown, right side similar.

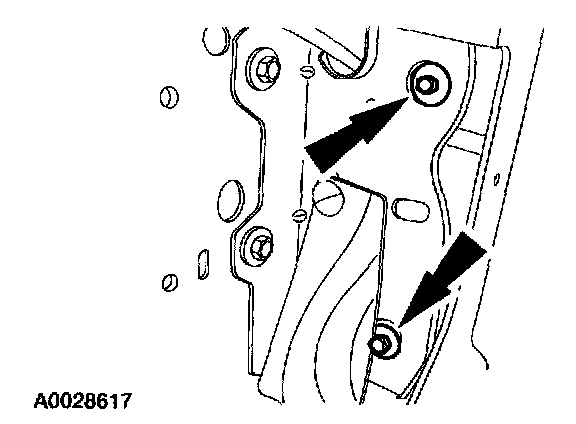

5. Remove the four bolts.
NOTE: Left side shown, right side similar.

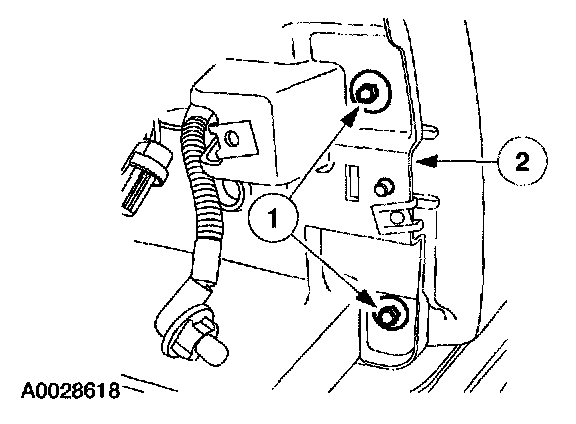

6. Remove the radiator grille opening panel reinforcement.
1. Remove the four bolts.
2. Remove the reinforcement panel.
7. Install in reverse order of removal.
