Rear Bumper: Service and Repair

BUMPER REAR REMOVAL/INSTALLATION

1. Disconnect the trailer tow wiring harness from the rear bumper.
2. Disconnect the license plate lamp electrical connector.

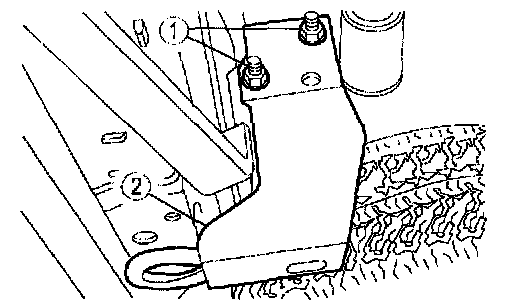

3. If equipped, remove the nuts (1) and rear tow hook (2).

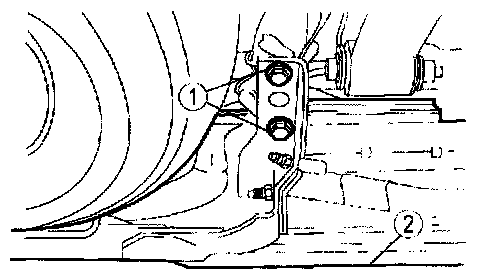

4. Remove the four rear bumper bracket to frame bolts (1).
5. Remove the rear bumper (2).

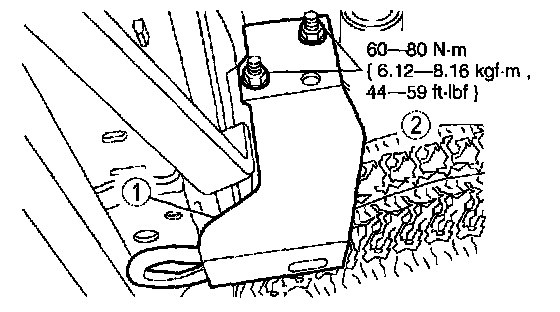

6. Install in reverse order of removal.
