Radio, Stereo, and Compact Disc: Service and Repair

AUDIO UNIT REMOVAL/INSPECTION

1. Disconnect the negative battery cable.

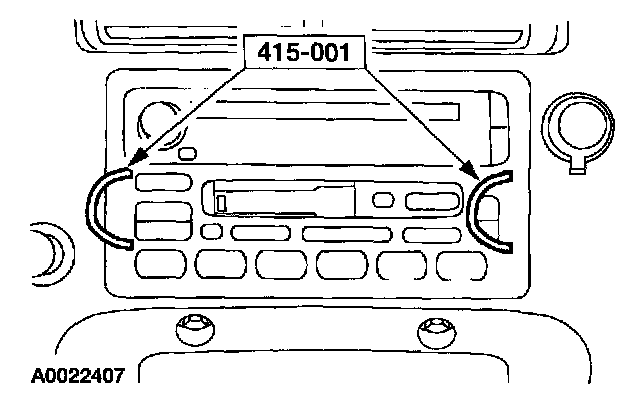

2. Using the special tool, remove the audio unit.

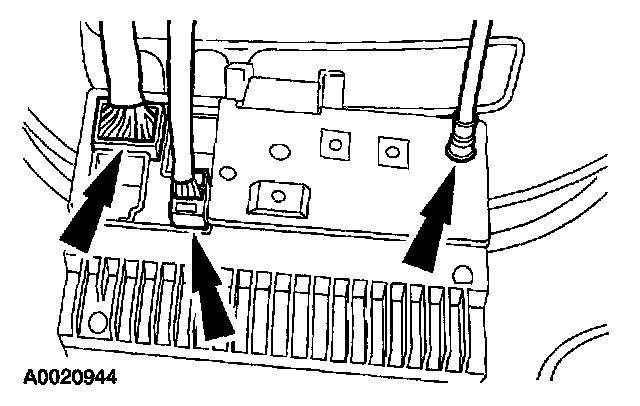

3. Disconnect the connectors.
4. To install, reverse the removal procedure.
