Home >> Mazda Truck >> 2003 >> B2300 2WD L4-2.3L VIN D >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> P Code Charts >> P1132

P1132

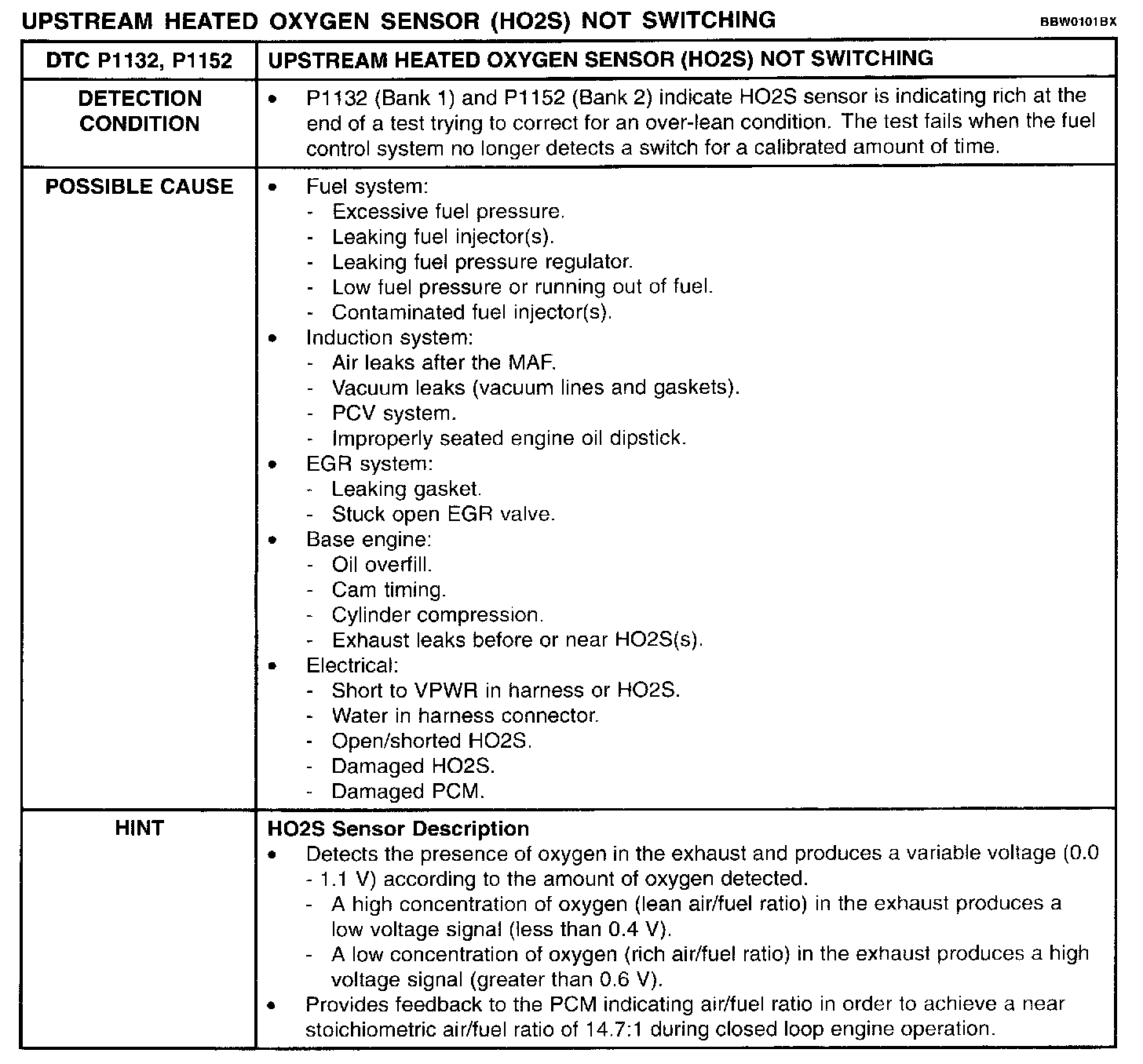

Detection Condition / Possible Cause:

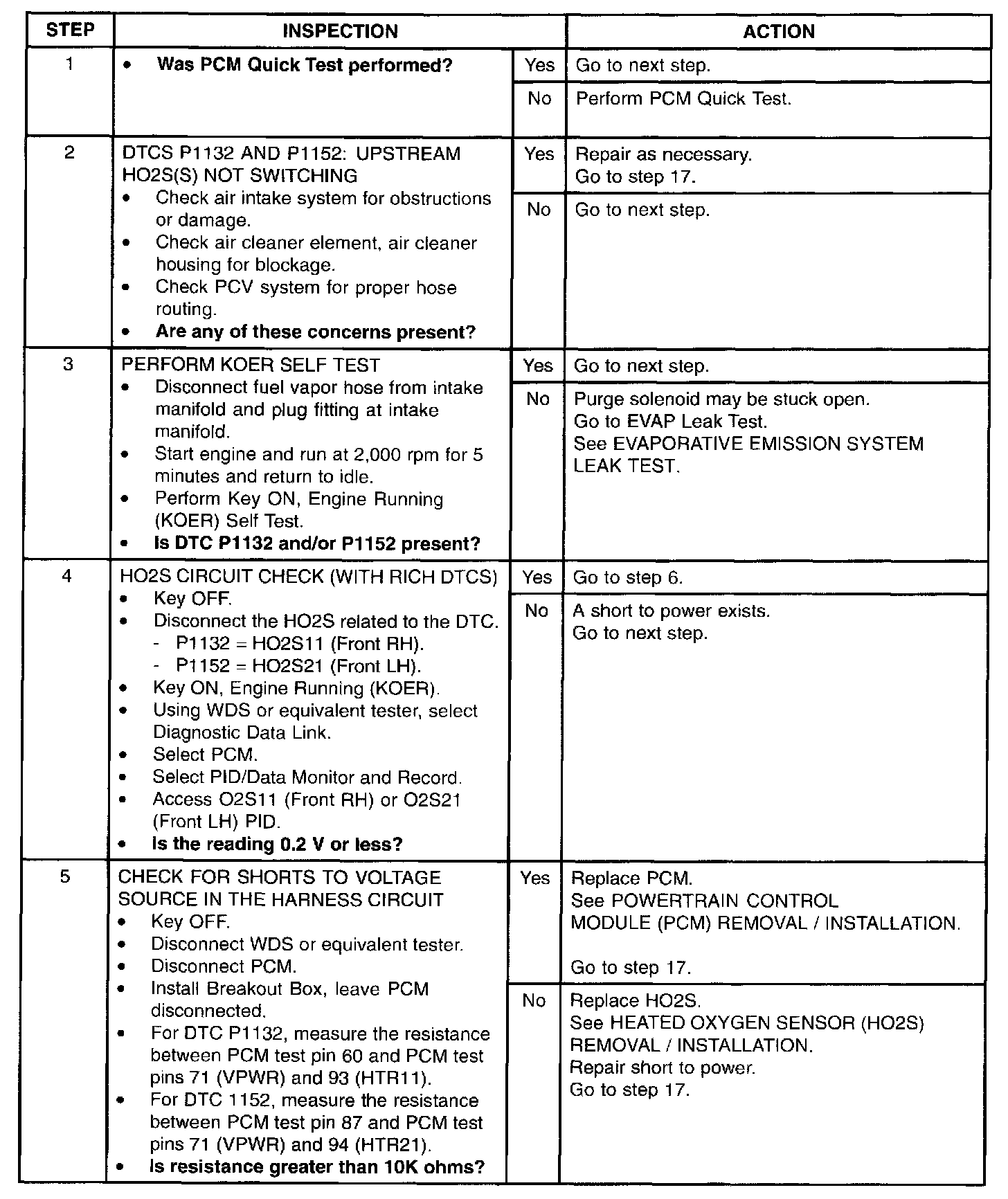

Step 1 - 5:

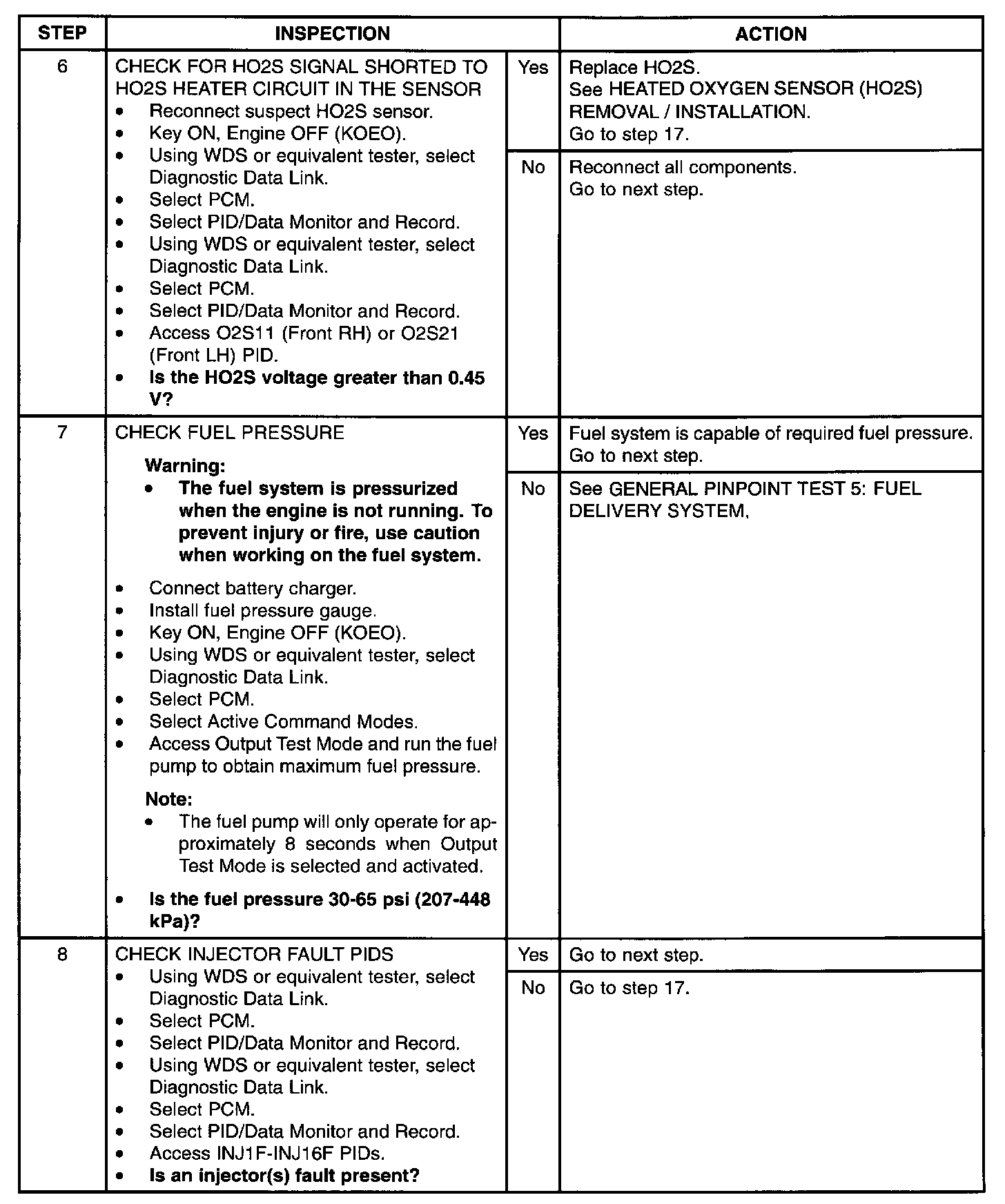

Step 6 - 8:

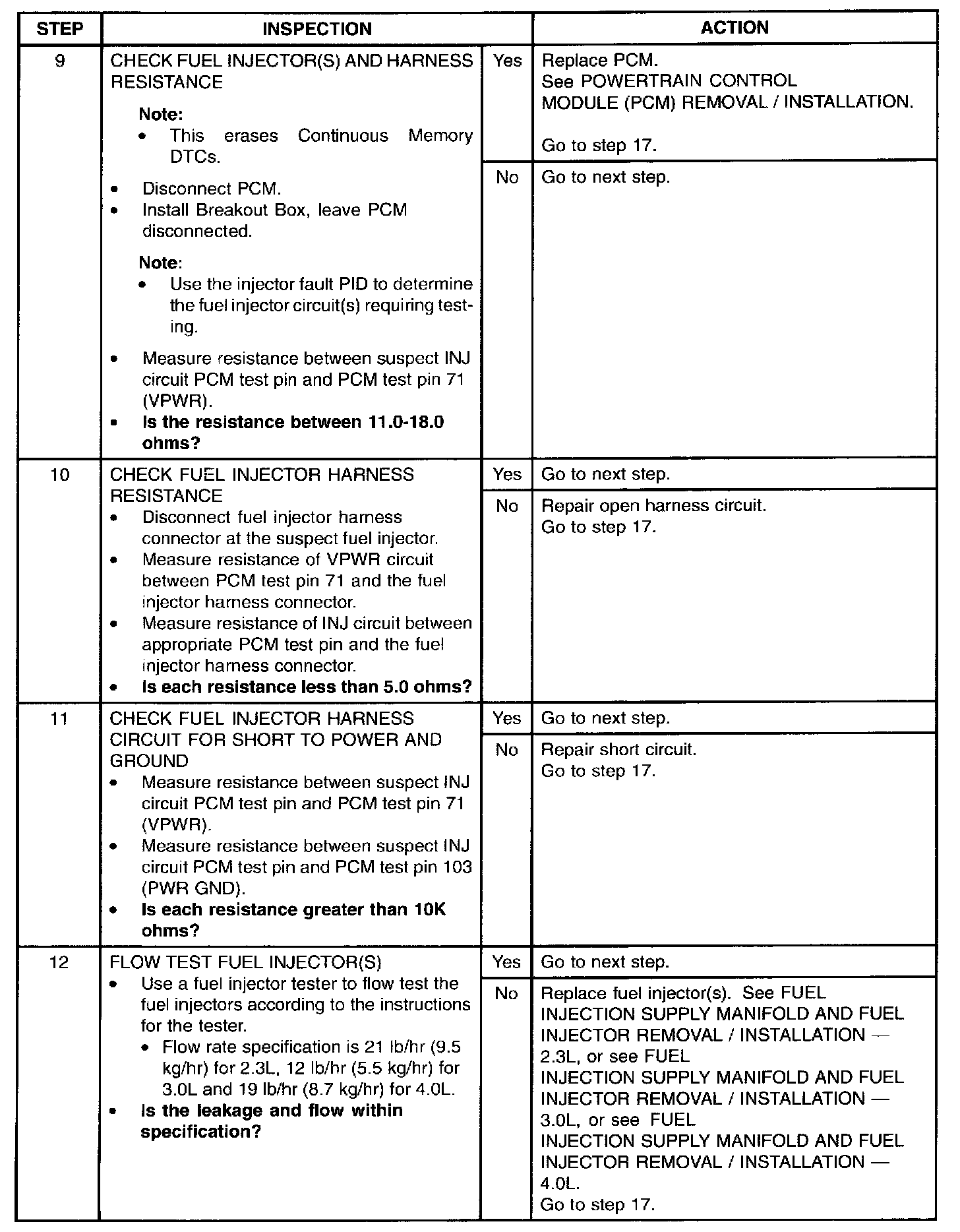

Step 9 - 12:

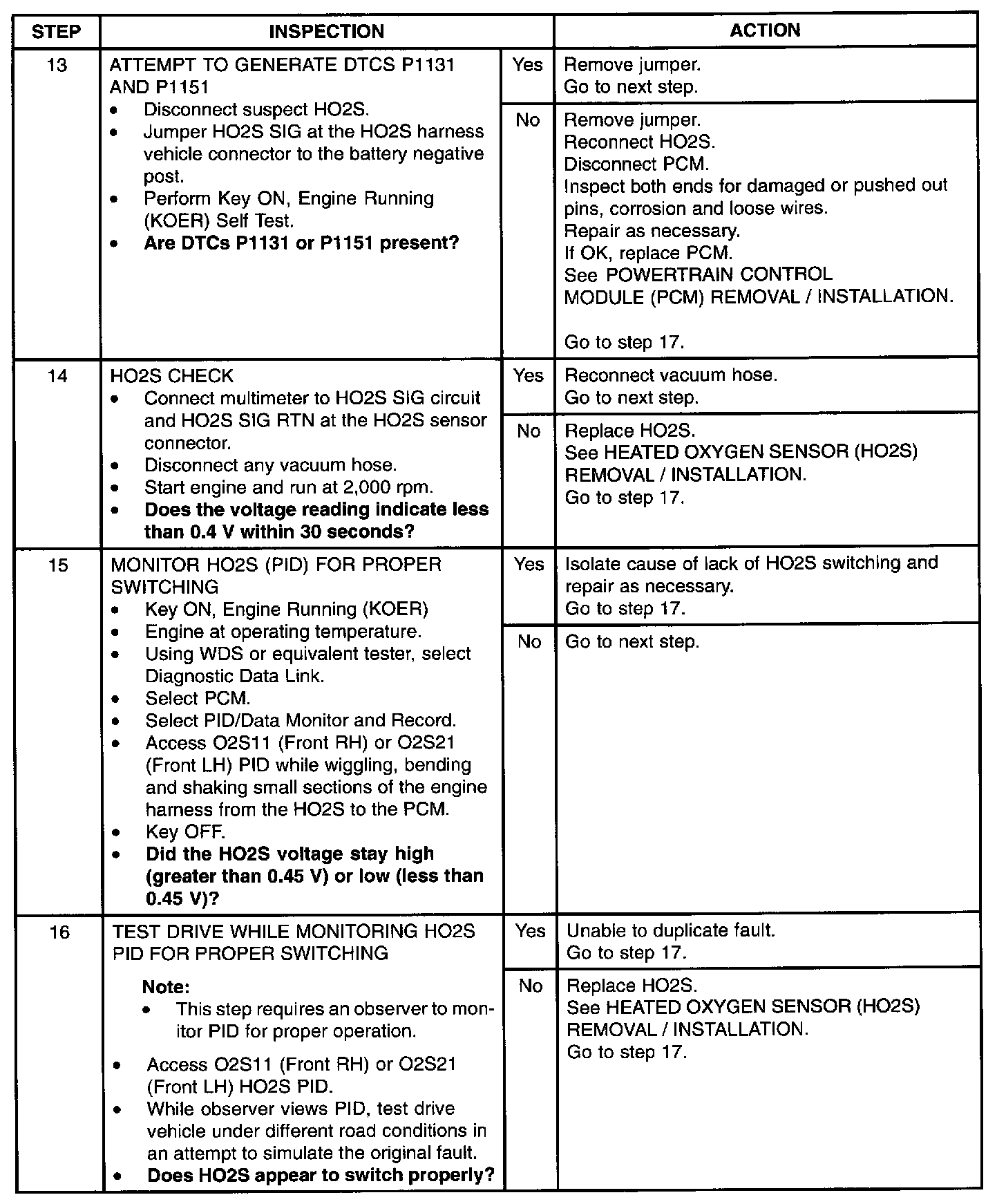

Step 13 - 16:

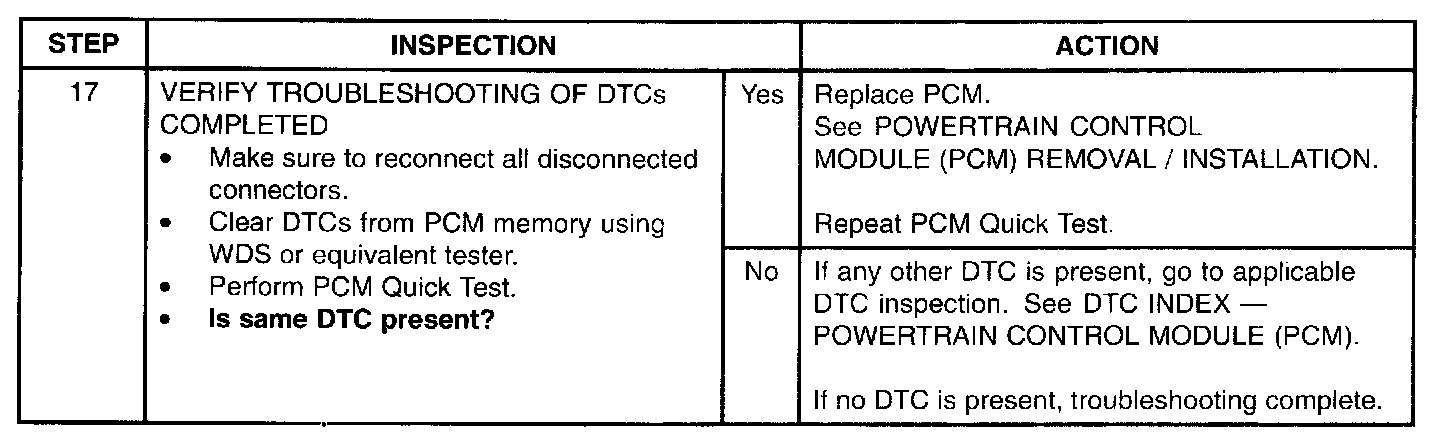

Step 17:
