P1130

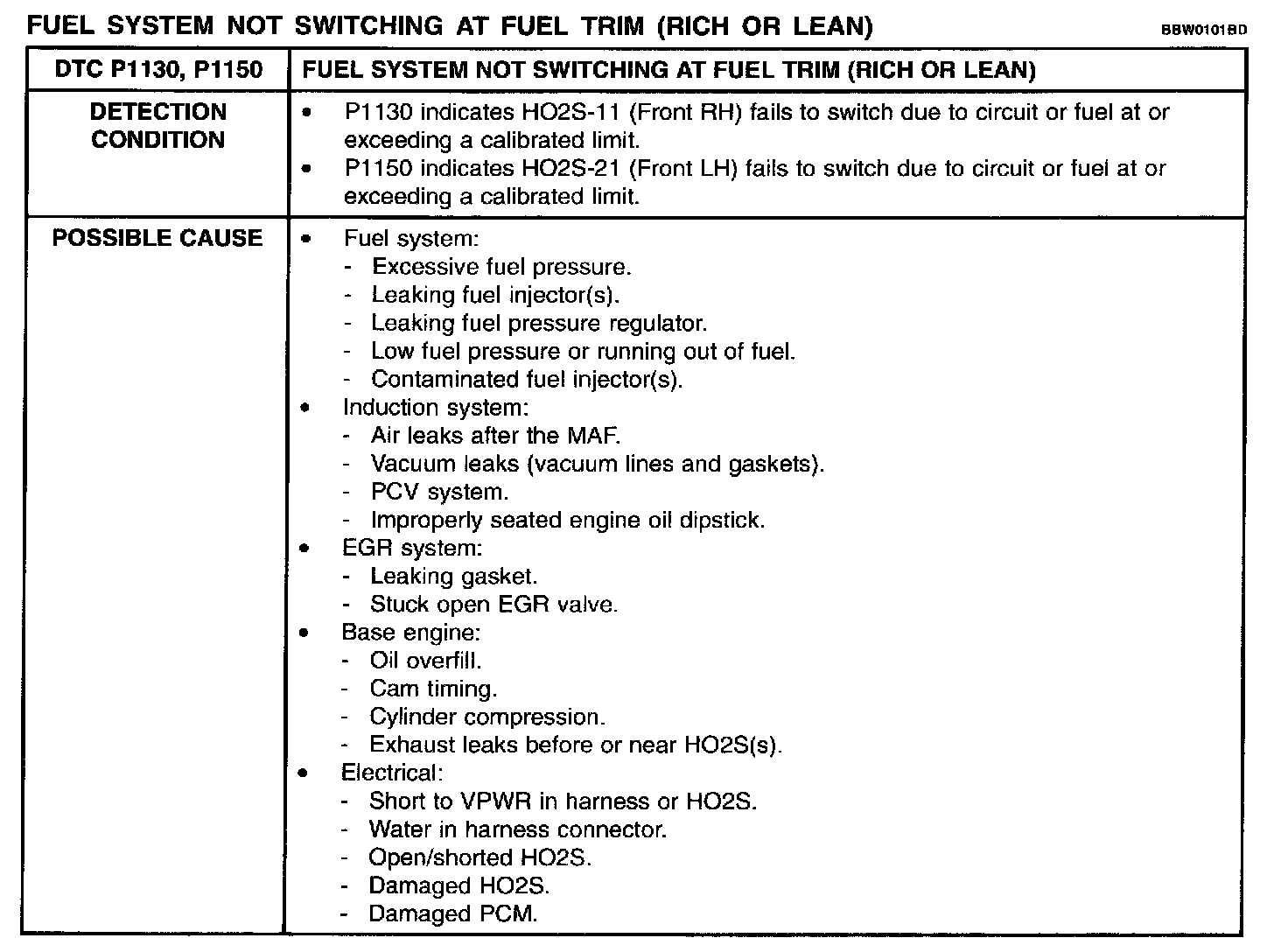

Detection Condition / Possible Cause:

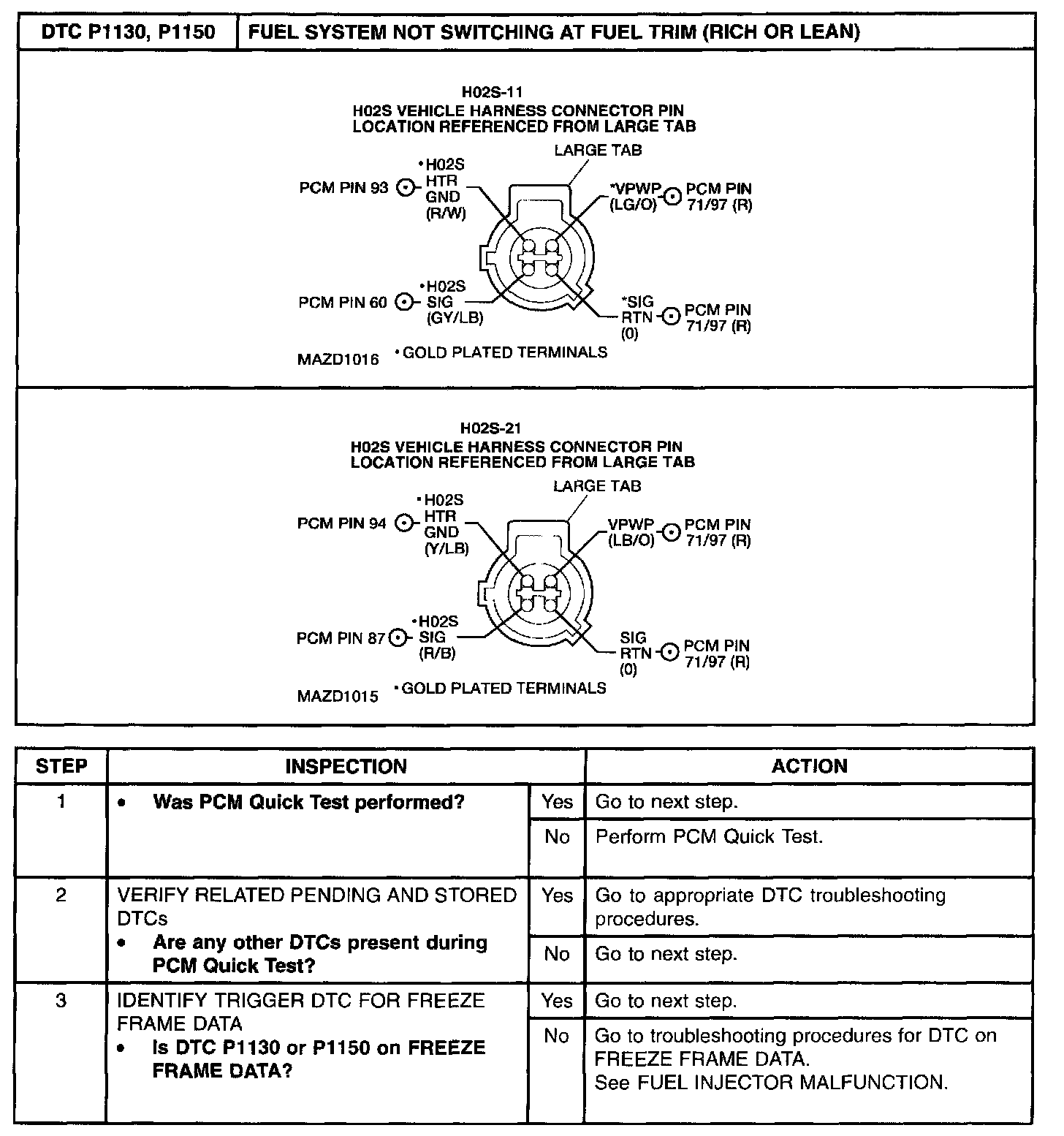

Step 1 - 3:




Step 4 - 6:

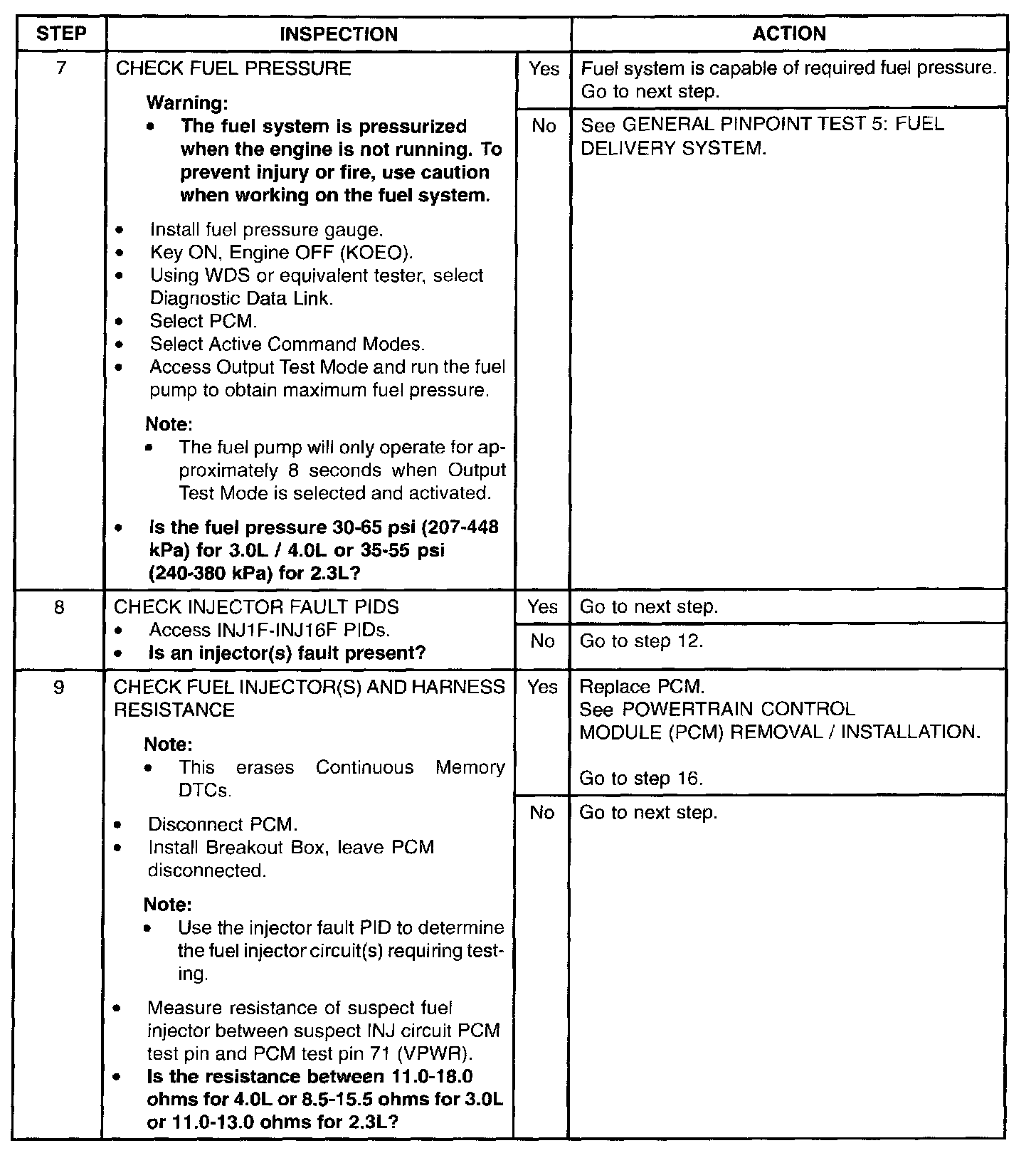

Step 7 - 9:

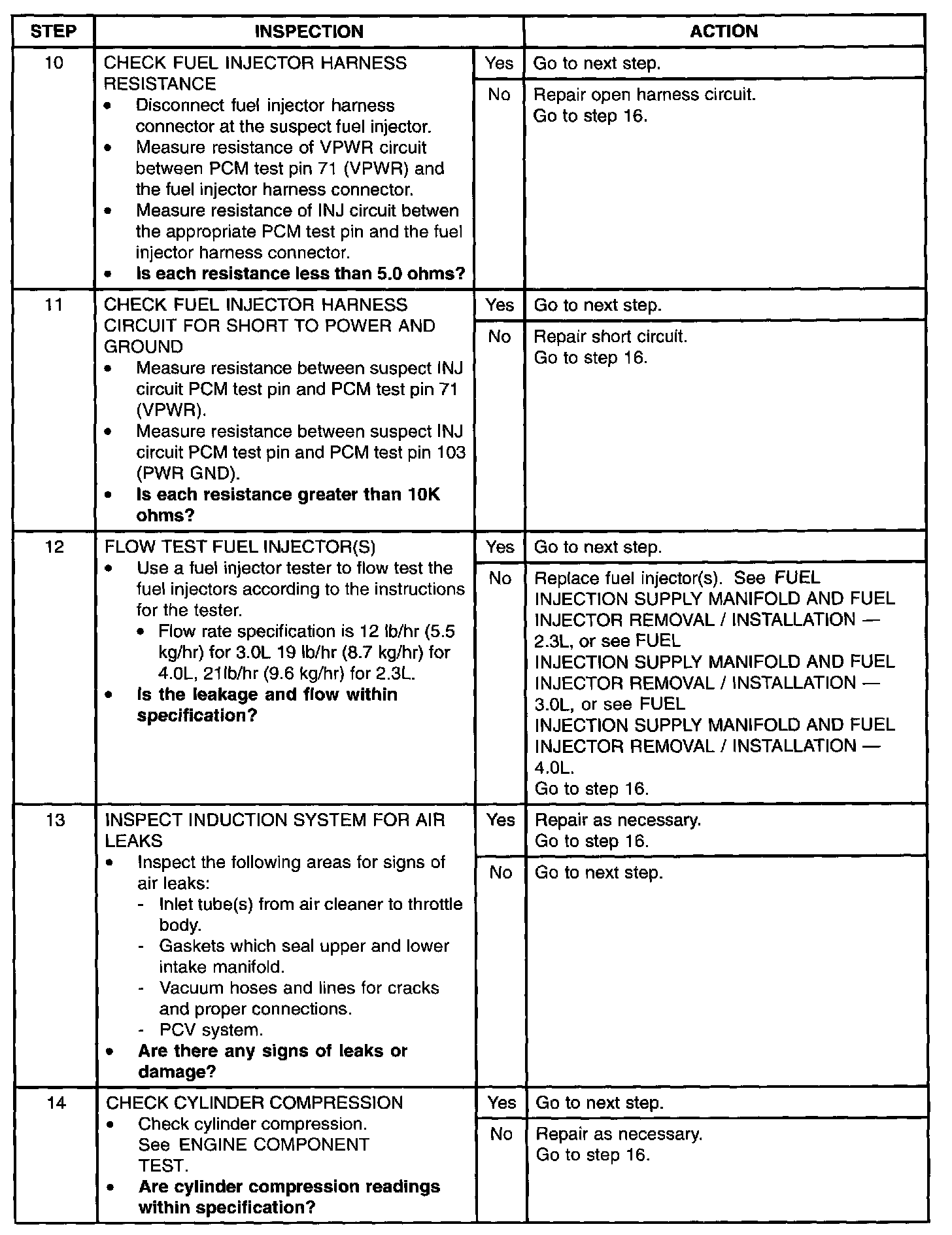

Step 10 - 14:

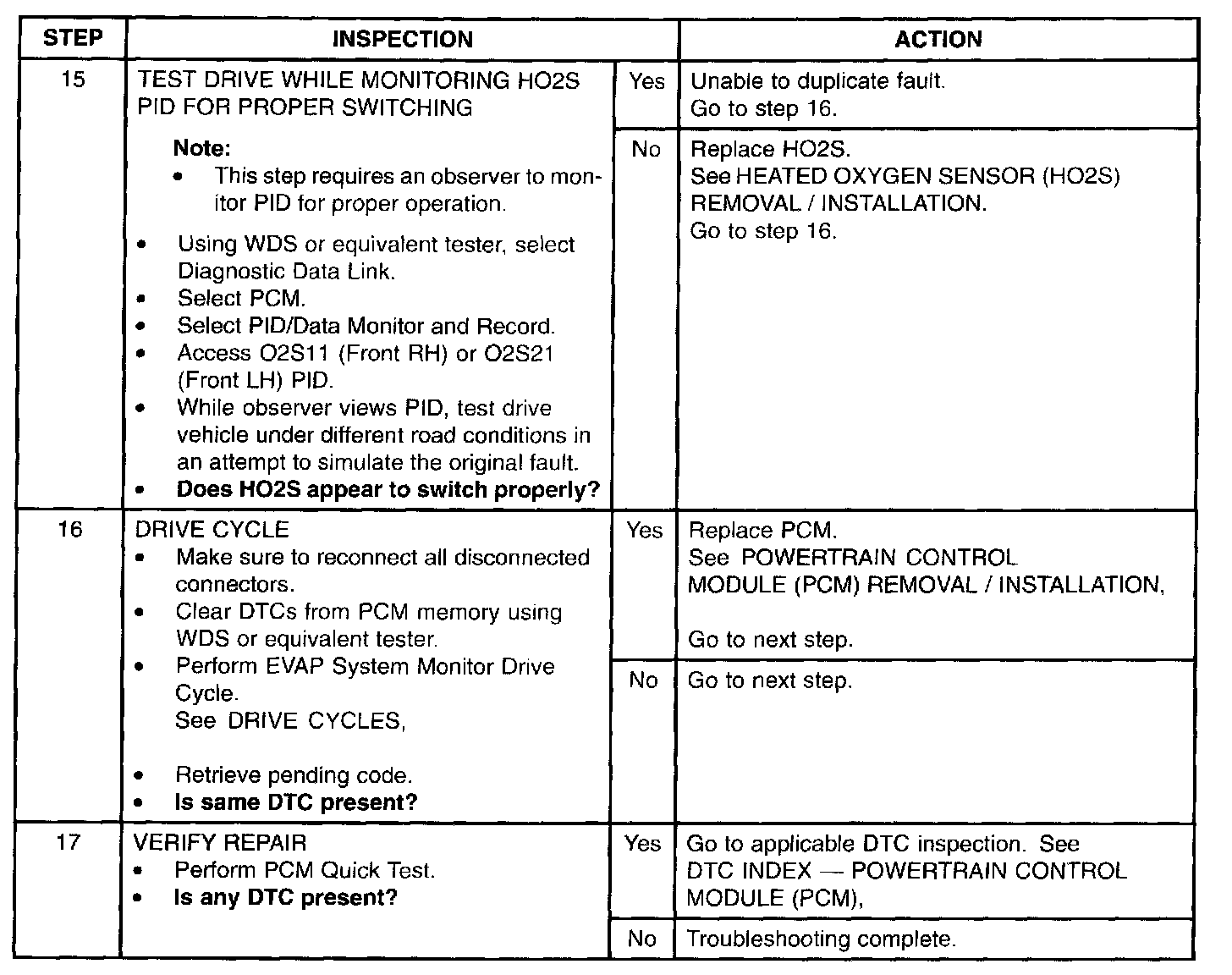

Step 15 - 17:
