Mazda Truck
>>
2003
>>
B2300 2WD L4-2.3L VIN D
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
P Code Charts
>>
P0109
P0109

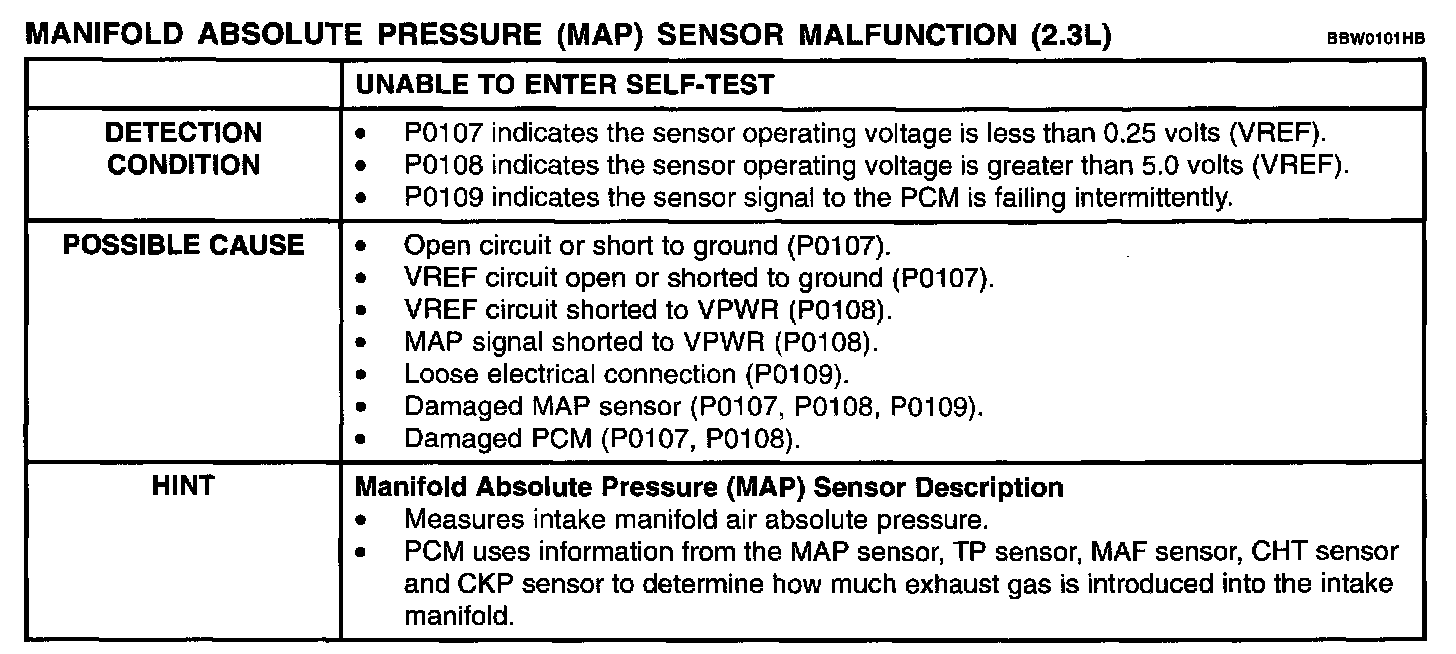

Detection Condition / Possible Cause:

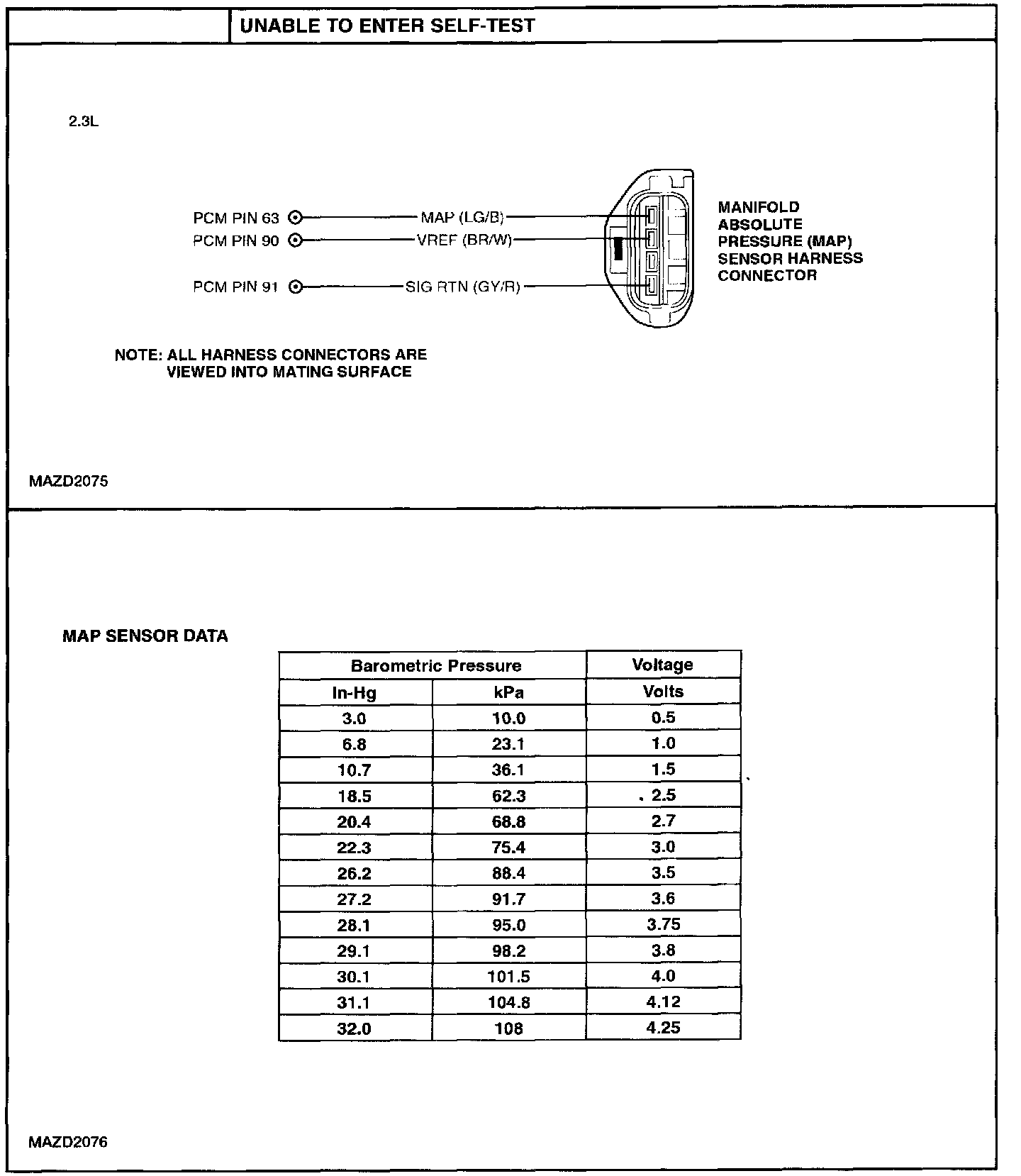

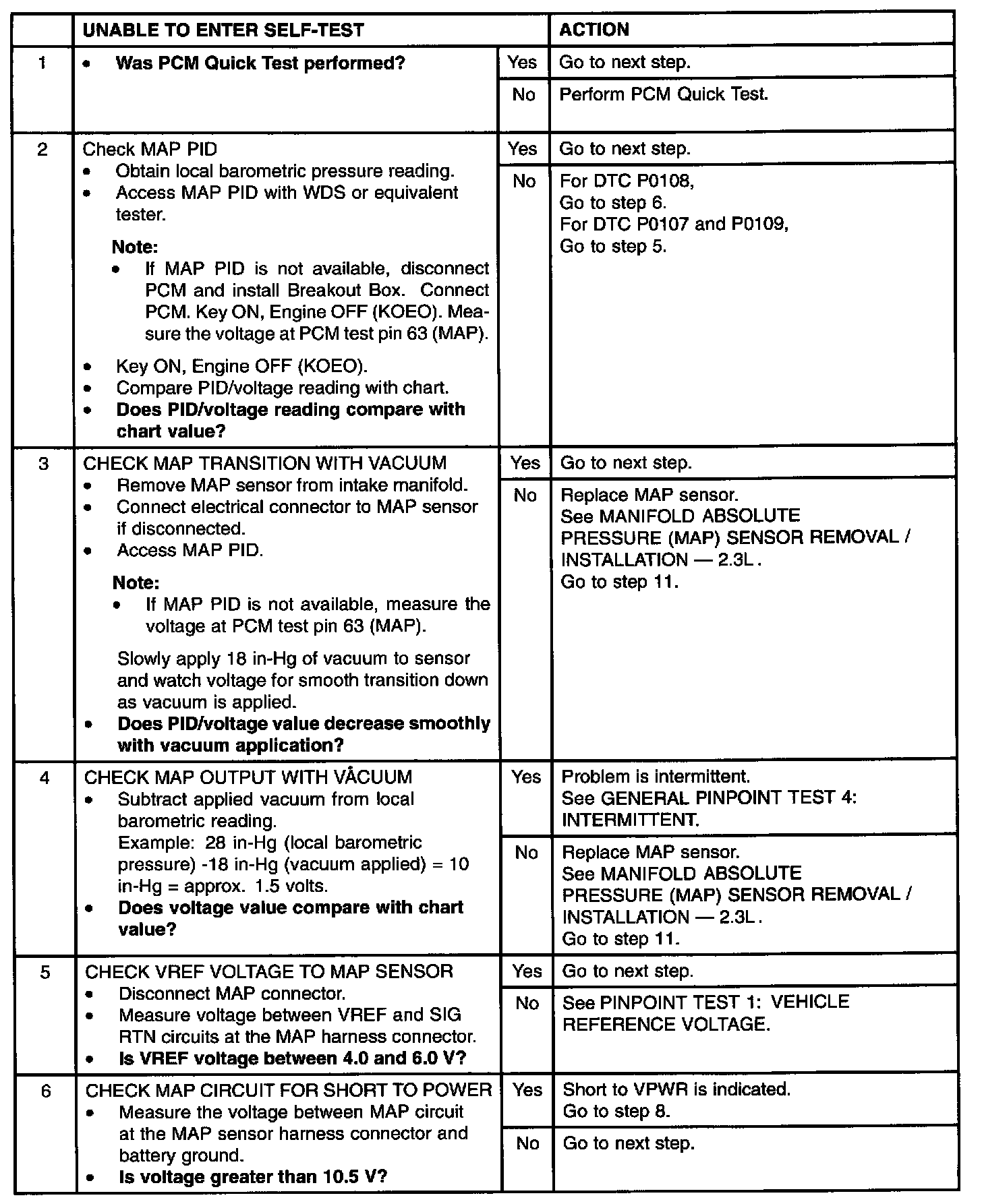

Step 1 - 6:
Step 7 - 11:
