Transmissions Control Systems

DTC INDEX-AUTOMATIC TRANSMISSION

Note:
^ Align the drive shaft with the marks made during removal to ensure correct balance.

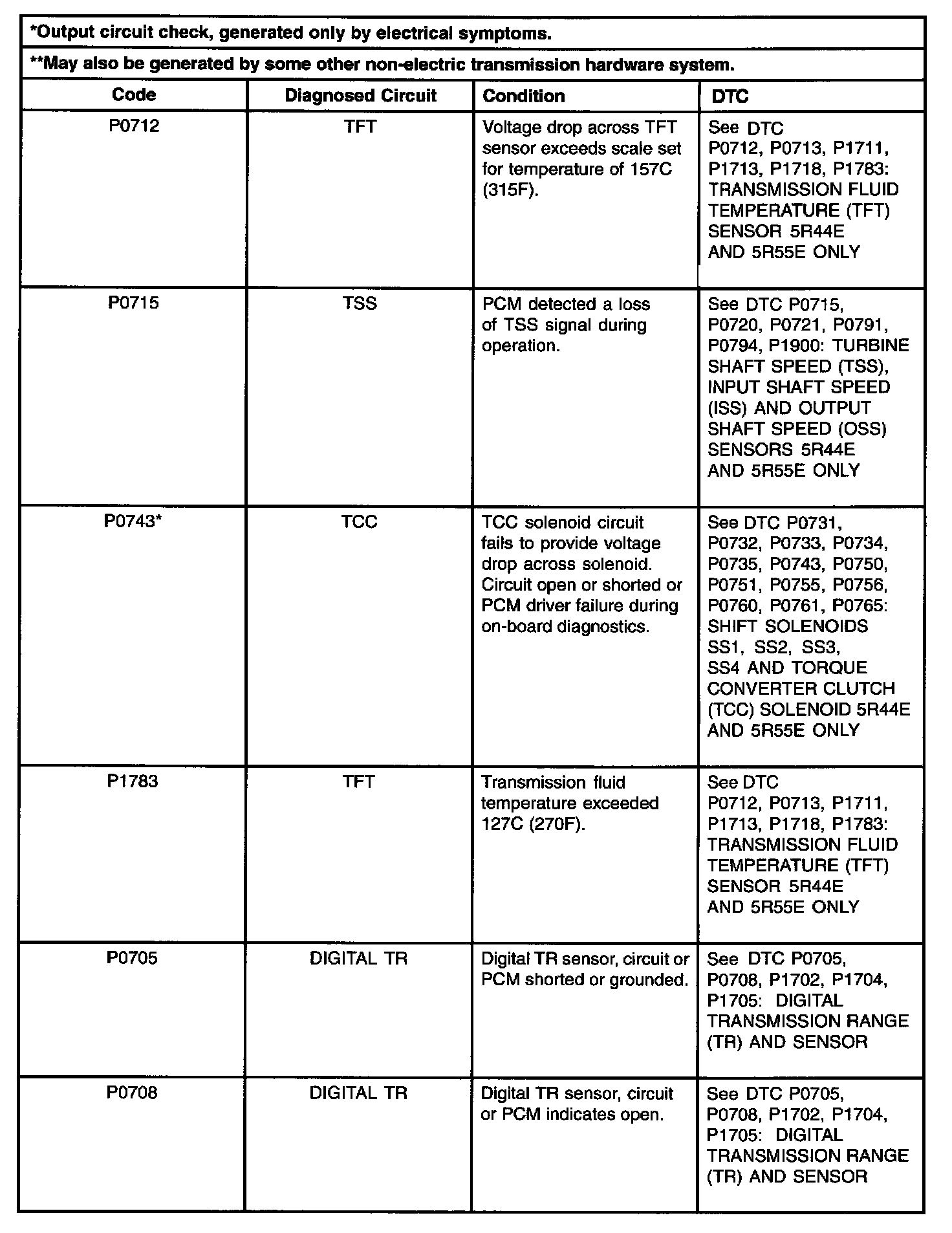

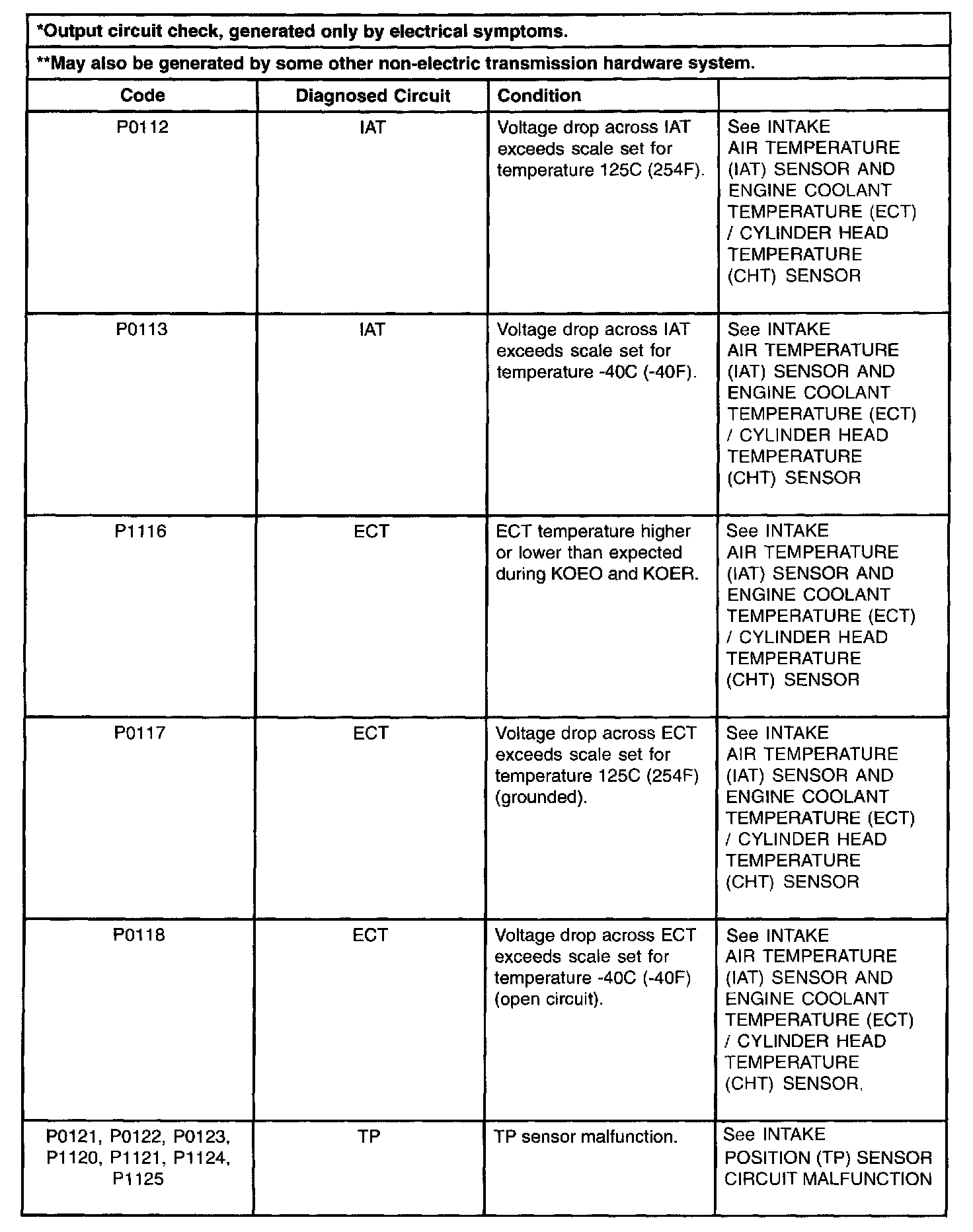

1 Of 12:

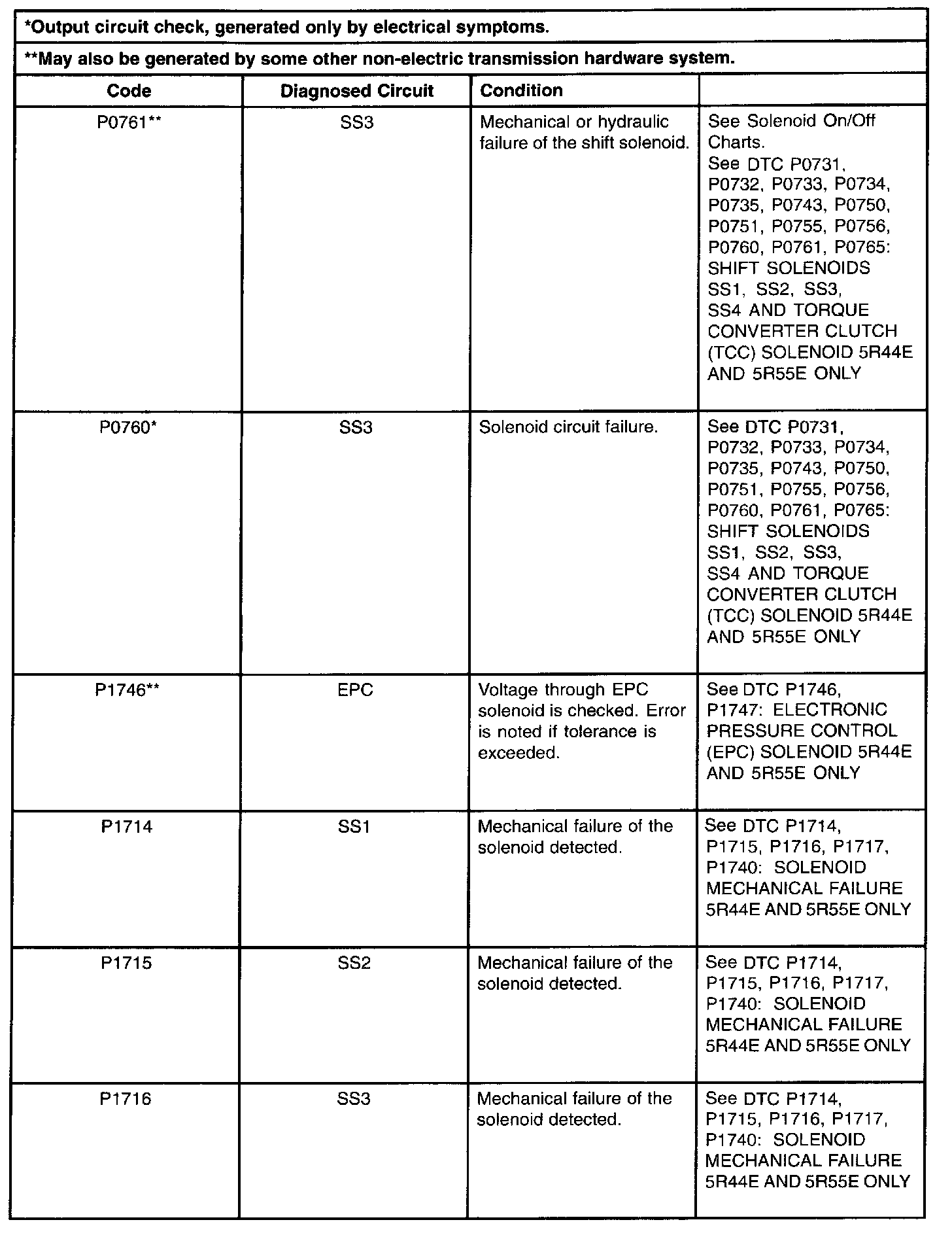

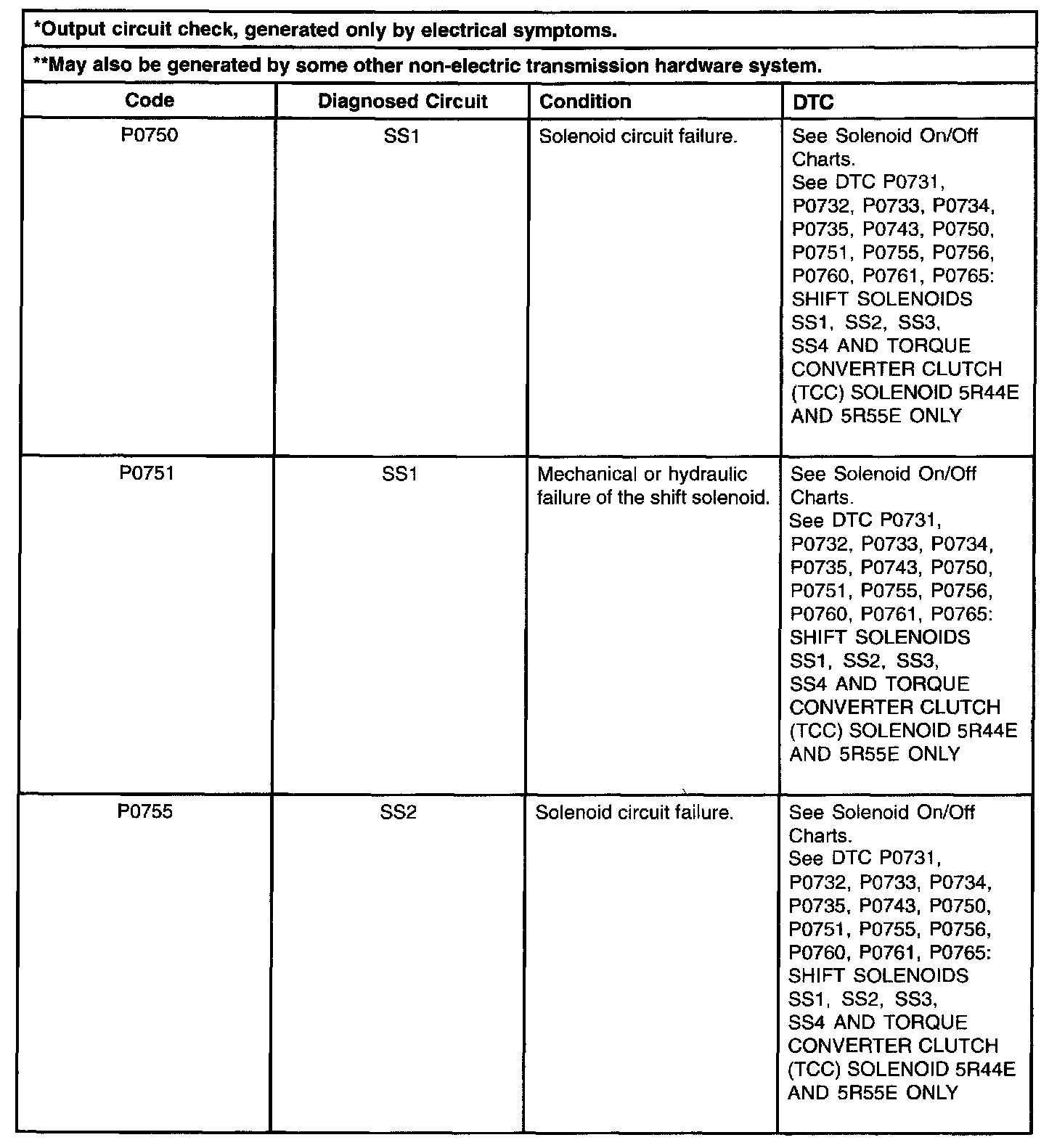

2 Of 12:

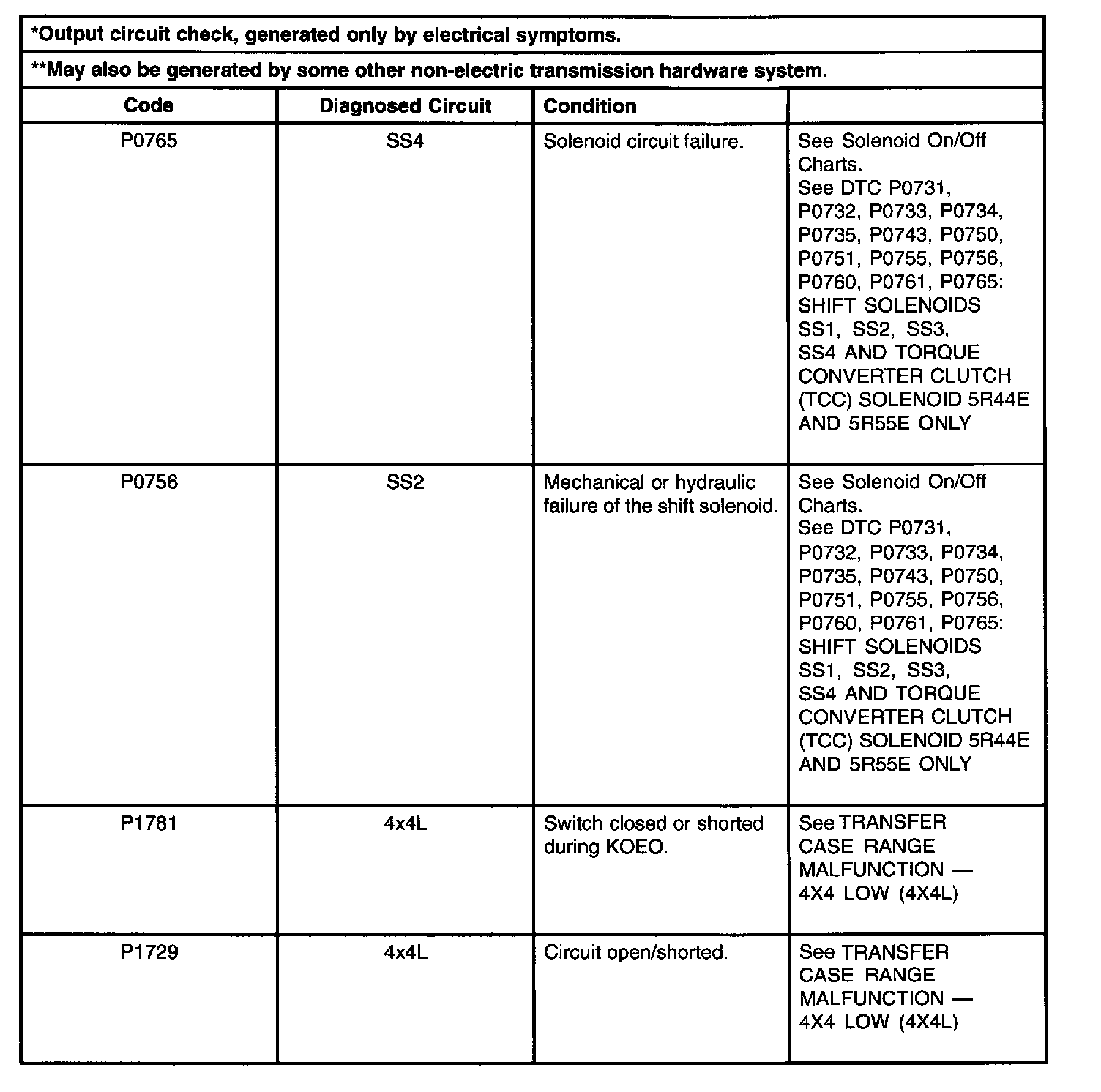

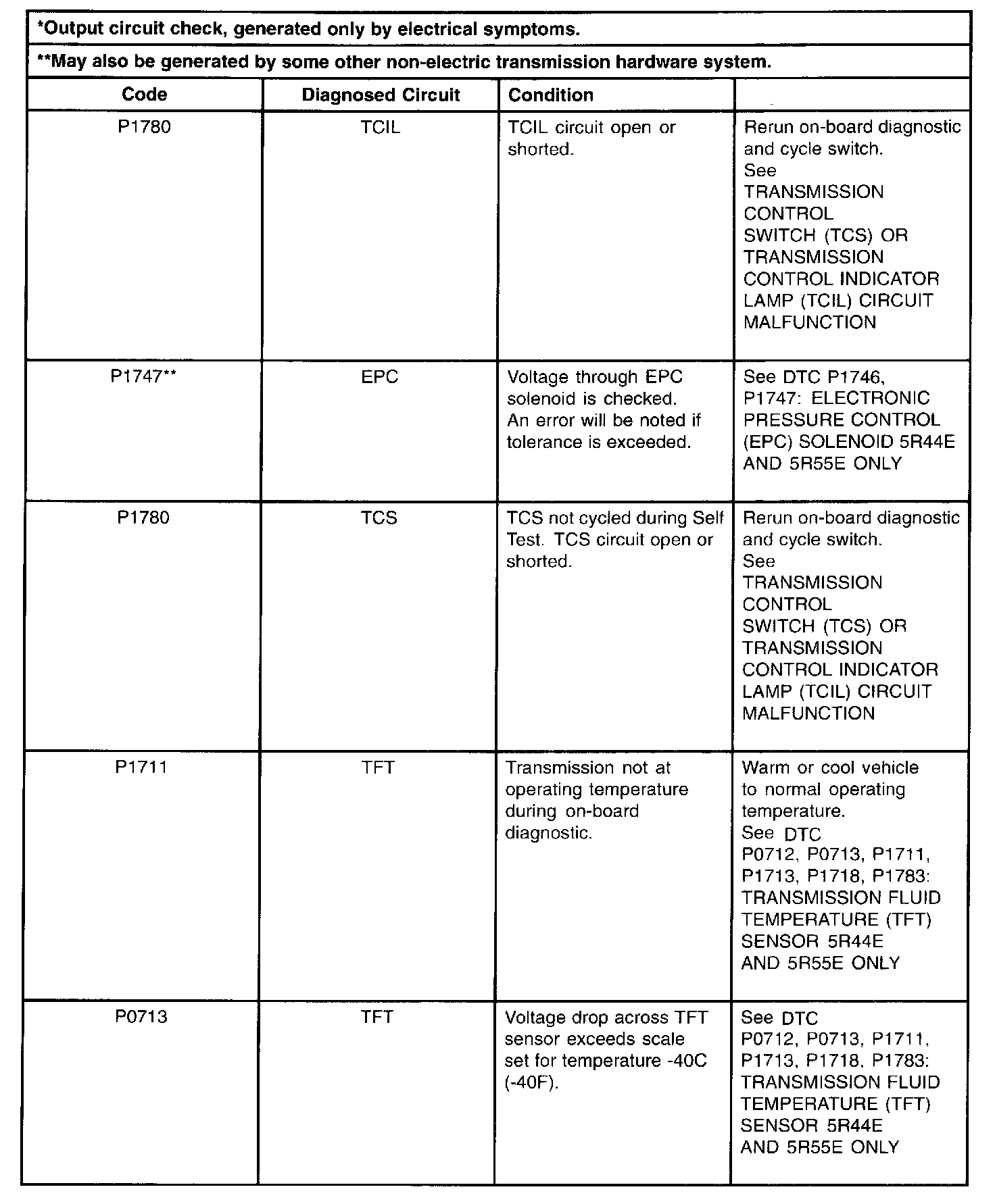

3 Of 12:

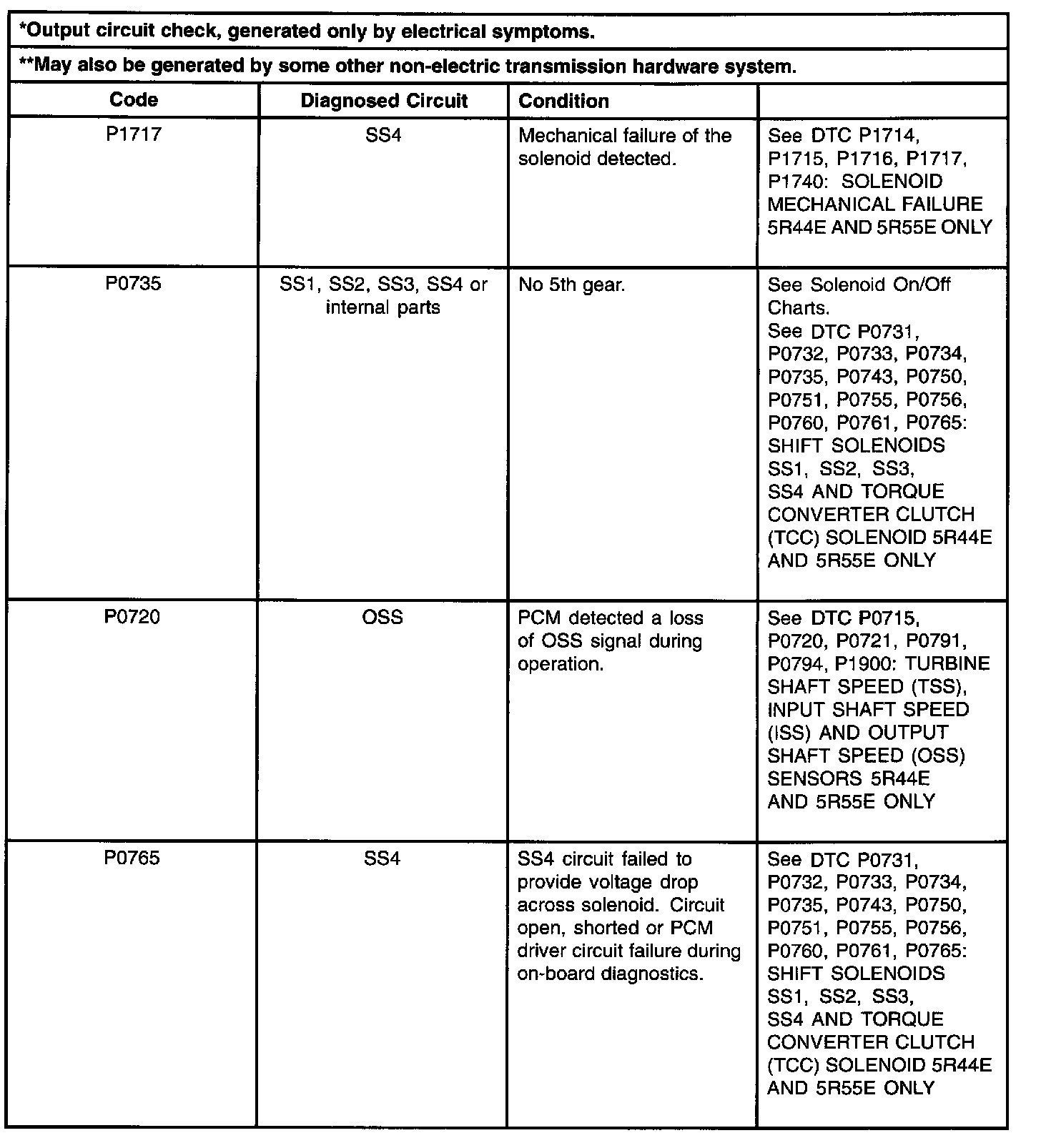

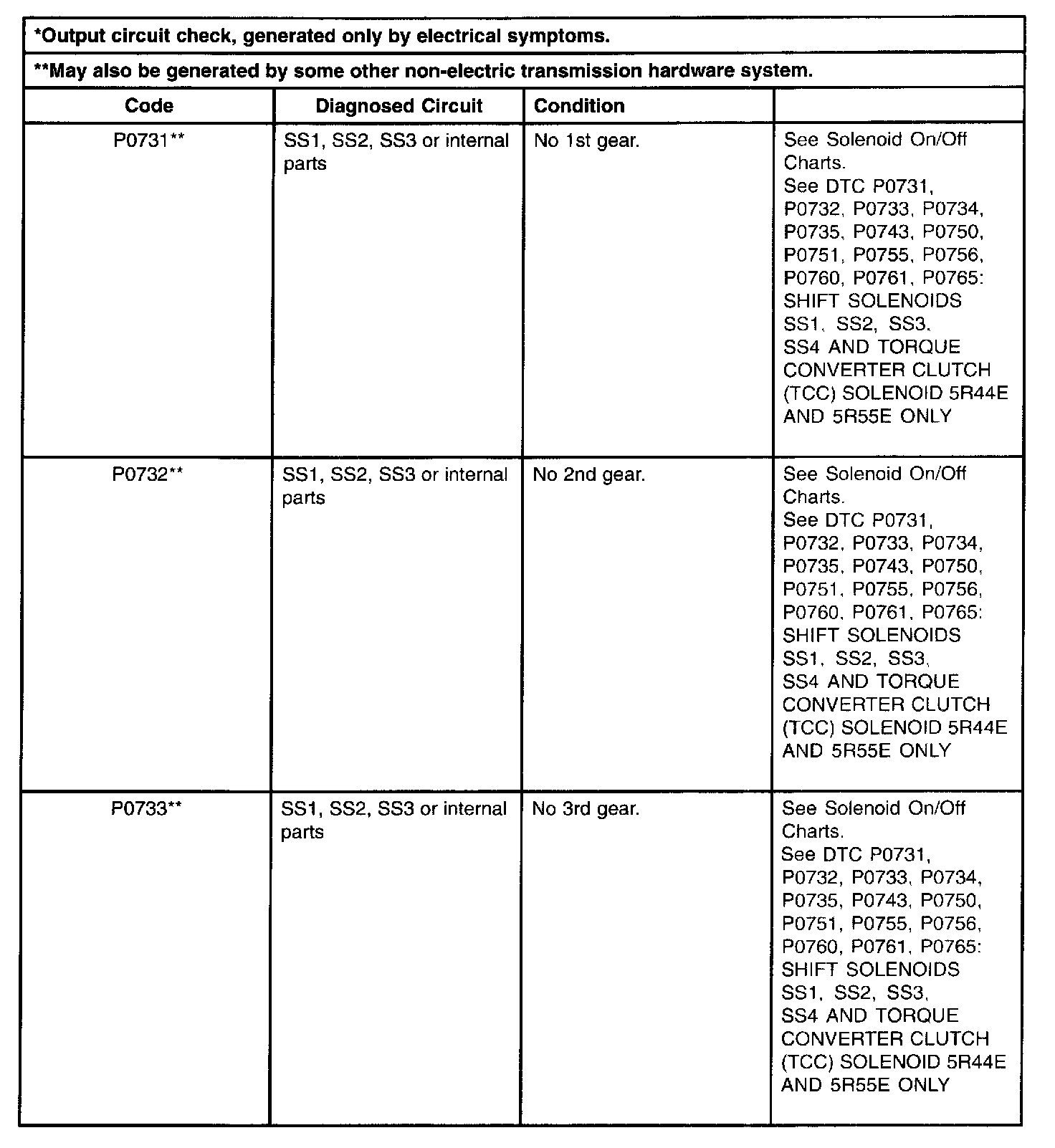

4 Of 12:

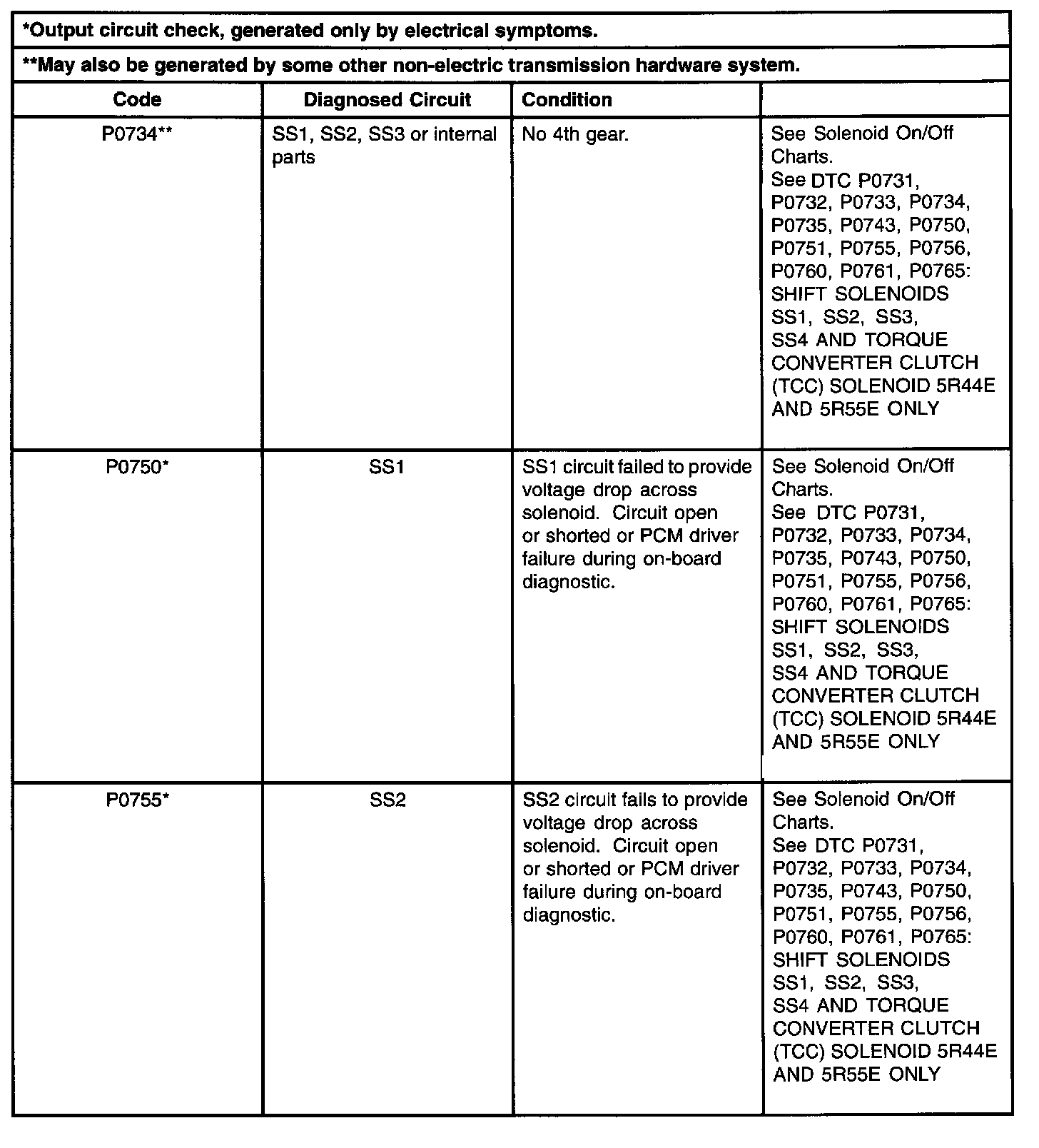

5 Of 12:

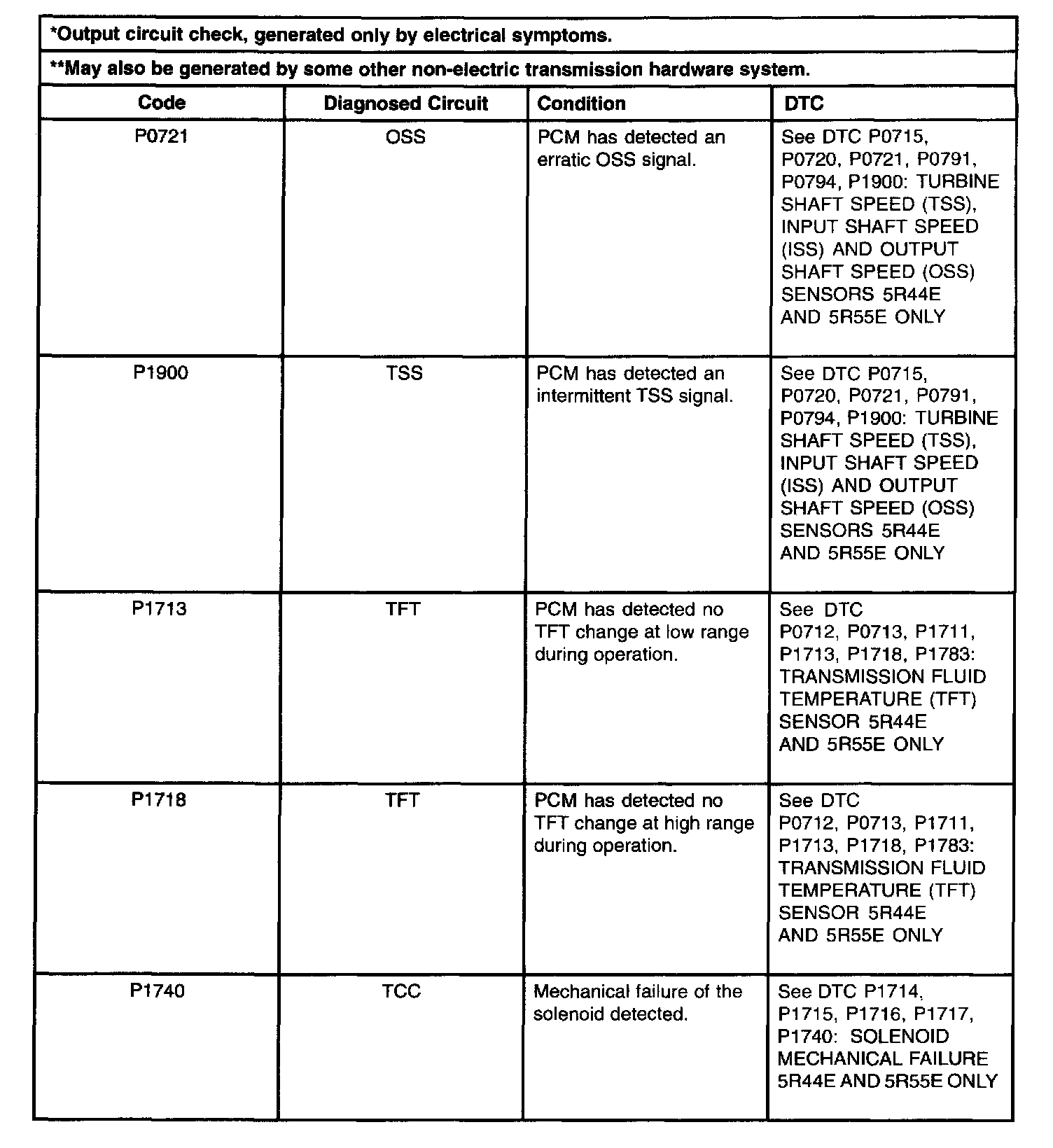

6 Of 12:

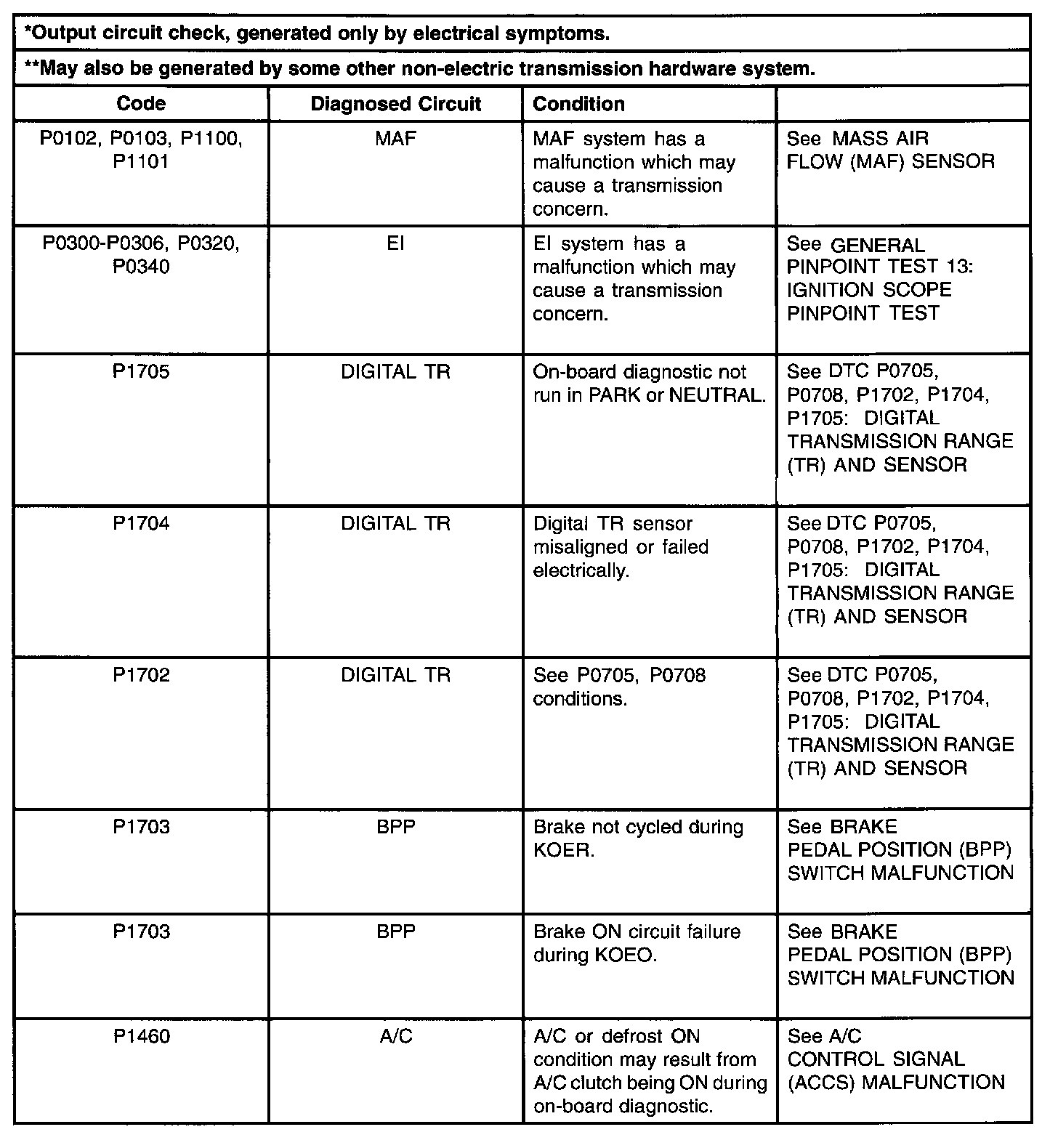

7 Of 12:

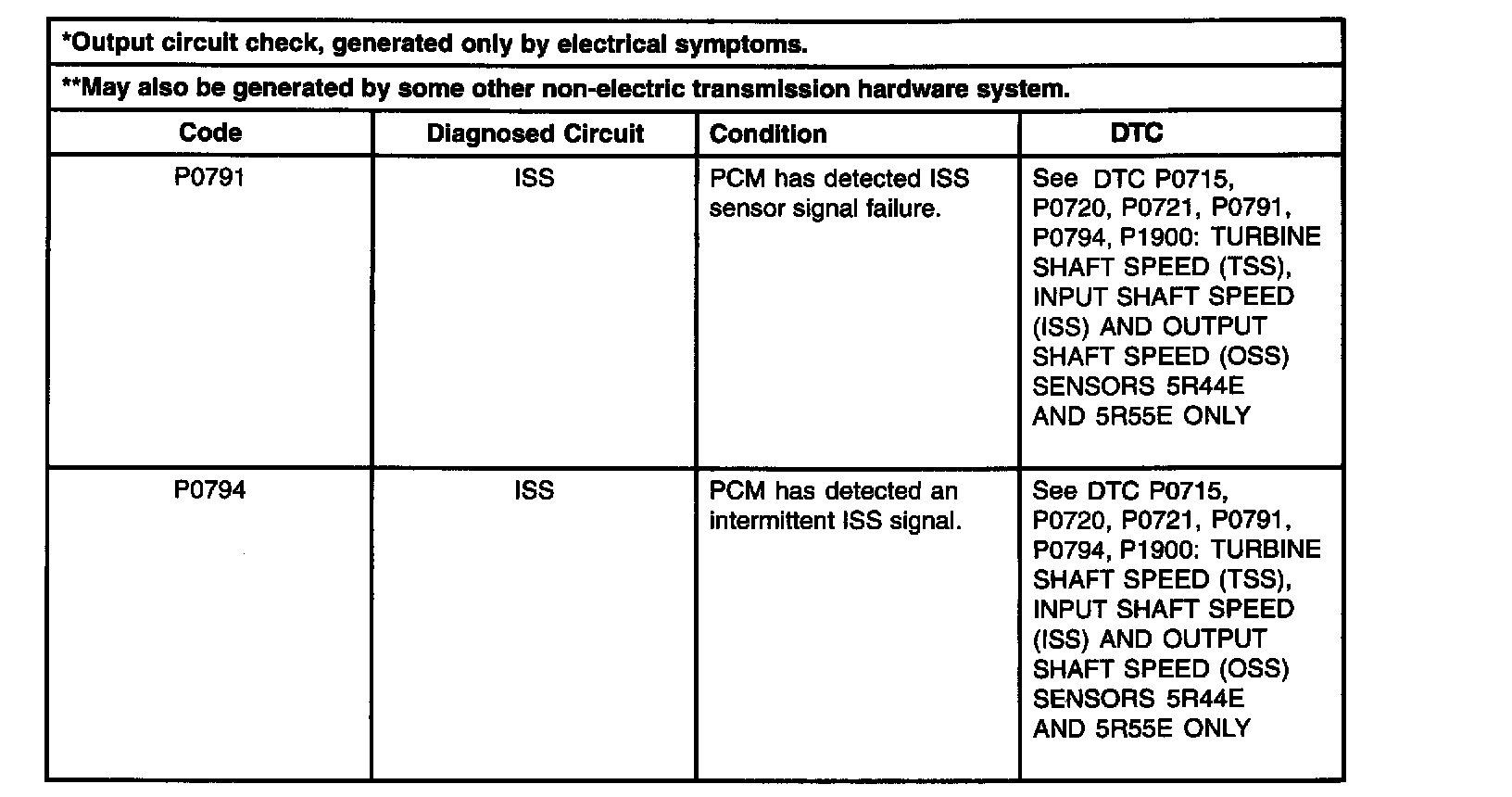

8 Of 12:

9 Of 12:

10 Of 12:

11 Of 12:

12 Of 12:
