P and U Codes

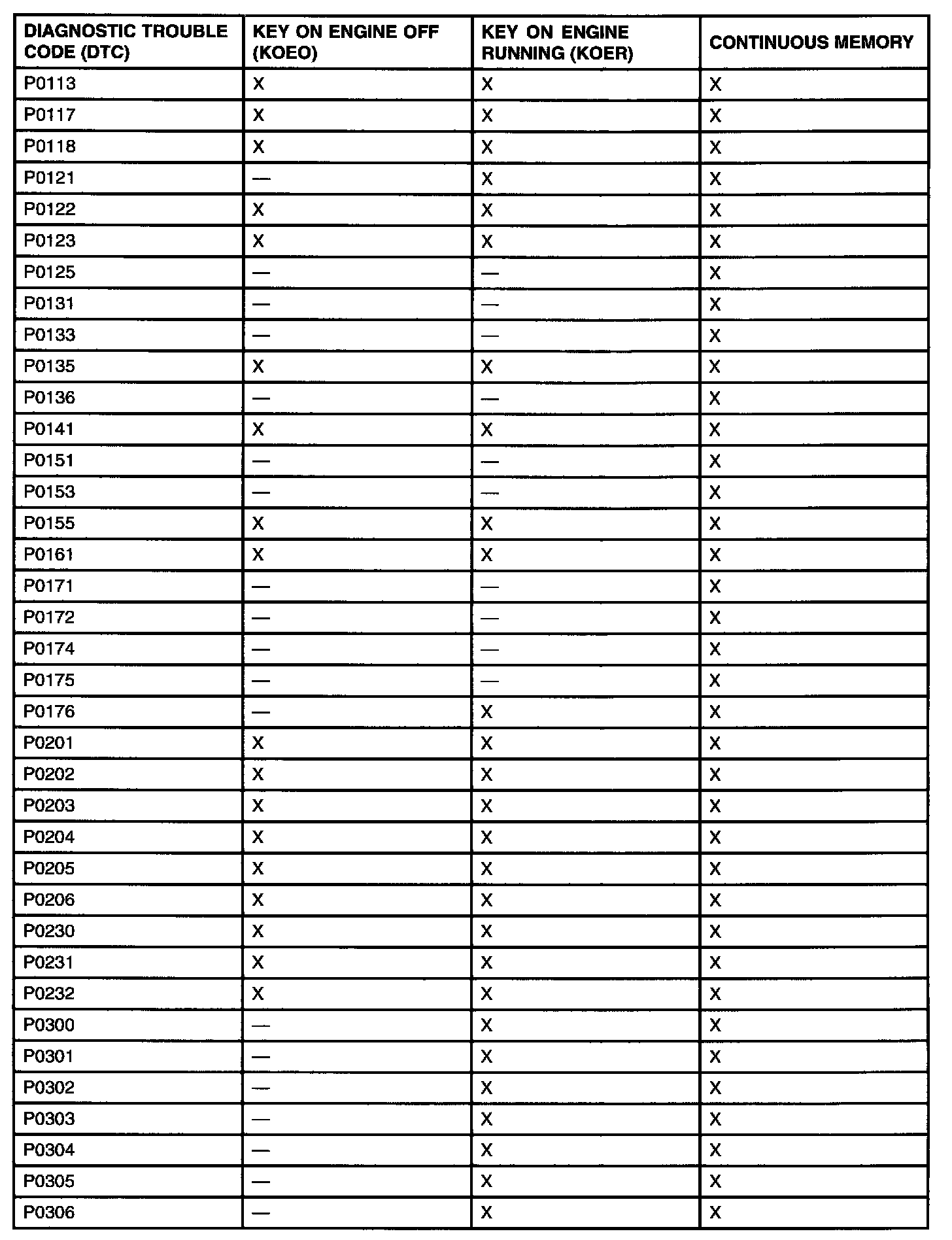

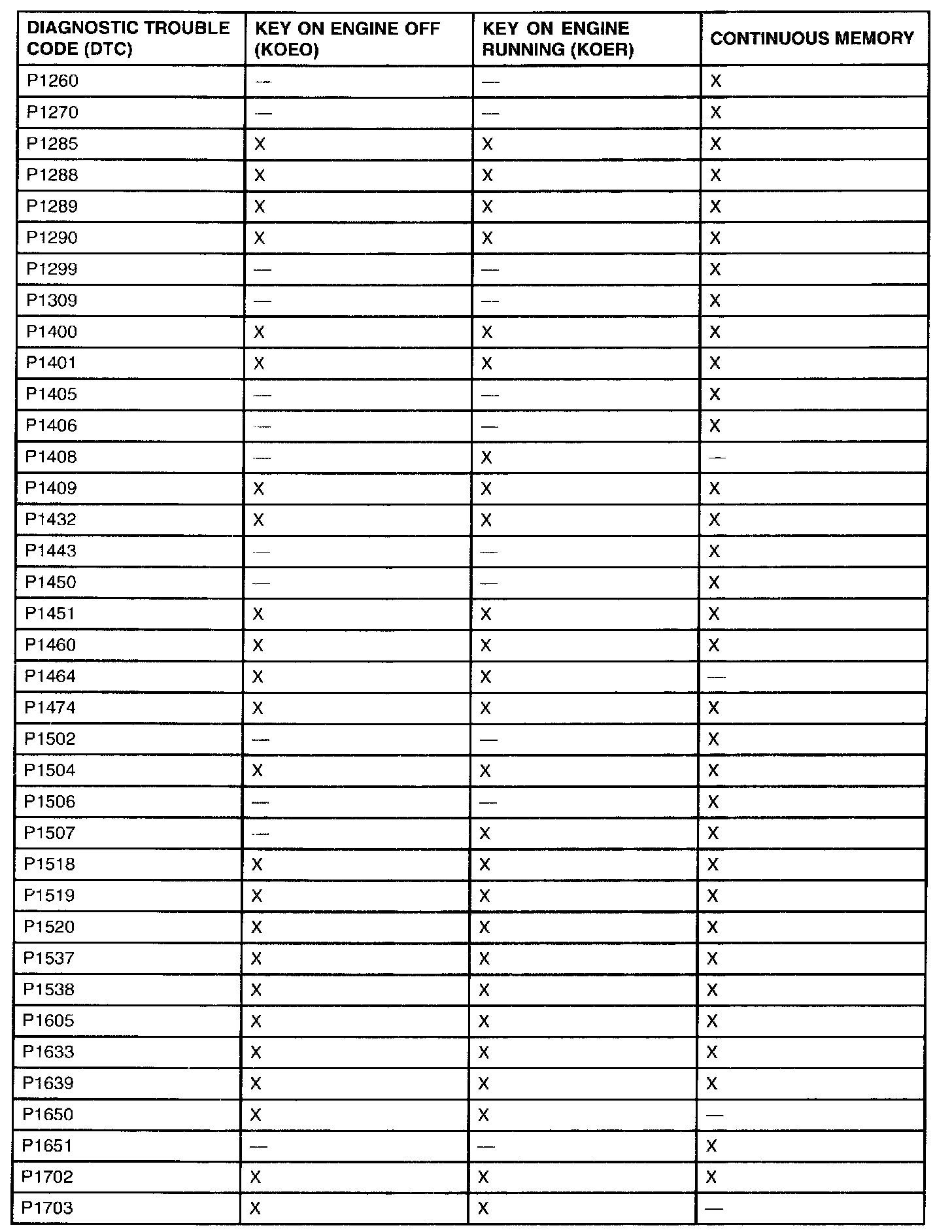

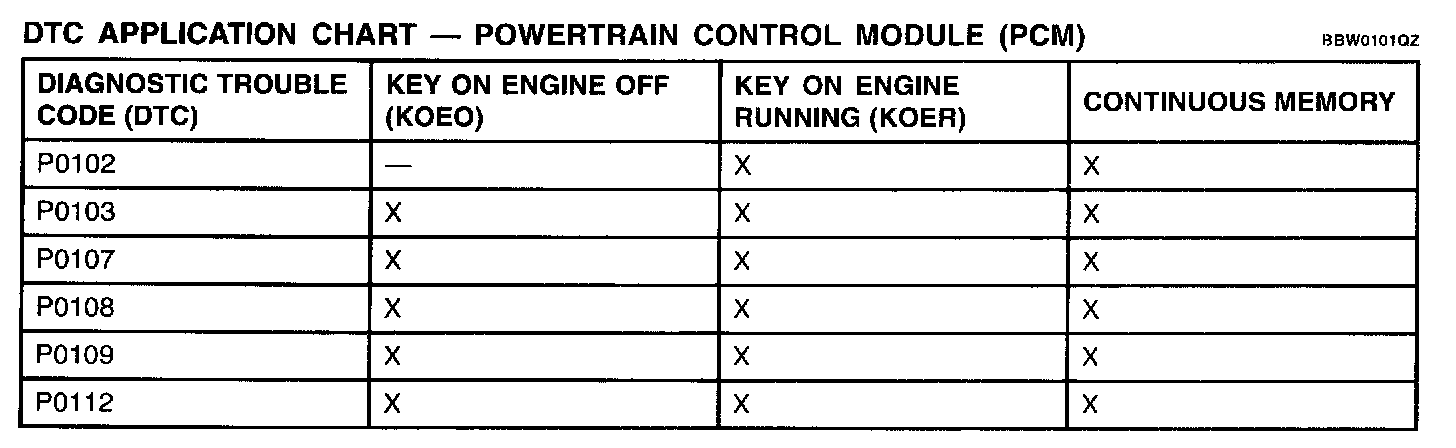

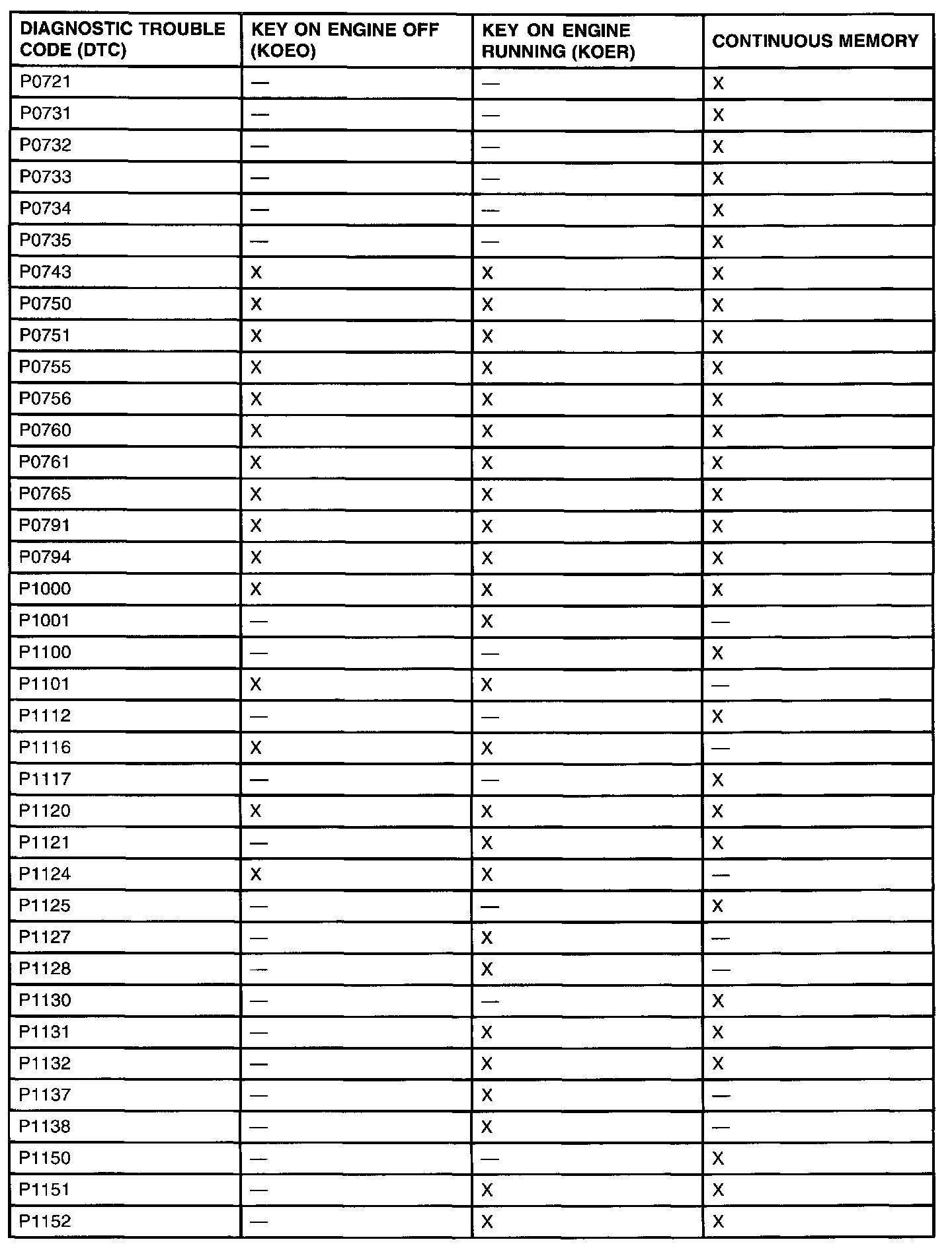

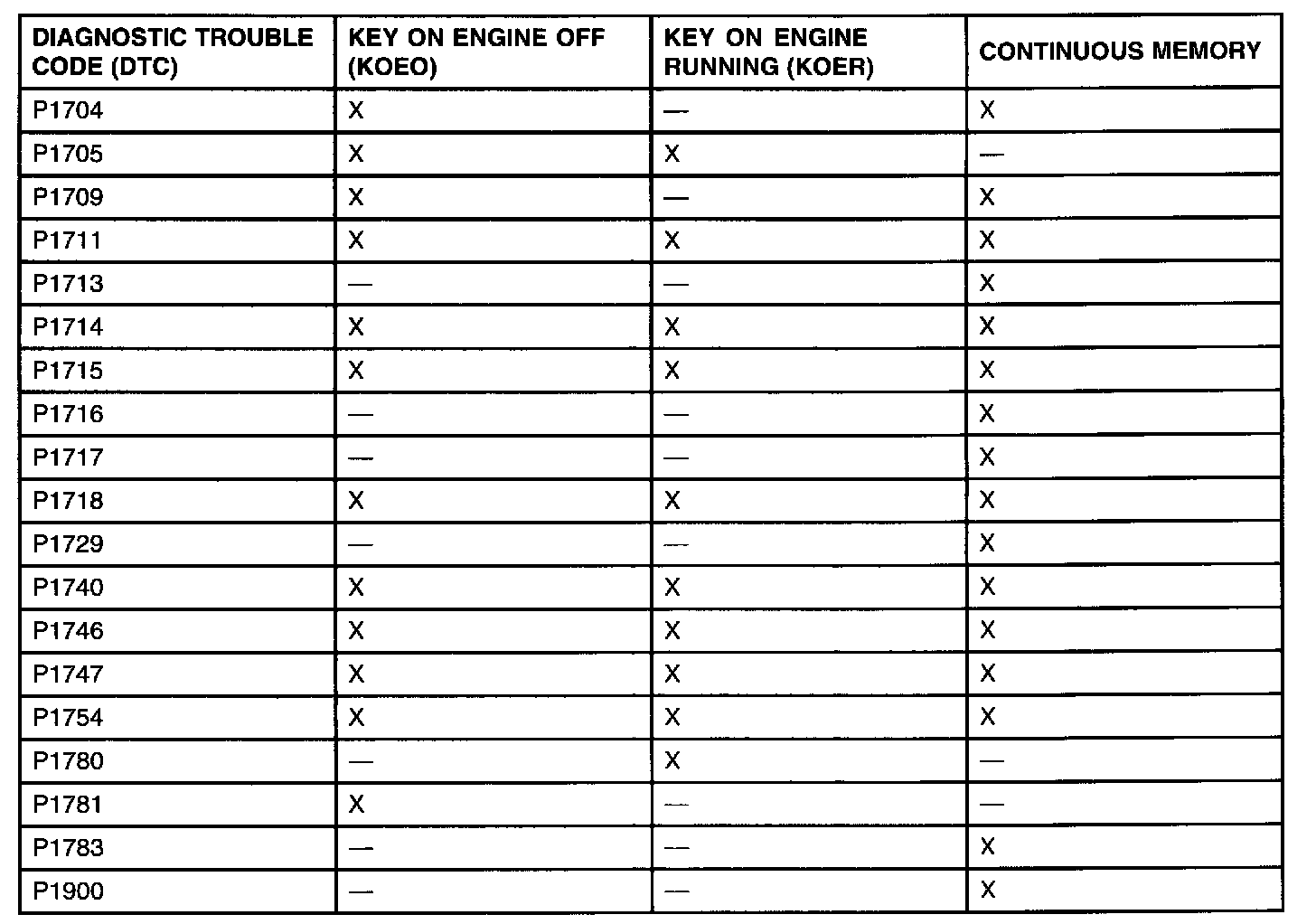

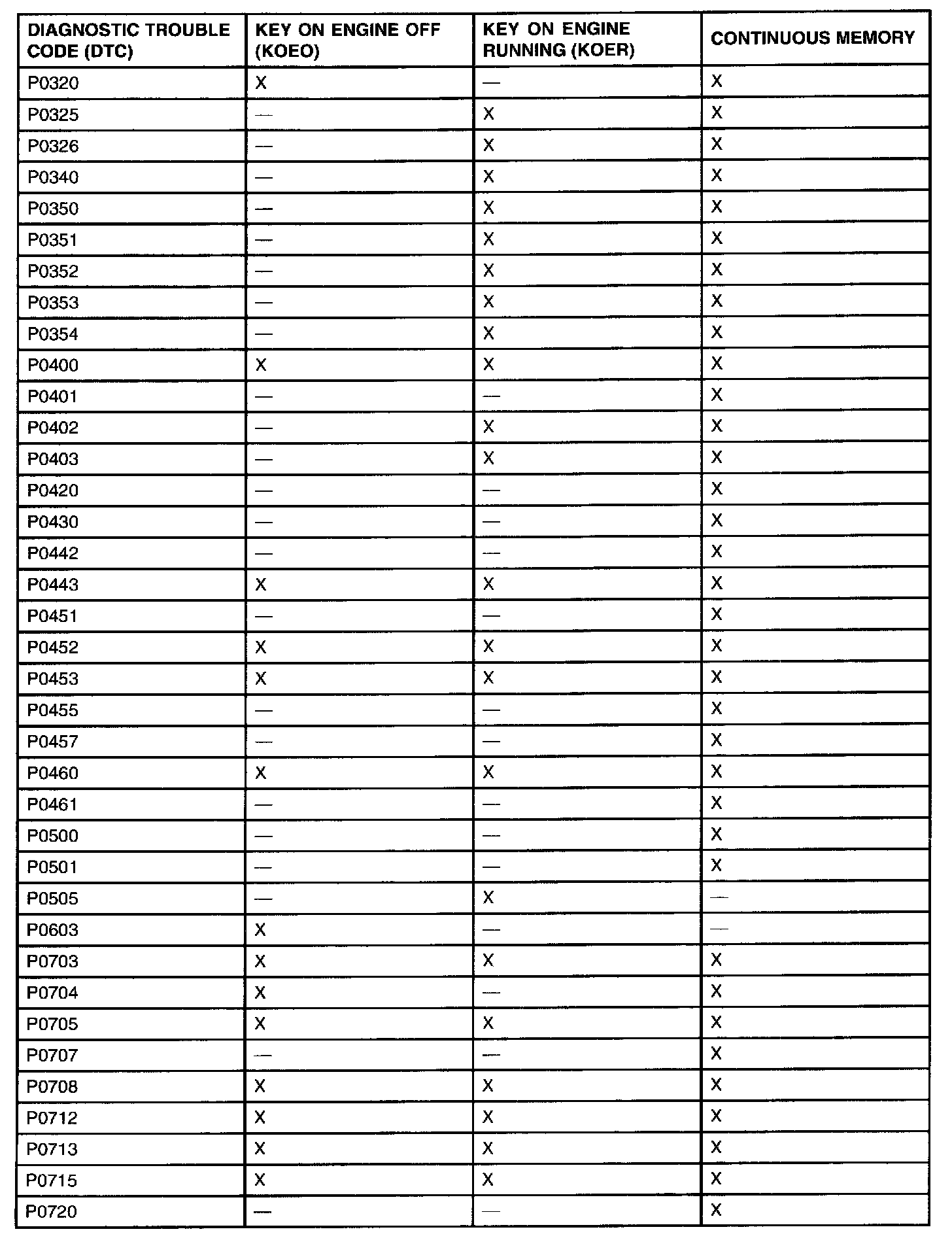

DTC Application Chart Part 1:




DTC Application Chart Part 2:




DTC Application Chart Part 3:




DTC Application Chart Part 4:




DTC Application Chart Part 5:




DTC Application Chart Part 6:
