Drive Belt: Locations

ACCESSORY DRIVE

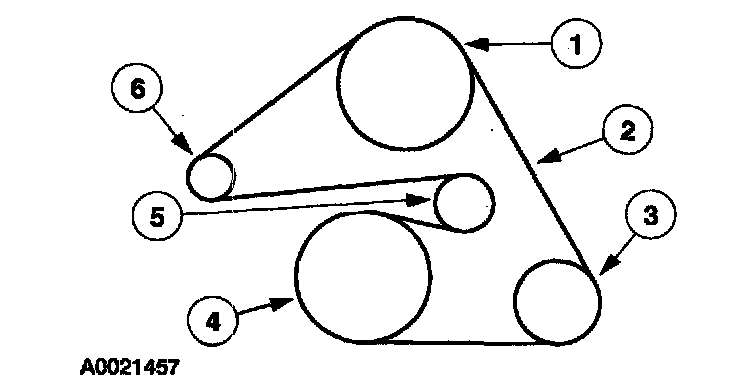

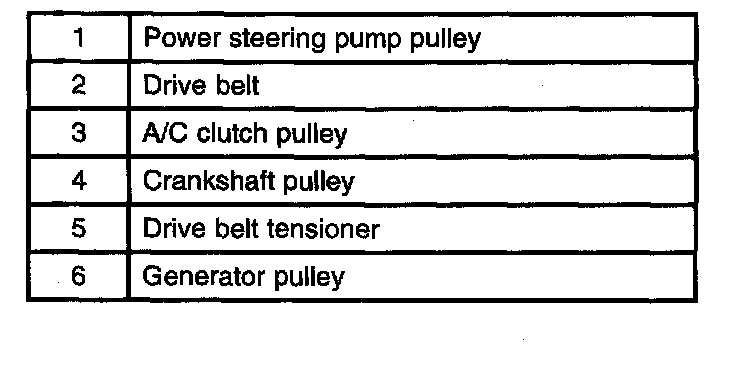

with A/C





Water Pump Drive Belt - with Tensioner

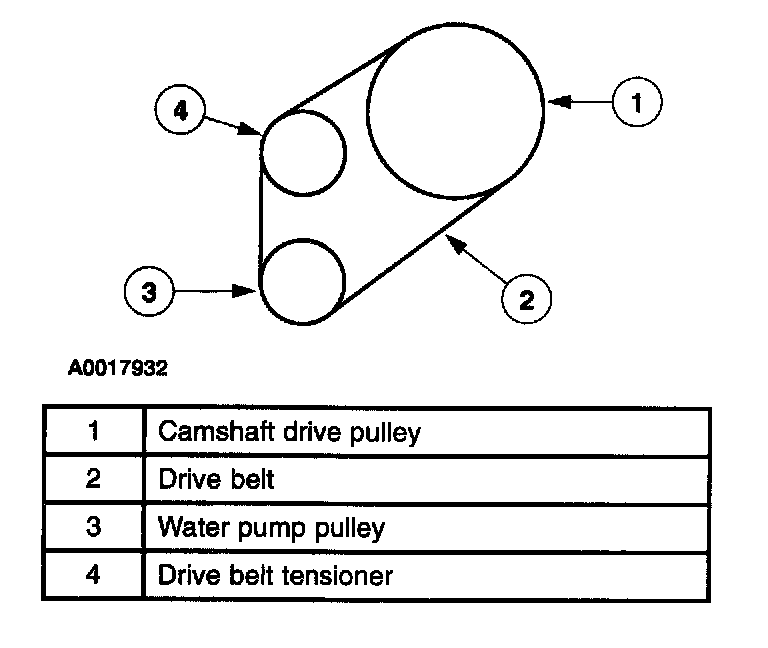

Water Pump Drive Belt - without Tensioner

This vehicle is equipped with:
^ a V-ribbed serpentine accessory drive belt.
^ an automatic drive belt tensioner.

New drive belts must be of the same type as originally installed.

Check the drive belt condition at 160,934 km (100,000 miles) then after every 24,140 km (15,000 miles).
