External Sealing

External Sealing

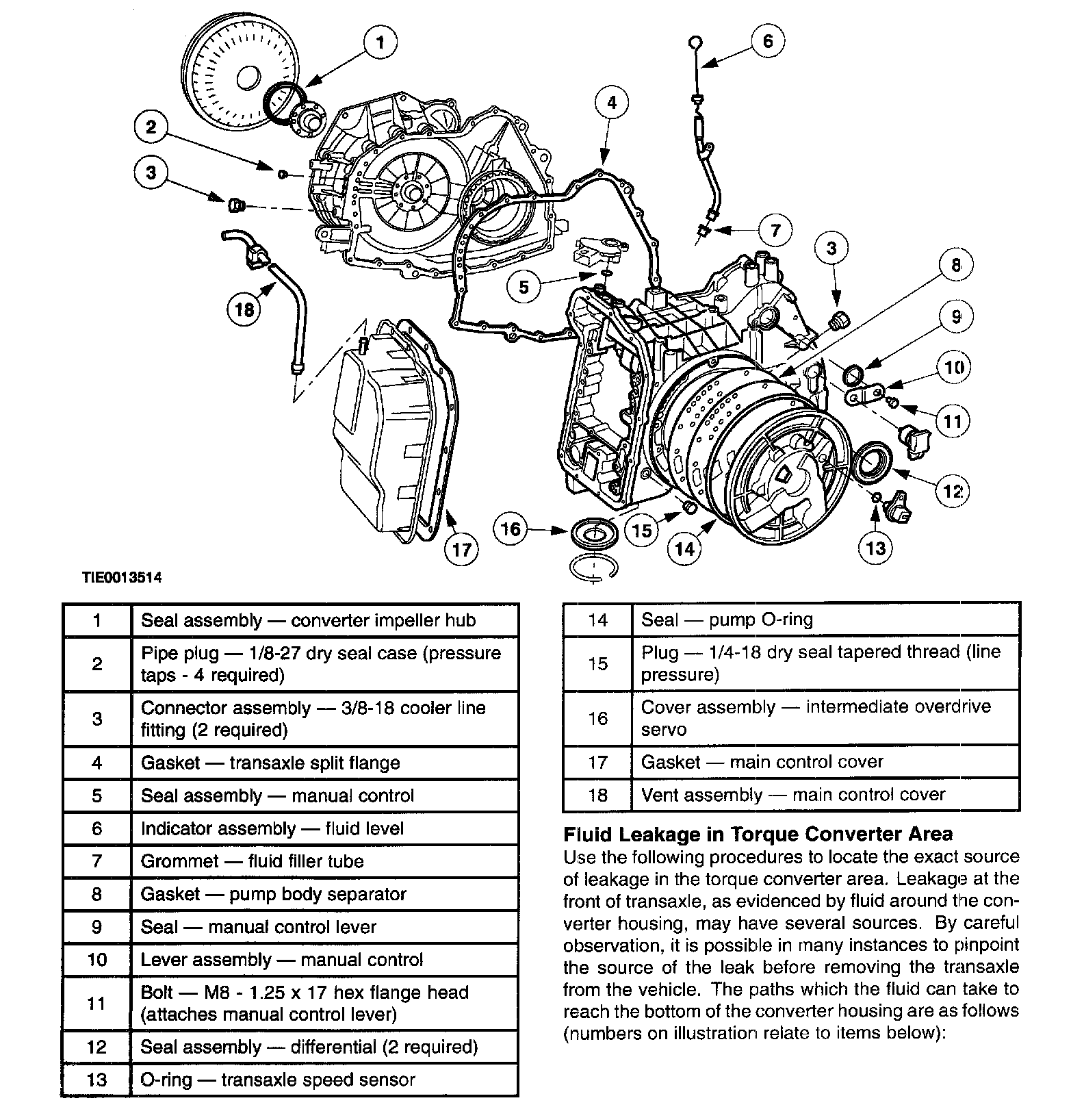

The CD4E transaxle has the following parts to prevent external fluid leakages:
- Gaskets
- Lip type seals
- O-rings
- Seal rings





External Sealing
