Gearshift Linkage

GEARSHIFT LINKAGE-4X2
Removal and Installation
1. Raise and support the vehicle.

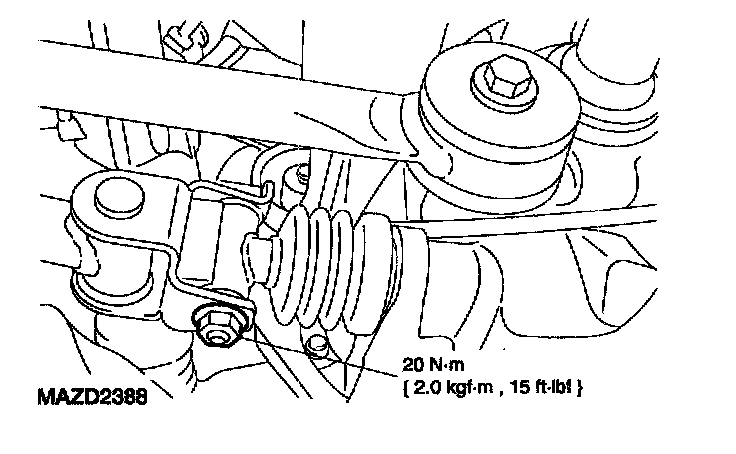

2. Remove the gearshift linkage to transaxle bolt and nut.





3. Remove the gearshift linkage.
1. Remove the bolt and nut.
2. Remove the gearshift linkage.
4. To install, reverse the removal procedure.
