Seals and Gaskets: Service and Repair

HALFSHAFT OIL SEAL
Removal

1. Remove the halfshaft.

Note: RH side shown, LH side similar.

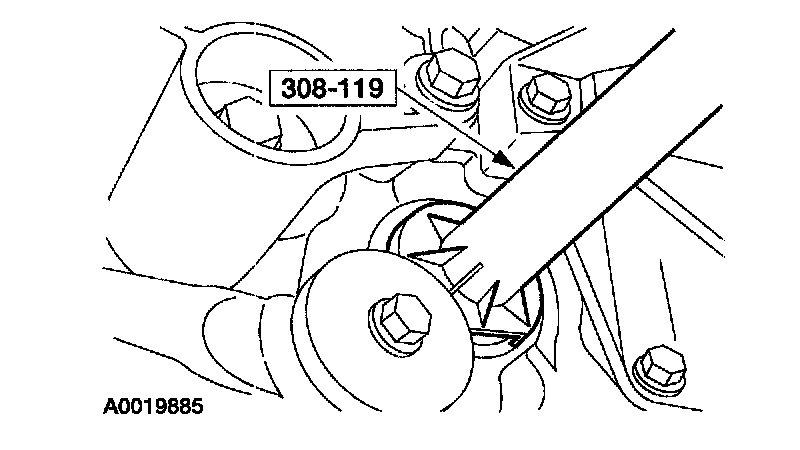

2. Remove the halfshaft seal.

Installation

Note: RH side shown, LH side similar.

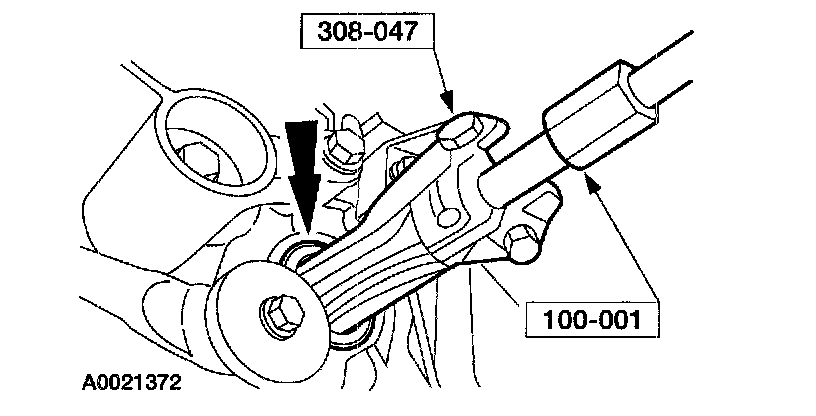

1. Using the special tool, install the new halfshaft seal.
2. Install the halfshaft.
