Auxiliary Transaxle Fluid Cooler

AUXILIARY TRANSAXLE FLUID COOLER
Removal and Installation
1. Remove the front bumper cover.

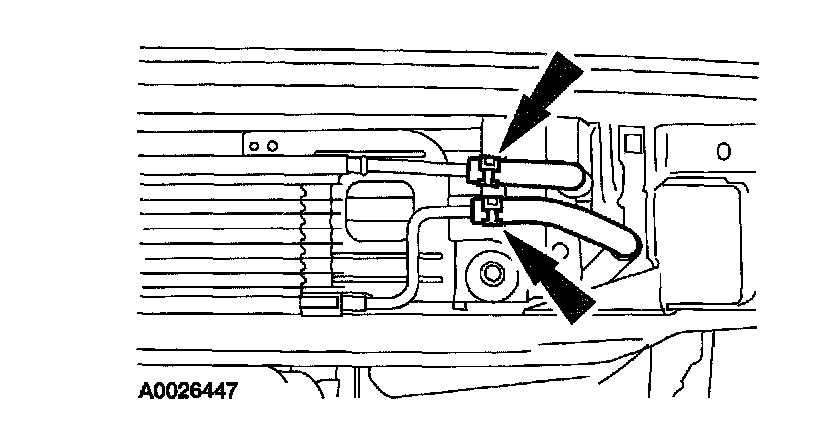

2. Disconnect the cooler tubes.

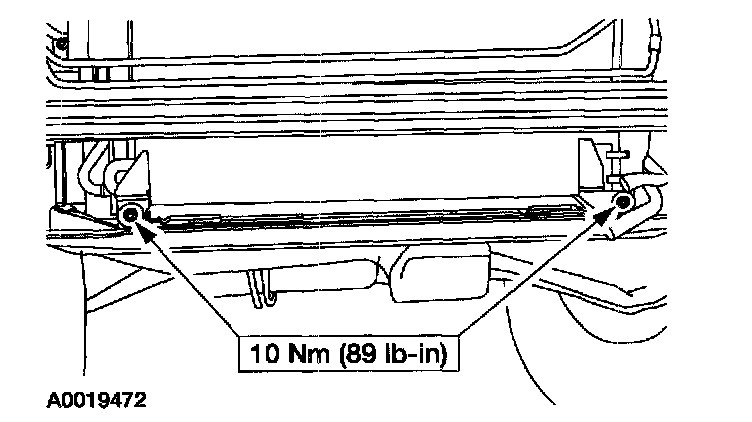

3. Remove the bolts and the auxiliary transaxle fluid cooler.
4. To install, reverse the removal procedure.
1. Fill the transaxle to the specified level.
