Low/Reverse Piston

LOW/REVERSE PISTON
Disassembly Note

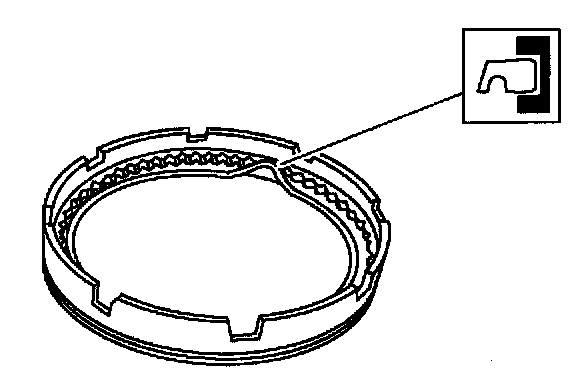

1. Remove and discard the low/reverse clutch piston outer seal on the low/reverse clutch piston.

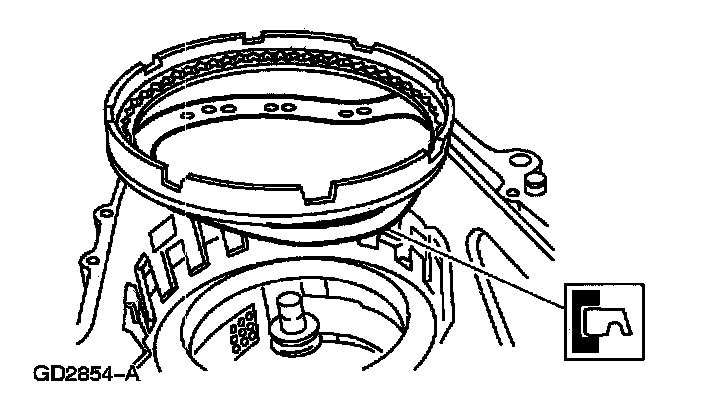

2. Remove and discard the low/reverse clutch piston inner seal on the low/reverse clutch piston.

Assembly Note

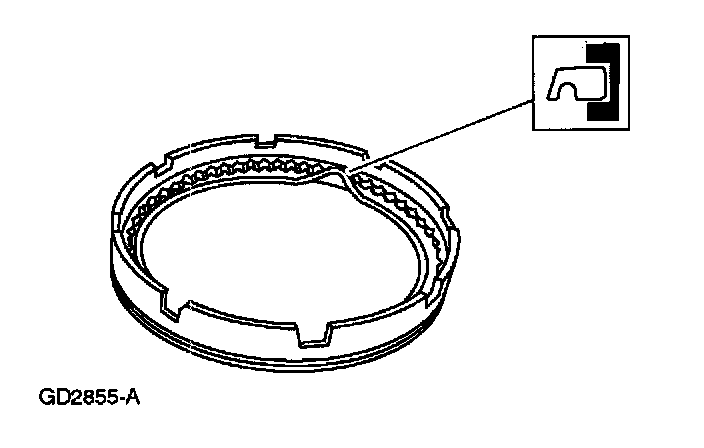

1. Install the low/reverse clutch piston outer seal on the low/reverse clutch piston.

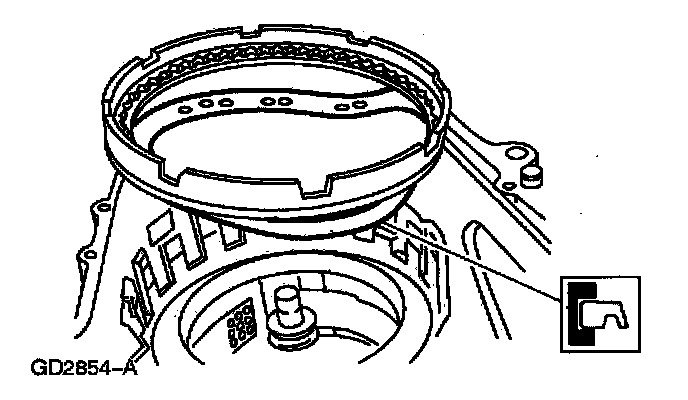

2. Install the low/reverse clutch piston inner seal on the low/reverse clutch piston.
