Upper

Removal and Installation
1. Remove the wheel and tire.

Note:
^ It may be necessary to hold the ball joint stud to keep it from turning while removing the nut.

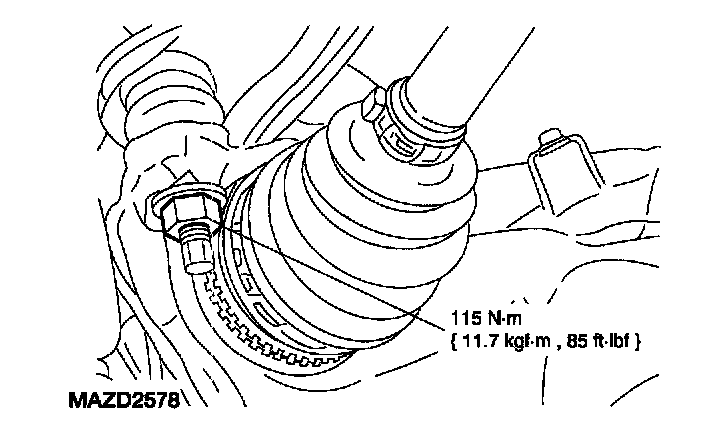

2. Separate the upper arm from the wheel knuckle.
1 Remove the upper ball joint nut.

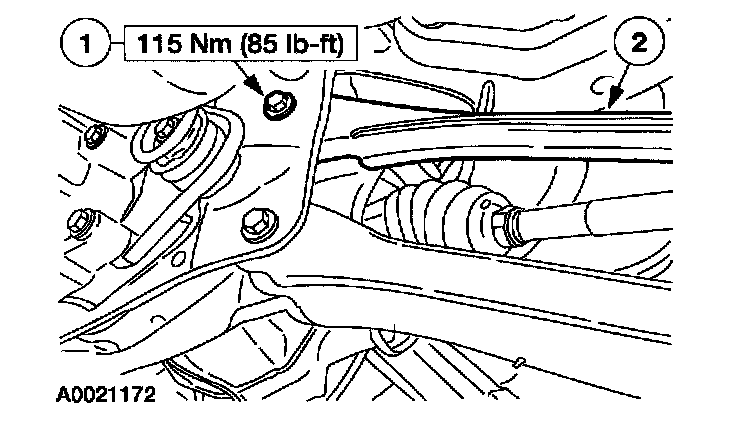

3. Remove the upper arm.
1 Remove the upper arm inner bolt.
2 Remove the upper arm.
4. To install, reverse the removal procedure.
