Steering Shaft Coupler: Service and Repair

Removal and Installation

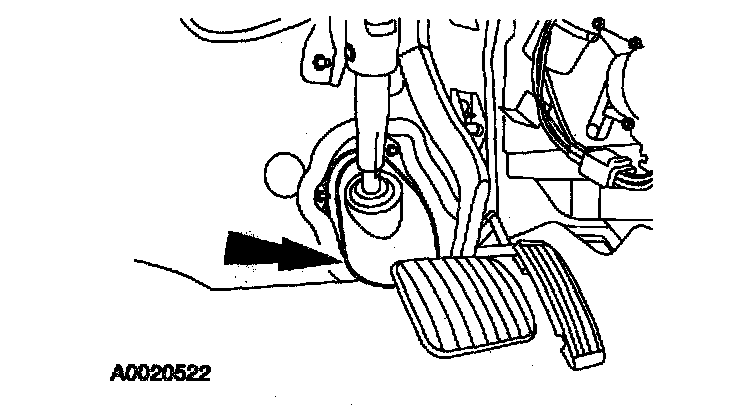

1. Position the boot aside.





2. Loosen the pinch bolt/nut and disconnect the steering column shaft from the flexible coupling.





3. Remove the steering gear coupling.

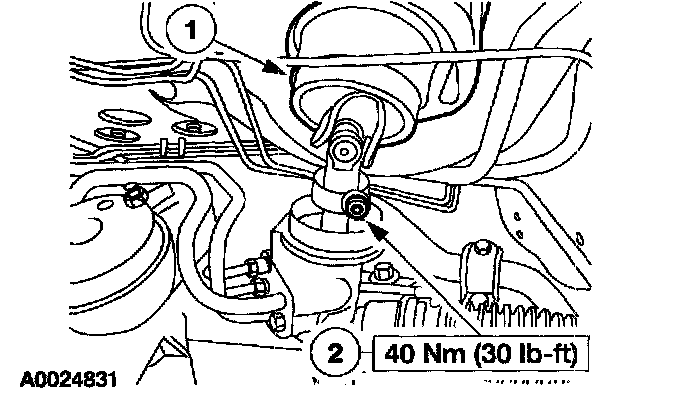

1 Position aside the rubber boot.
2 Remove the pinch bolt.
4. To install, reverse the removal procedure.
