Steering Gear to Fluid Cooler Return Hose
Removal and InstallationNote:
^ Drain the excess power steering fluid into a suitable drain pan.
Note:
^ Make sure not to drop the O-ring seals.

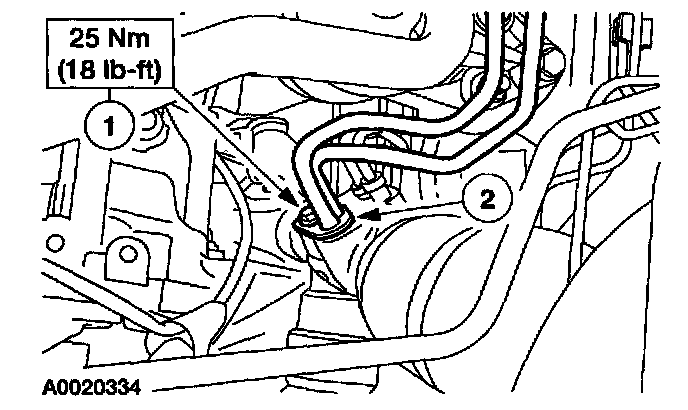

1. Disconnect the power steering pressure and return lines.
1 Remove the bolt.
2 Disconnect the power steering pressure and return lines.

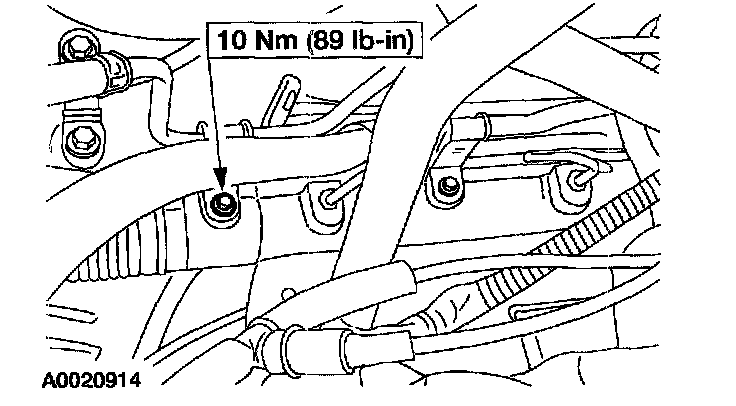

2. Remove the power steering return line bracket-to-gear bolt.

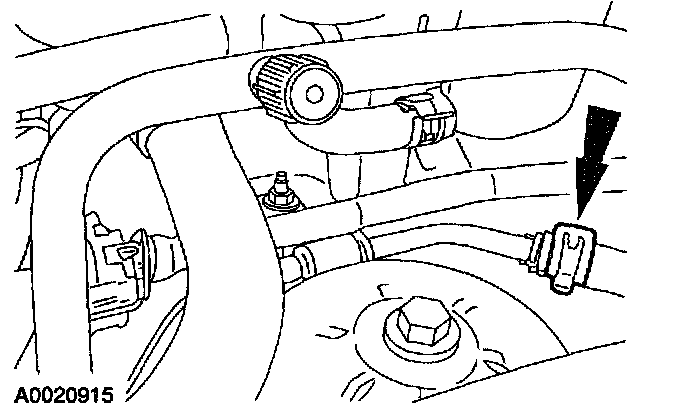

3. Release the clamp and remove the power steering return line.
Note:
^ Make sure the O-ring seals are on the power steering pressure and return lines.
4. To install, reverse the removal procedure.
1 Fill, bleed and leak check the power steering system.
