Mazda Truck
>>
2002
>>
Tribute DX 2WD L4-2.0L
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Parking Lamp
>>
Locations
>>
Connector Locations
Connector Locations

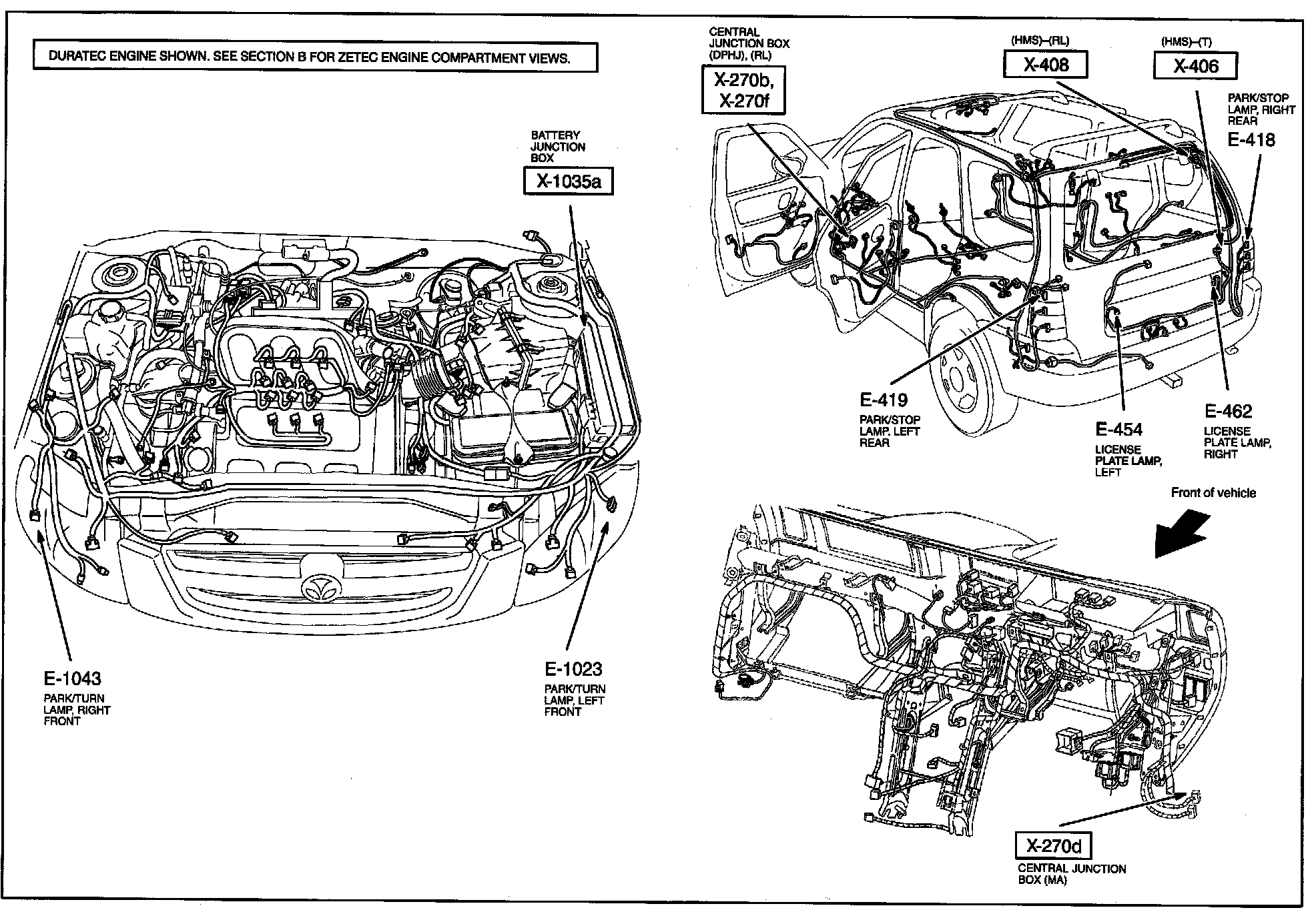

E-2 - Exterior Lamps (Park Lamps) Harness/Connector Symbols:
