Component Tests and General Diagnostics

Inspection and Verification

1. Verify the customer concern by operating the fog lamps.

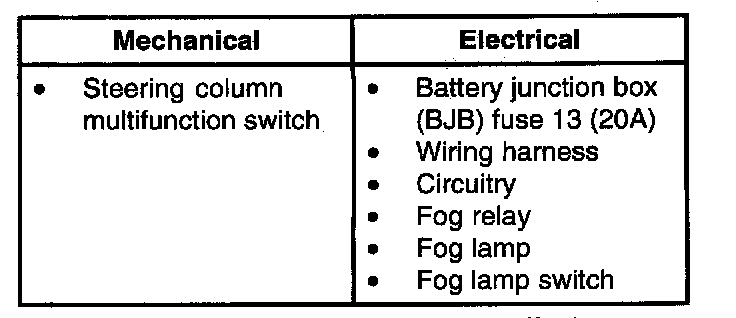

Visual Inspection Chart:

2. Visually inspect for obvious signs of mechanical arid electrical damage.
3. If the fault is not visually evident, verify the symptom and proceed to TROUBLESHOOTING INDEX - FOG LAMPS.
