Mazda Truck
>>
2002
>>
Tribute DX 2WD L4-2.0L
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Backup Lamp
>>
Locations
>>
Connector Locations
Connector Locations

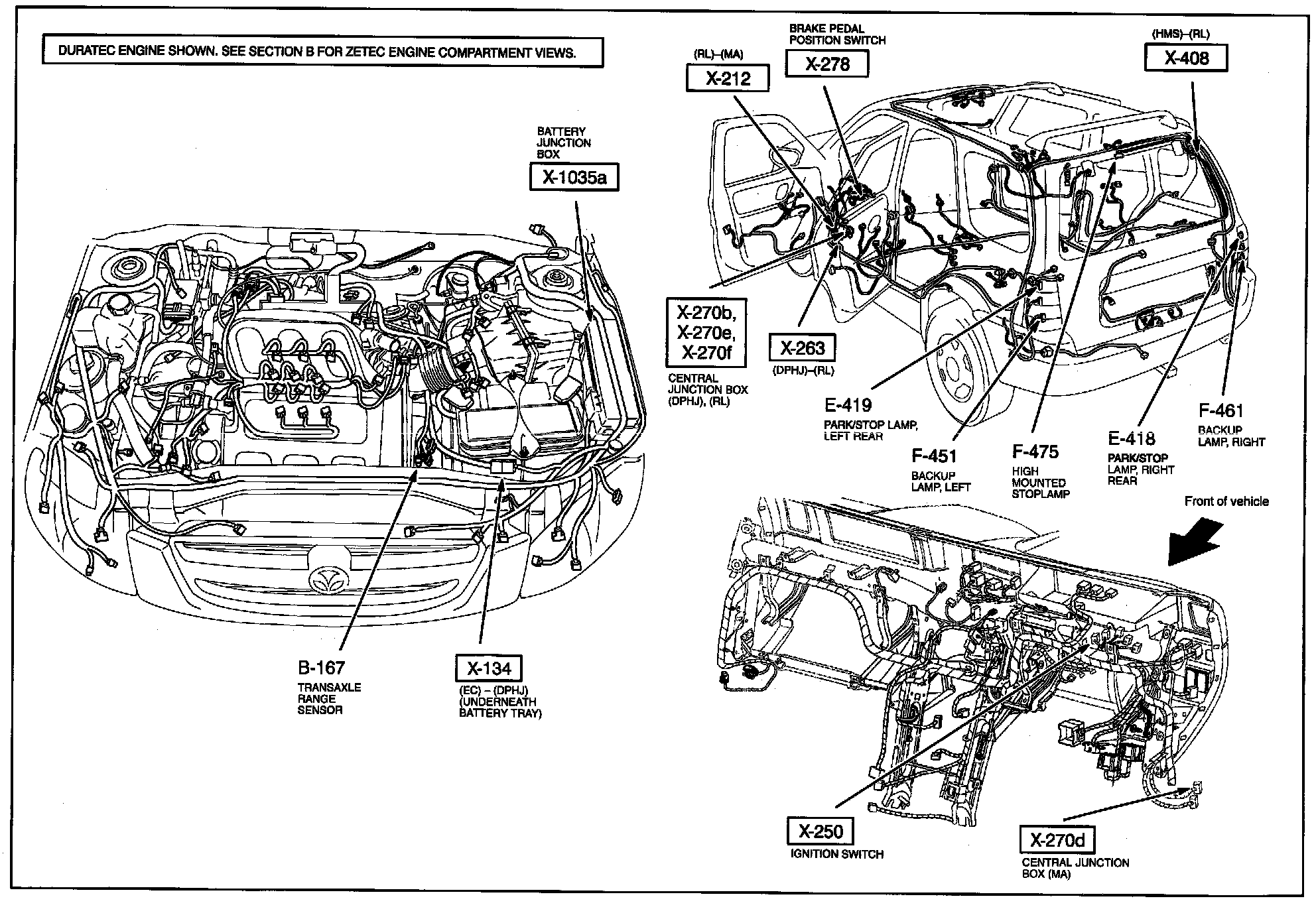

F-2 - Stop And Backup Lamps Harness/Connector Symbols:
