Mazda Truck
>>
2002
>>
Tribute DX 2WD L4-2.0L
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
Diagnostic Procedures (Pinpoint Tests)
>>
8: The Blower Motor Operates Continuously In High Speed
8: The Blower Motor Operates Continuously In High Speed

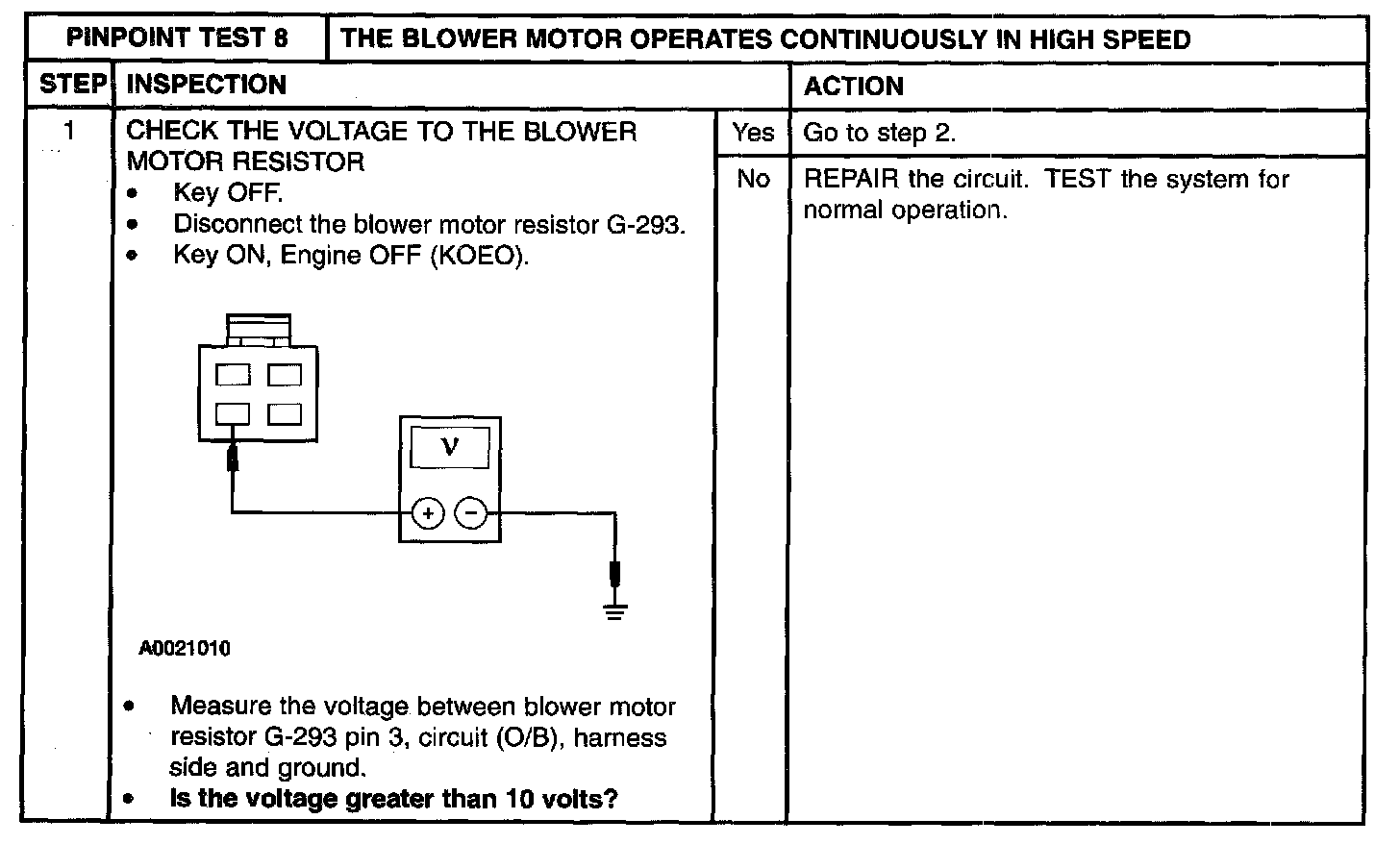

Step 1:

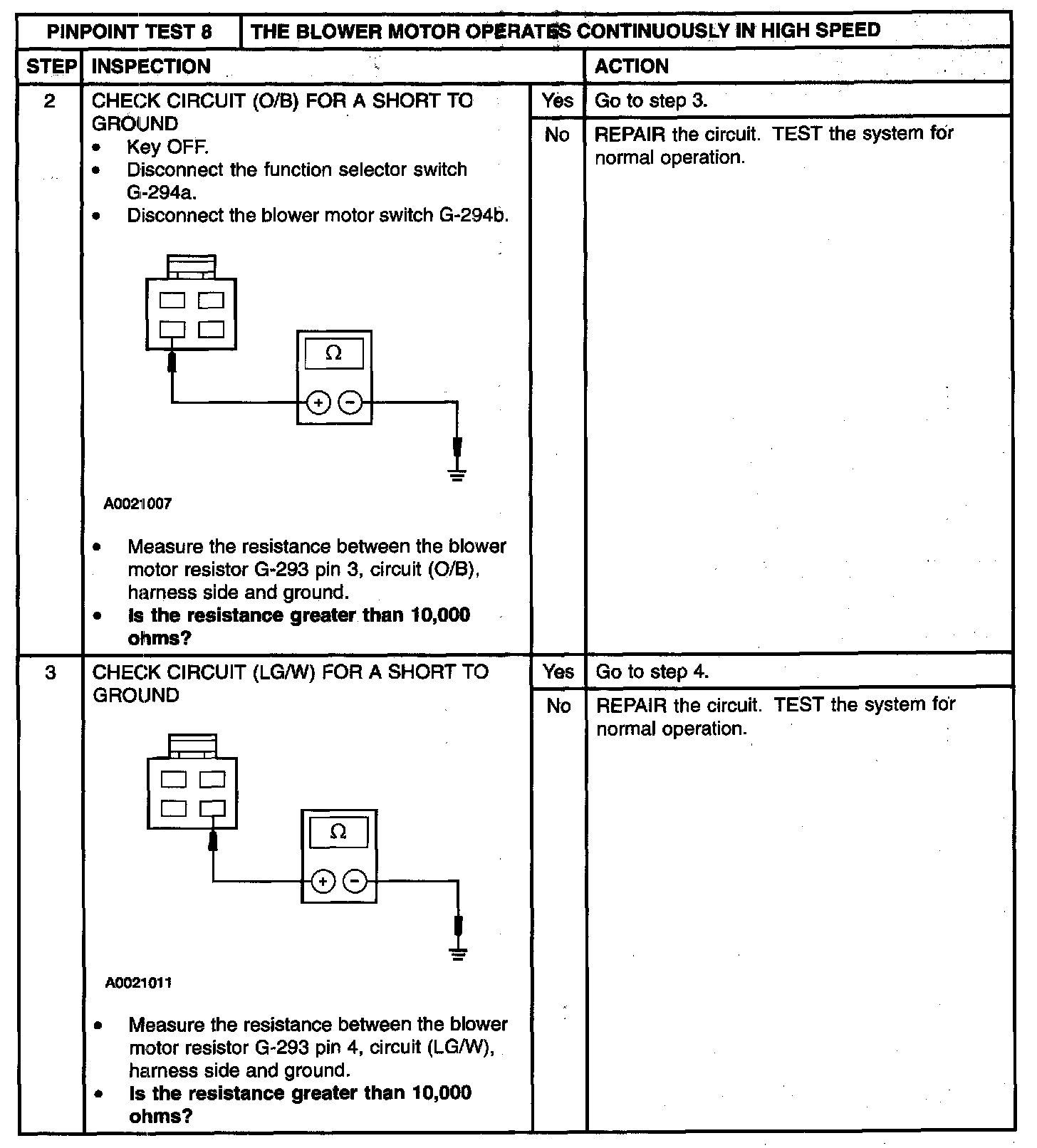

Step 2 - 3:

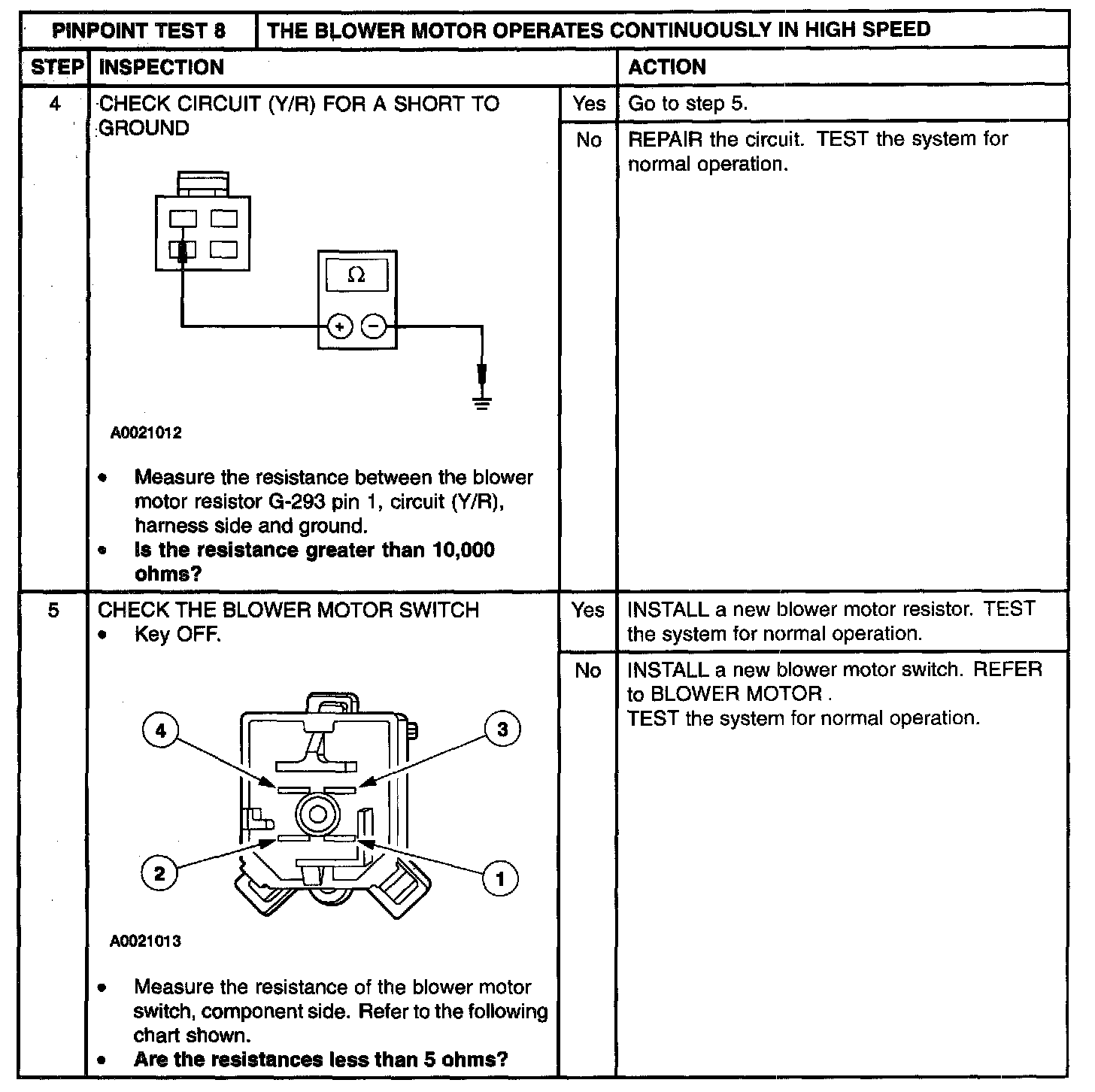

Step 4 - 5:

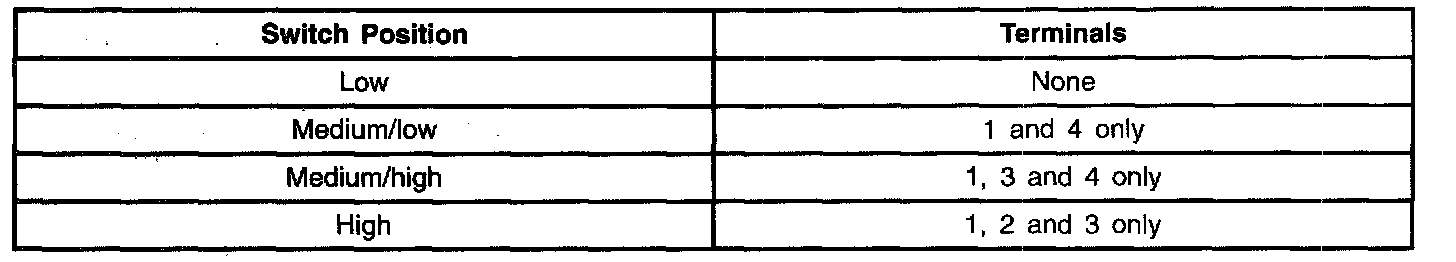

Blower Motor Switch Test:
