Pin Diameter

PISTON PIN DIAMETER

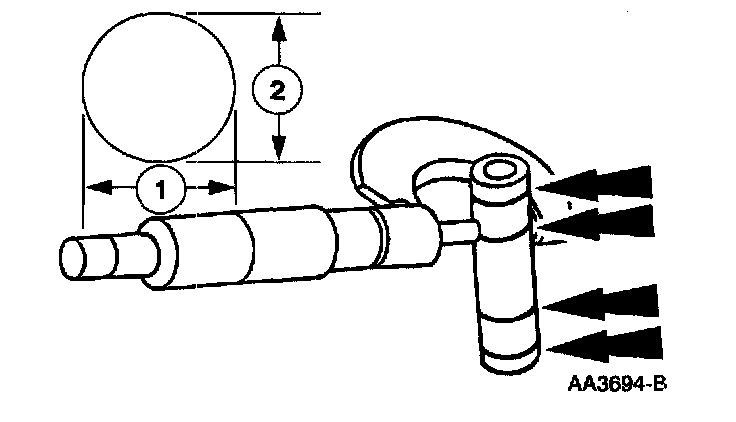

1. Measure the piston pin diameter in two directions at the points shown. Verify the diameter is within specification.

If out of specification, install new components as necessary.
