Oil Pressure Sender: Service and Repair

OIL PRESSURE SENDER

Removal and Installation

1. Raise and support the vehicle.





Note: The halfshaft is removed for clarity.

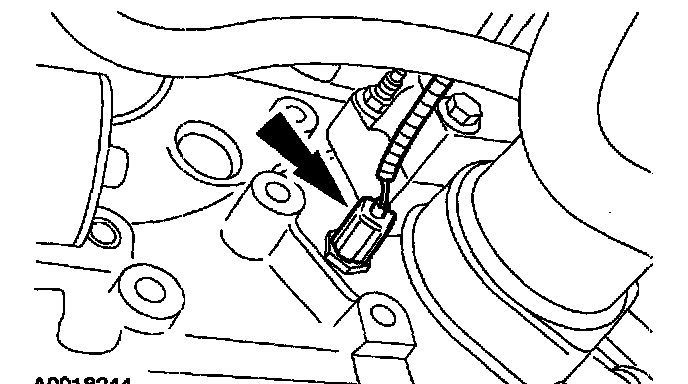

2. Disconnect the oil pressure sender electrical connector.





3. Remove the oil pressure sender.

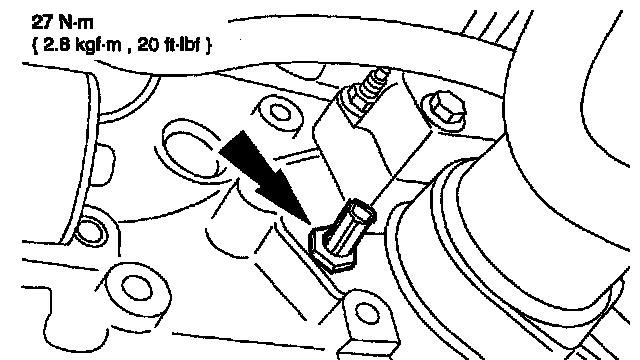

4. To install, reverse the removal procedure.
