Mazda Truck
>>
2002
>>
Tribute DX 2WD L4-2.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Engine
>>
System Diagram
>>

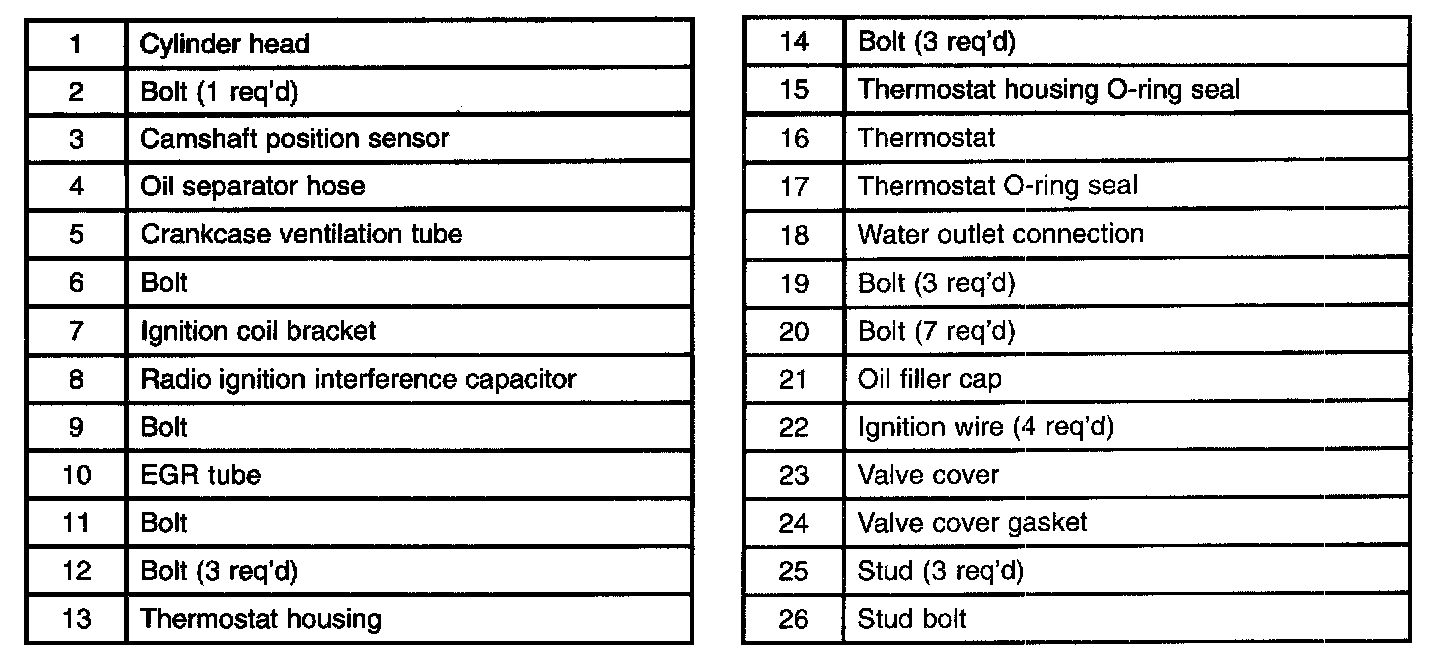

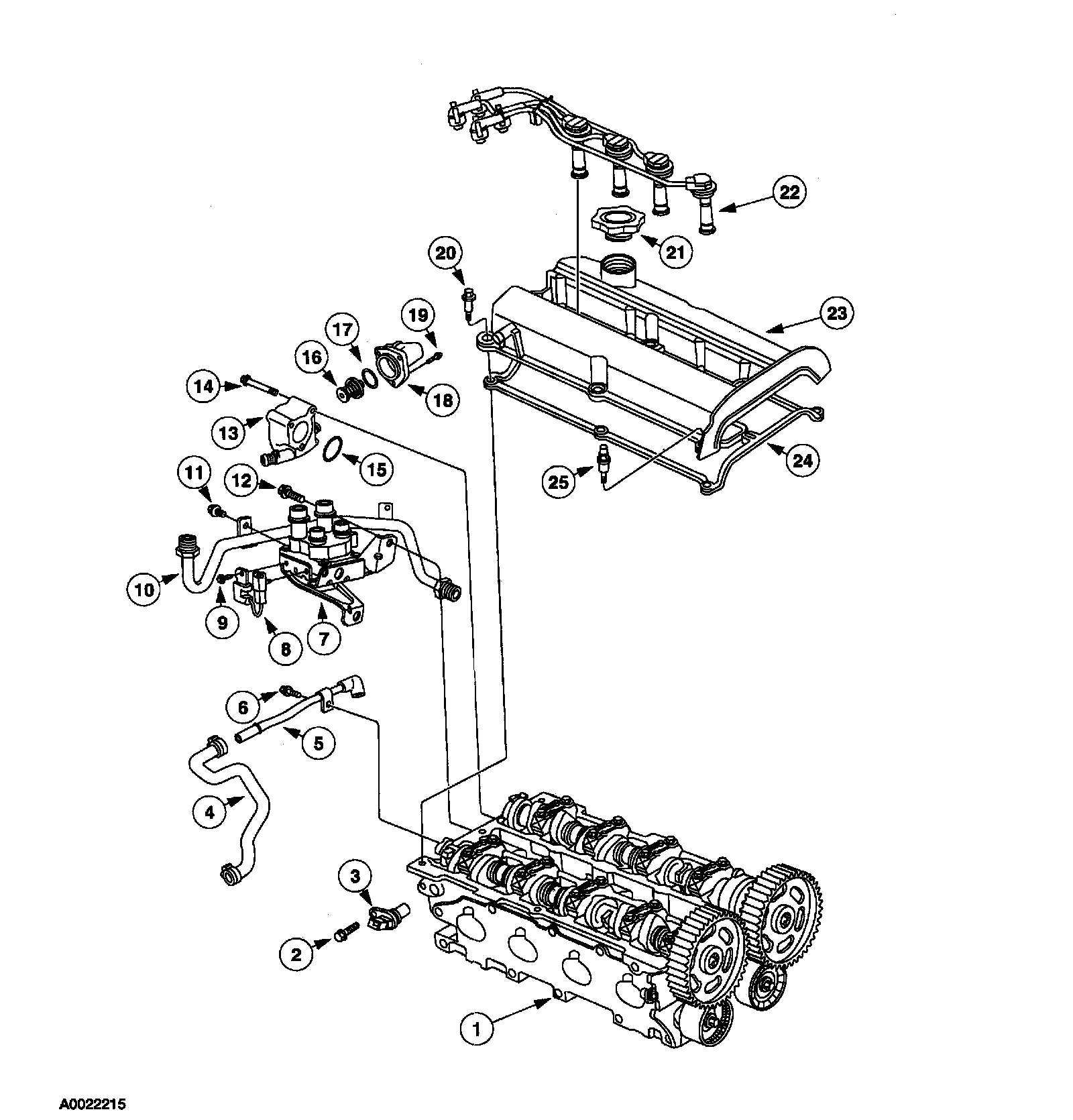

Upper Engine Components
Upper Engine Components
Upper Engine Components
1 of 2
2 of 2
