Trailer Lamps

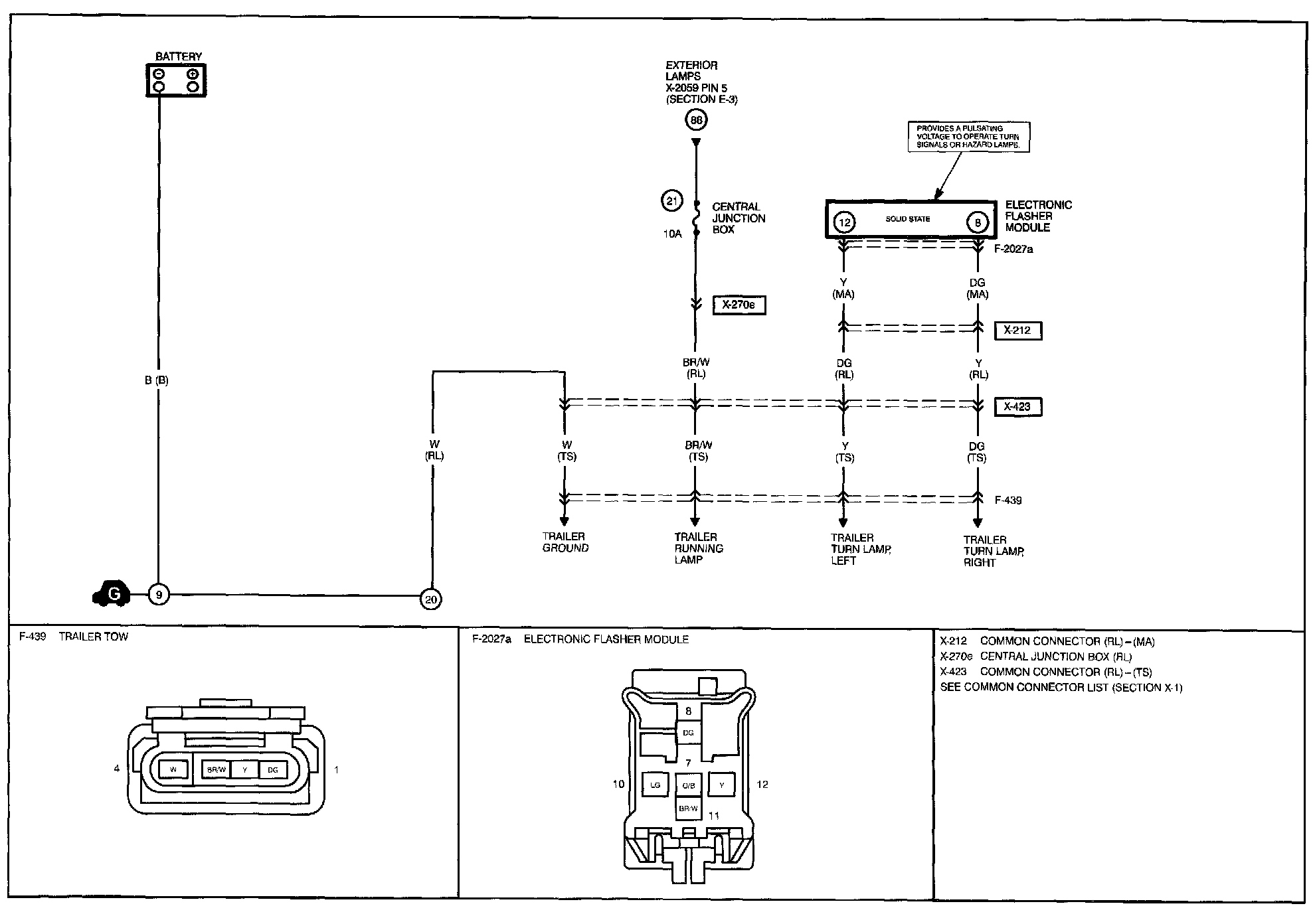

F-3 - Trailer Tow Circuit:

Wiring Diagrams

NOTE: To view other sections referred to in these diagrams, see Complete Body and Chassis Diagrams by Section (A Thru Z) Electrical Diagrams
